Safety Interlock Outlet with Blade Limit Switch

$87.95

Pick Configuration

Thumbnail for Safety Interlock Outlet with Blade Limit Switch Thumbnail for Safety Interlock Outlet with Blade Limit Switch Outlet anatomy Thumbnail for Blade Limit Switch cable specs Thumbnail for Safety Interlock Outlet with Blade Limit Switch electrical connection chart Thumbnail for Safety Interlock Outlet with Blade Limit Switch Mounting Details Thumbnail for Safety Interlock Outlet with Blade Limit Switch Wiring Diagram Thumbnail for Safety Interlock Outlet with Blade Limit Switch Thumbnail for Safety Interlock Outlet with Blade Limit Switch Thumbnail for Safety Interlock Outlet with Blade Limit Switch Thumbnail for Safety Interlock Outlet with Blade Limit Switch Thumbnail for Safety Interlock Outlet with Blade Limit Switch Thumbnail for Safety Interlock Outlet with Blade Limit Switch

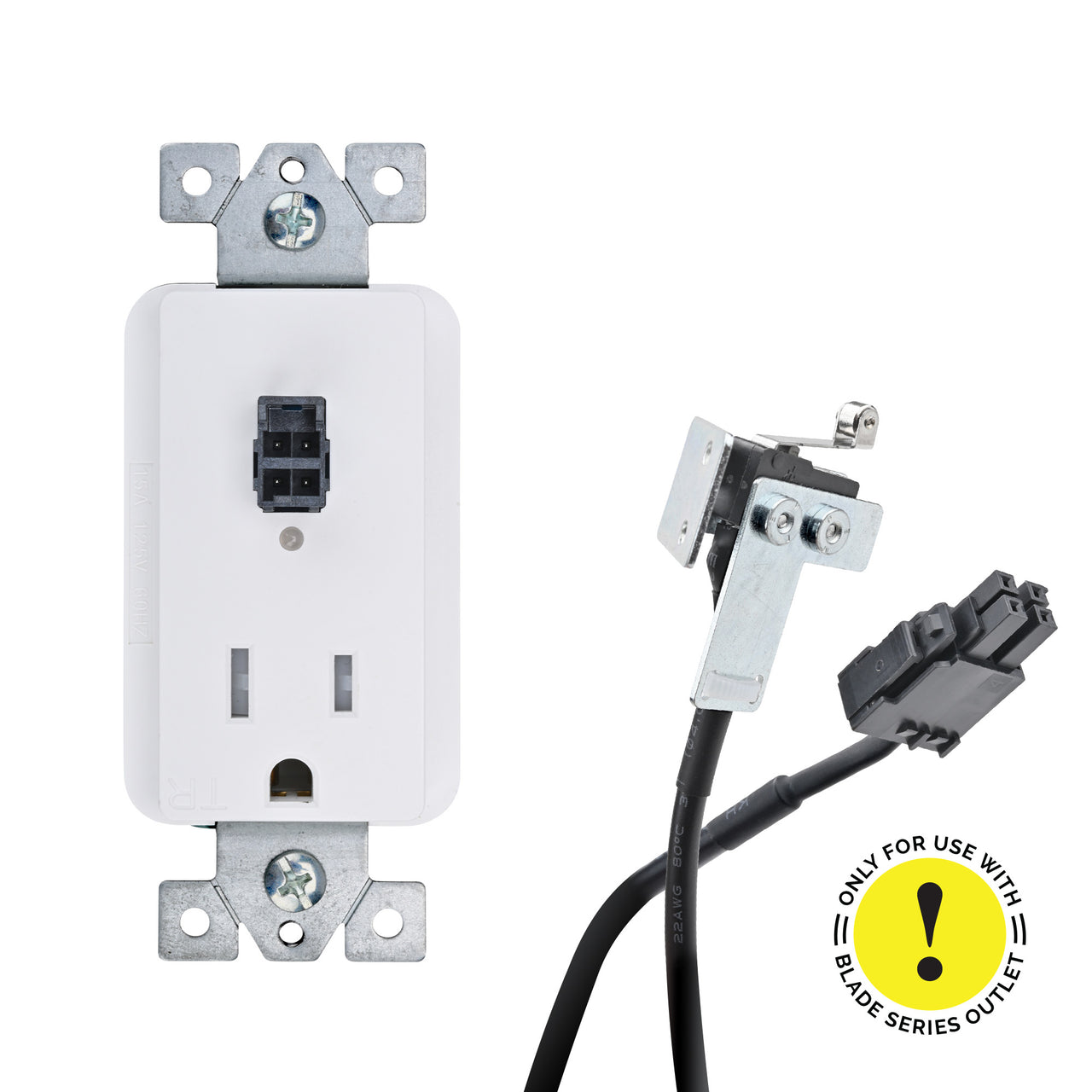

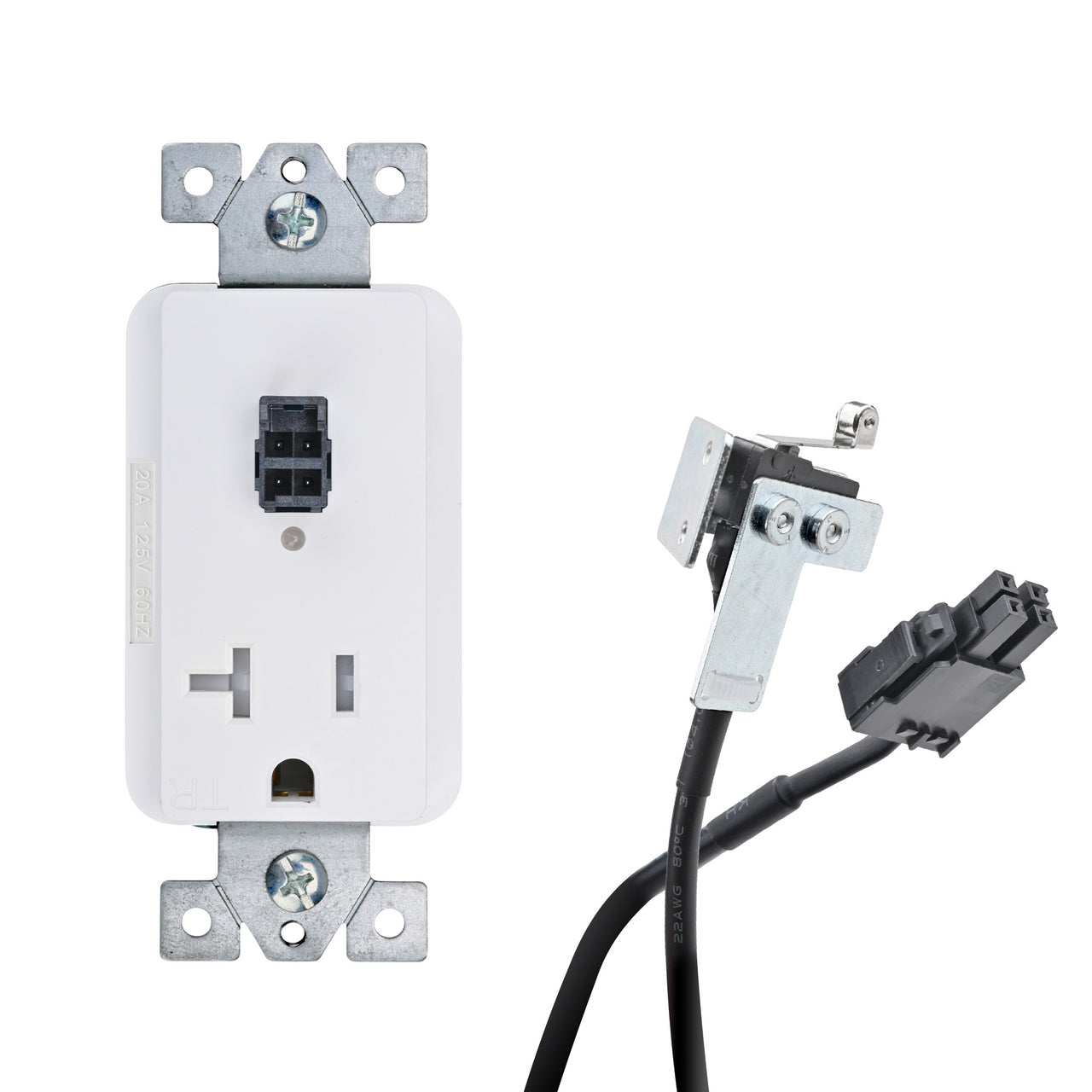

Safety Interlock Outlet with Blade Limit Switch

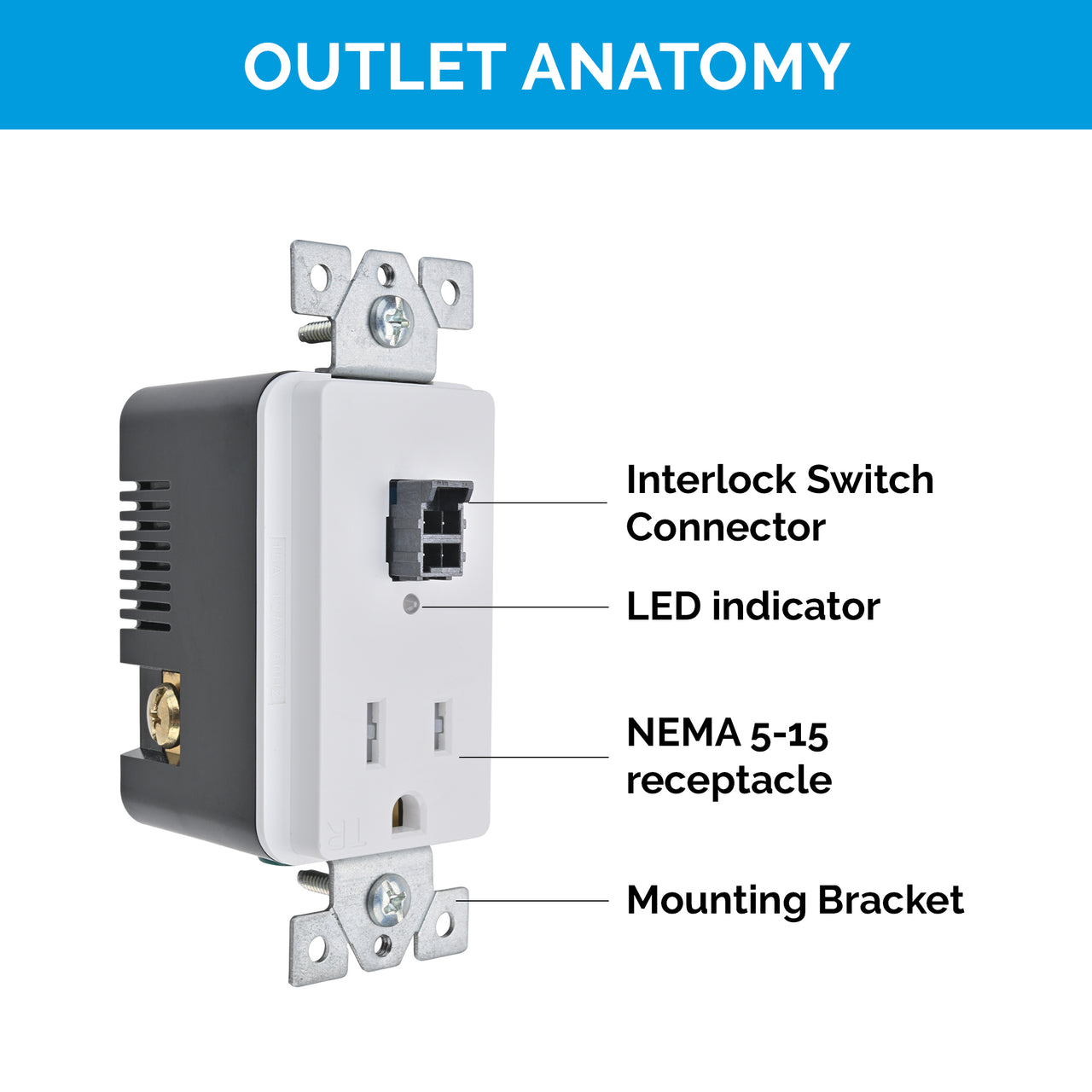

Safety Interlock Outlet with Blade Limit Switch Outlet anatomy

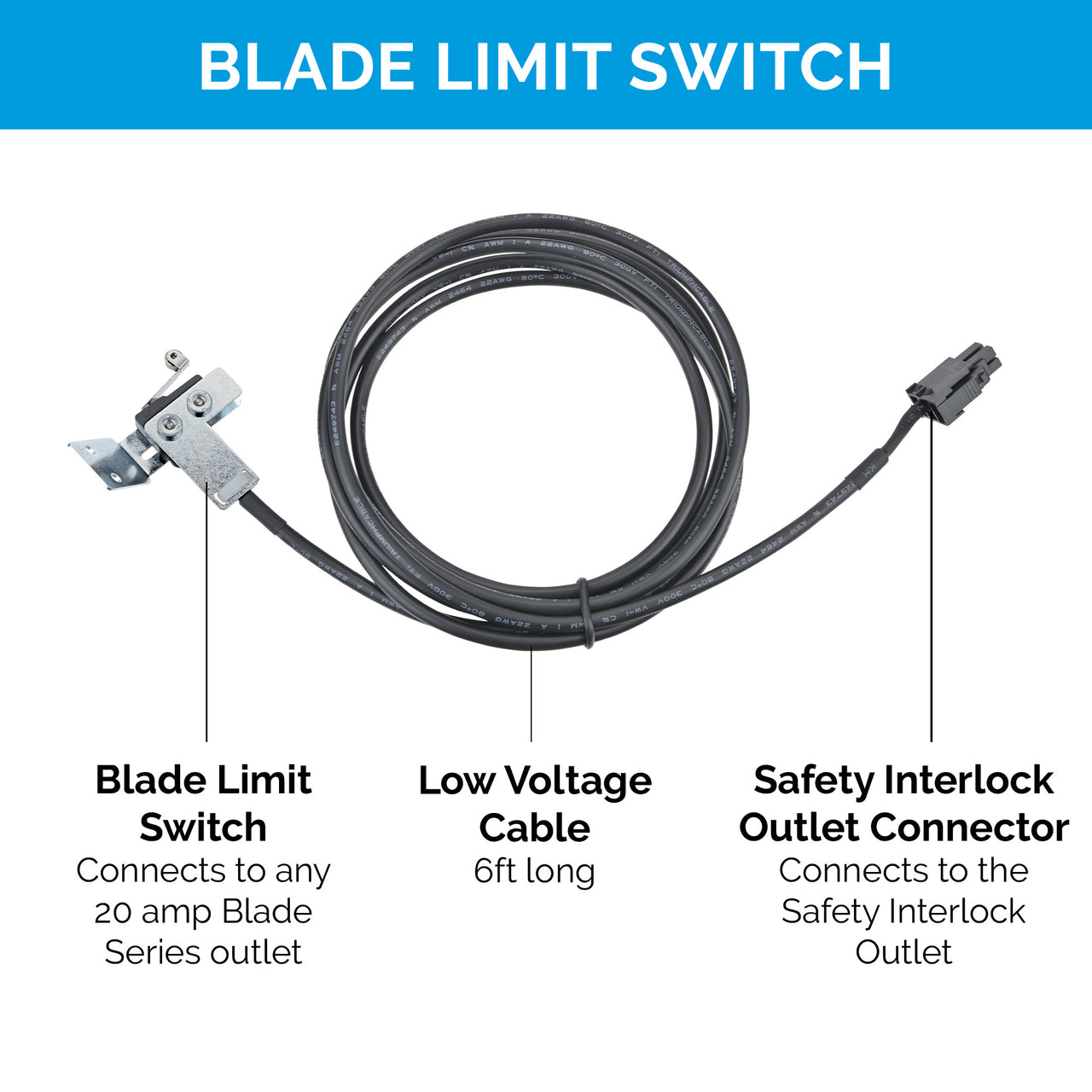

Blade Limit Switch cable specs

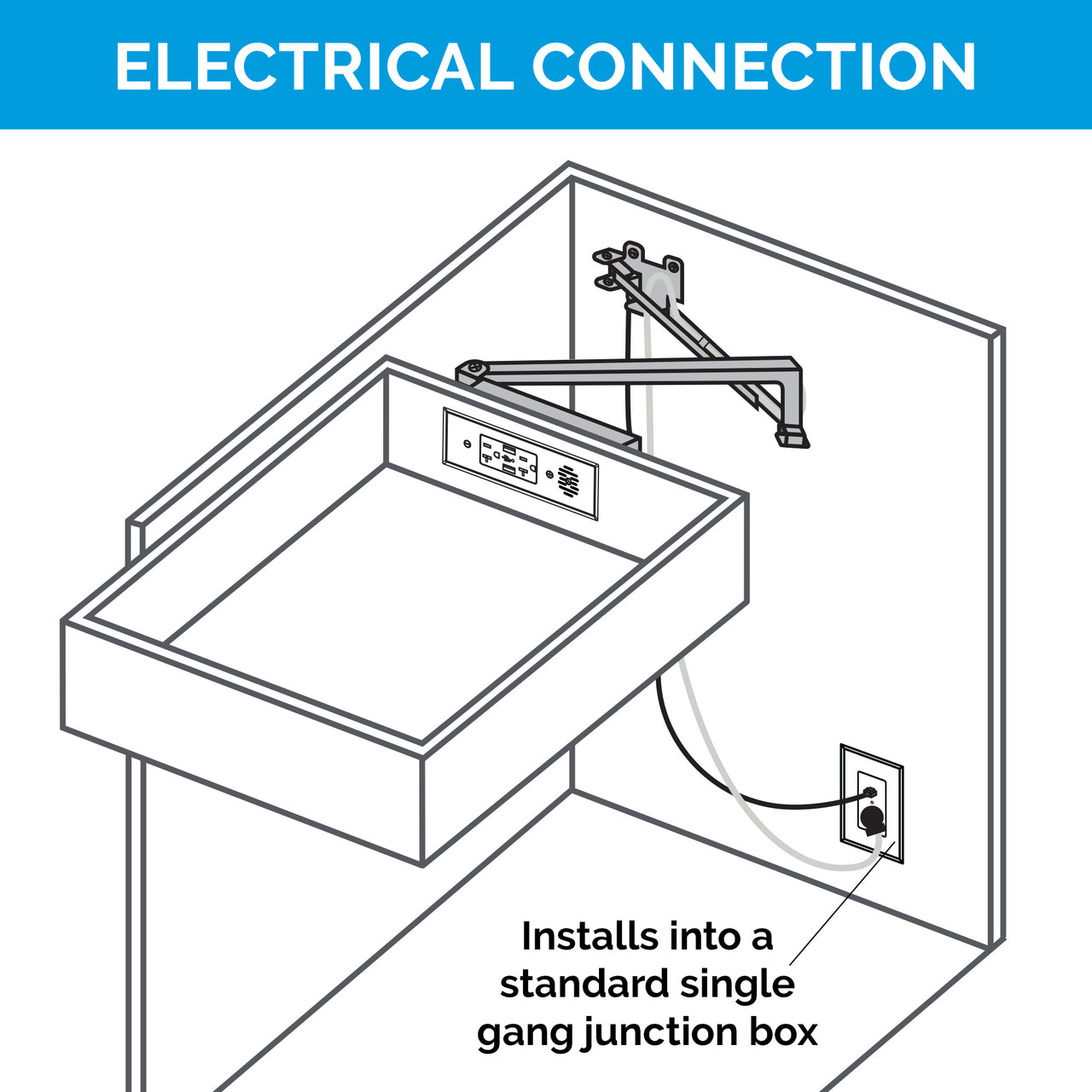

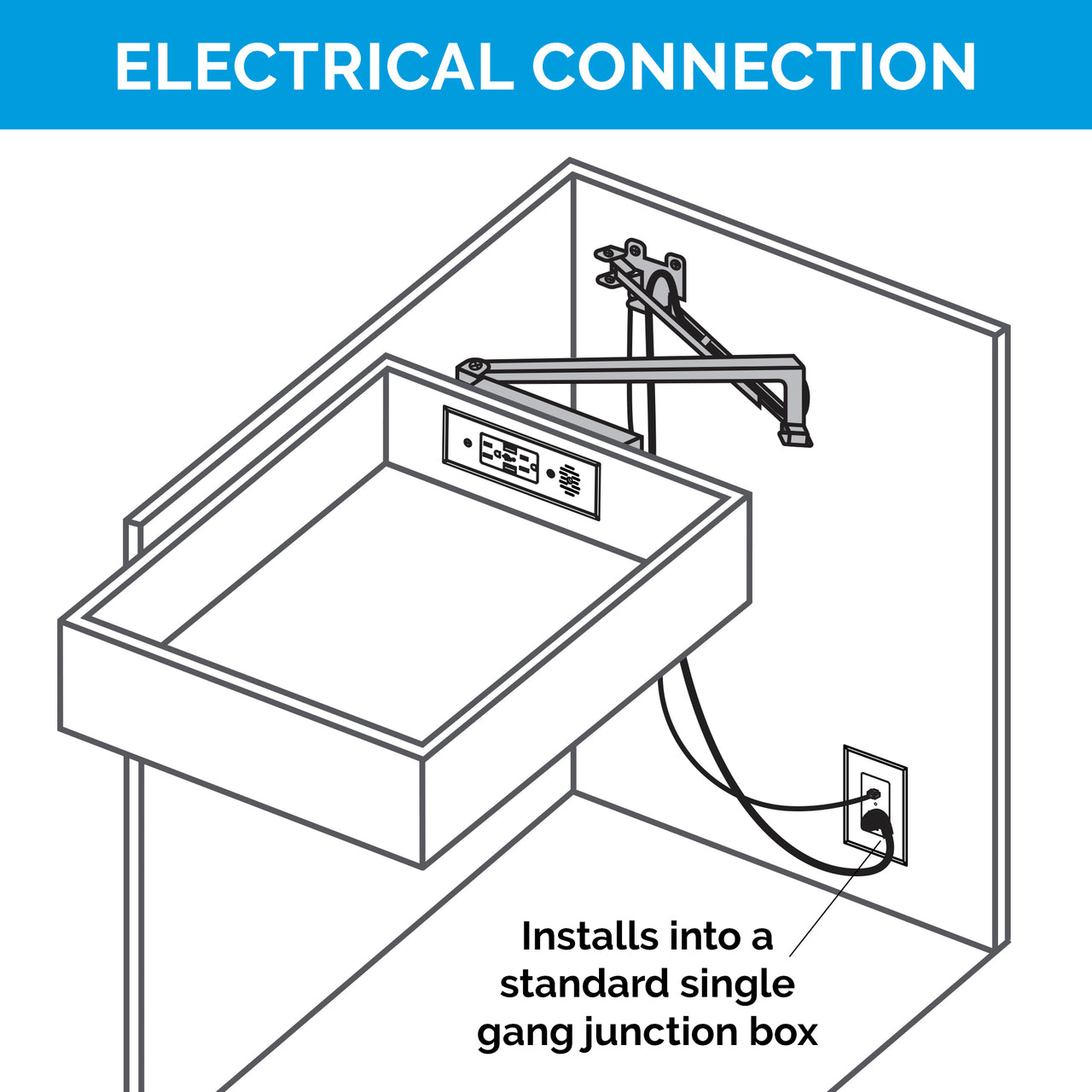

Safety Interlock Outlet with Blade Limit Switch electrical connection chart

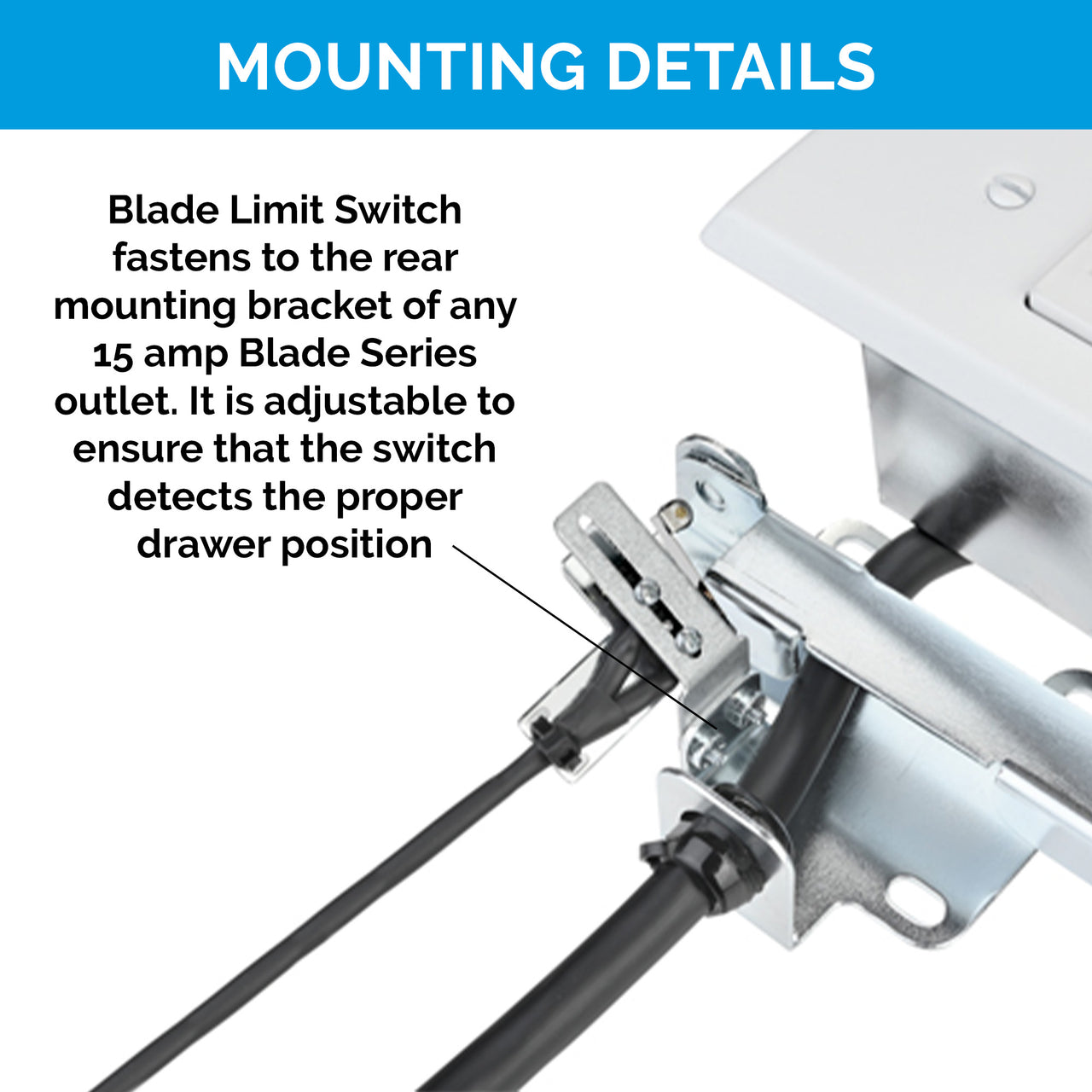

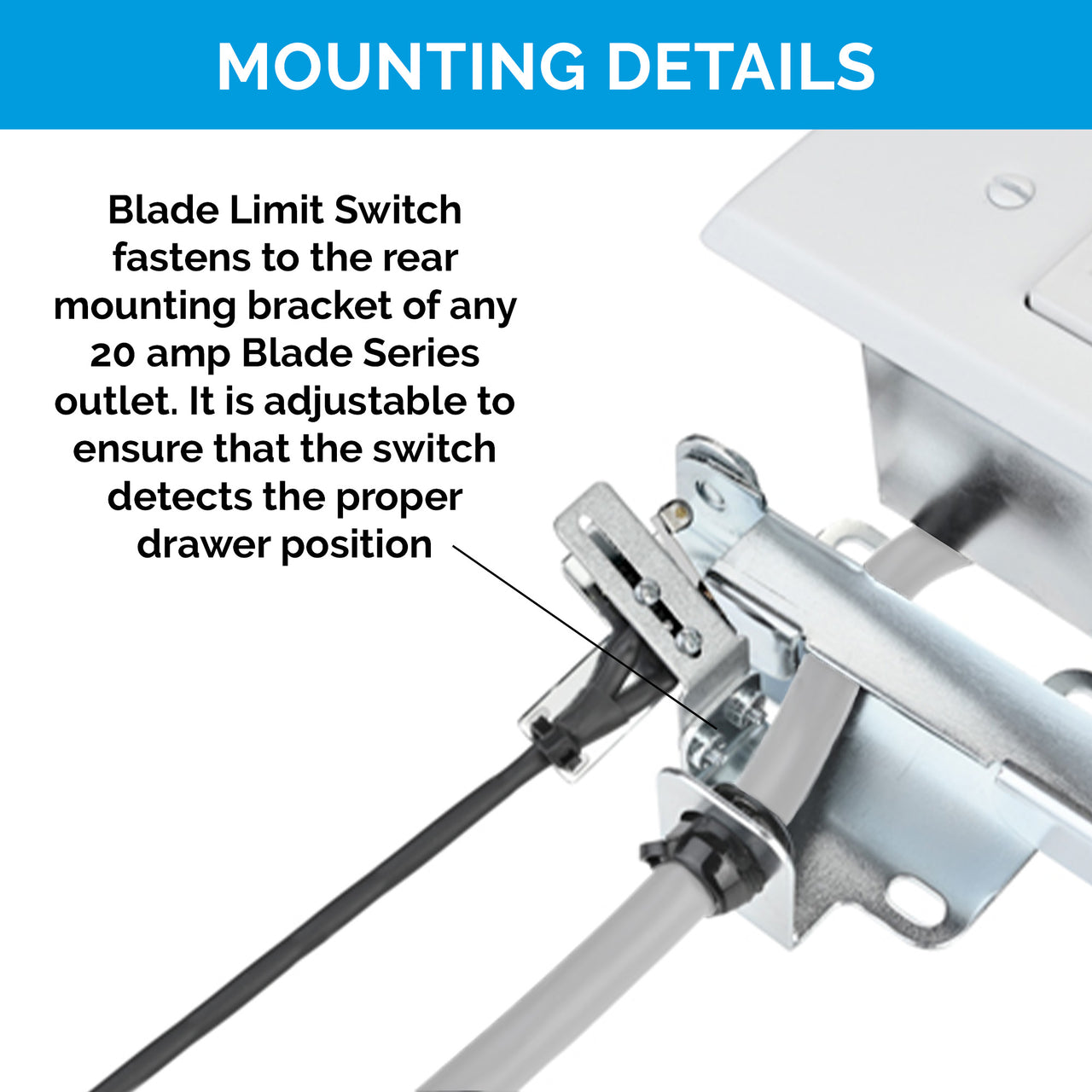

Safety Interlock Outlet with Blade Limit Switch Mounting Details

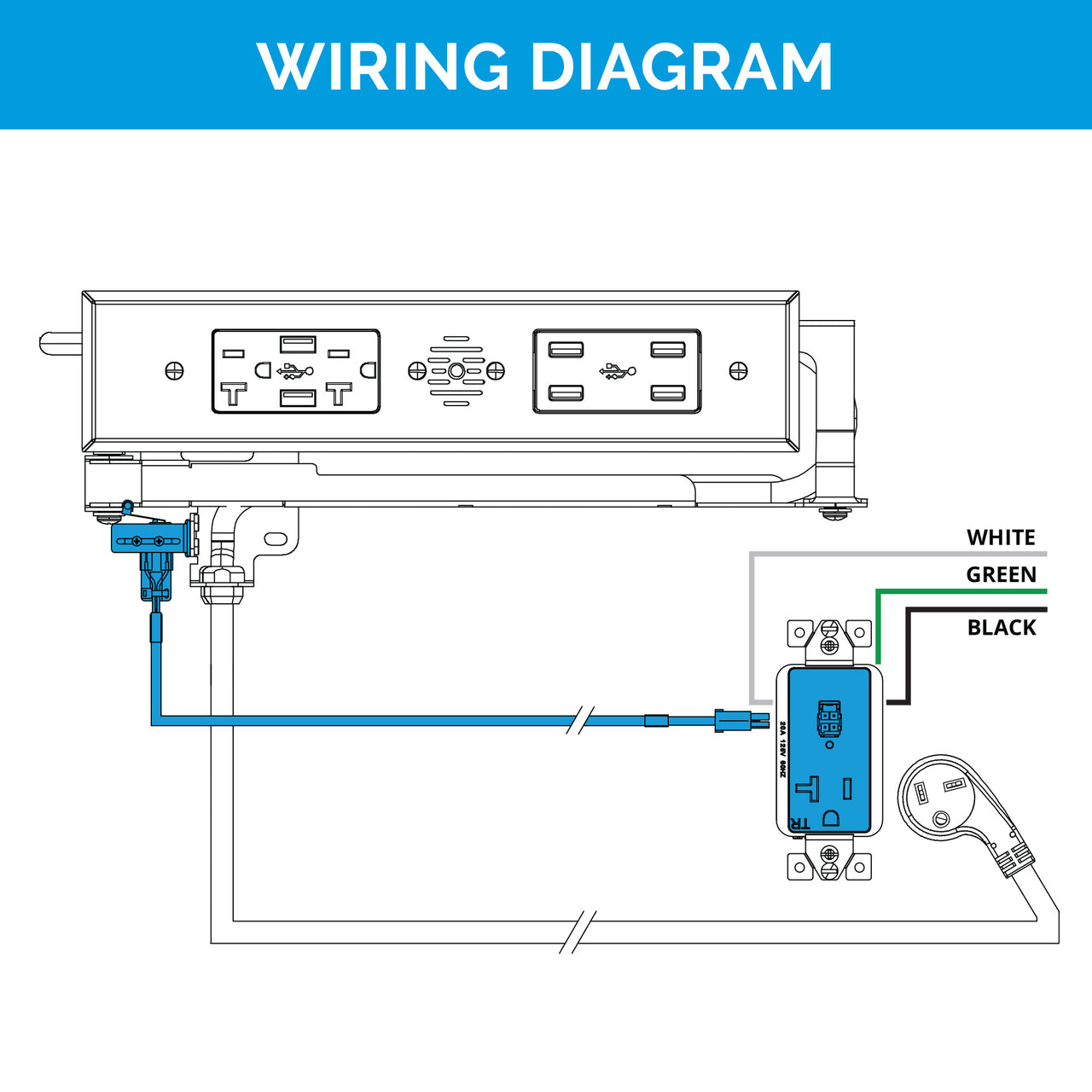

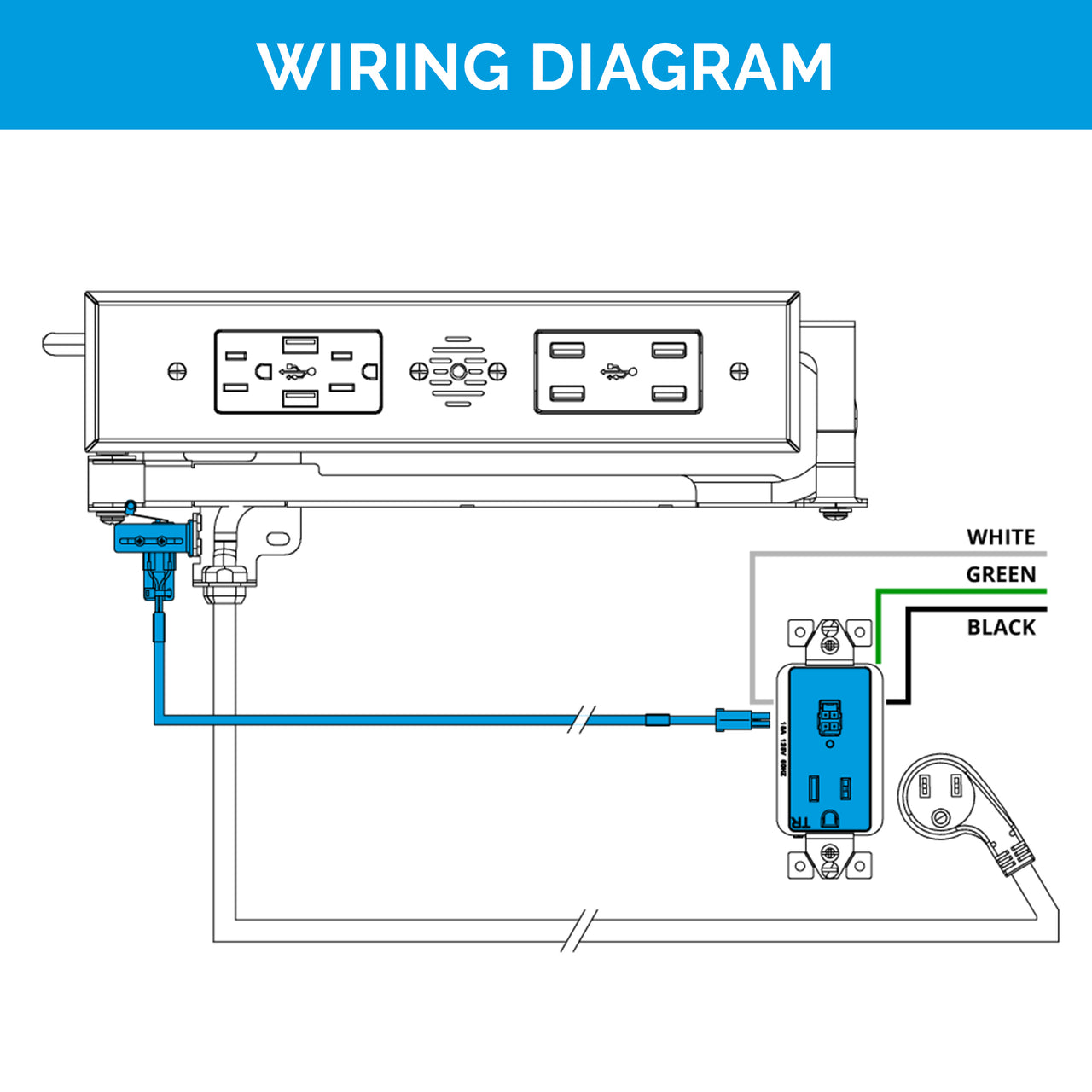

Safety Interlock Outlet with Blade Limit Switch Wiring Diagram
Safety Interlock Outlet with Blade Limit Switch
Safety Interlock Outlet with Blade Limit Switch
Safety Interlock Outlet with Blade Limit Switch
Safety Interlock Outlet with Blade Limit Switch
Safety Interlock Outlet with Blade Limit Switch
Safety Interlock Outlet with Blade Limit Switch

Safety Interlock Outlet with Blade Limit Switch

Rated 4.8 out of 5
Based on 5 reviews
$87.95
SKU: 6020-1000W
Help me Choose

Blade Series Limit Switch mounts to any Docking Drawer Blade Series outlet to detect the drawer position and de-energize the connected Docking Drawer outlet (as well as the Safety Interlock Outlet itself) when the drawer is closed.

*Only for use with Blade Series in-drawer outlets. For appliance garage applications, choose our Corner Mount Limit Switch.

Added Layer of Safety

Every Docking Drawer outlet comes equipped with an integrated safety feature designed to automatically de-energize power whensurrounding temperatures exceed 120°F. In applications where heat-generating connected inside the drawer, such as hot styling tools or toaster ovens, this product offers an additional layer of safety and peace of mind (as well as CEC* compliance in Canada).


Smart Technology

The Blade Limit Switch fastens to the rear mounting bracket of your Blade Series outlet, and when the drawer begins to open, the switch is depressed, turning ON your in-drawer outlet. As the drawer begins to close, the switch is expanded, triggering the Safety Interlock Outlet to de-energize the connected Docking Drawer outlet. The Blade Limit Switch can be adjusted to de-energize the drawer at a preferred position.


Simple to Install

The Safety Interlock Outlet is a single gang electrical outlet featuring one NEMA 5-15 or 5-20 receptacle and one low voltage interlock switch connector. The outlet fits into a standard junction box, so it is quick and easy to install. Installing the Blade Limit Switch onto the rear mounting bracket of the Blade outlet takes just a few minutes, requiring a screwdriver and the included screws to attach and then adjust as needed to allow the the switch to move in and out to the point where it would need to de-energize.


Code Compliant

The system complies with the National Electrical Code (NEC) for the United States as well as the Canadian Electrical Code (CEC)*. It is also ETL Listed for use in both the United States and Canada. Docking Drawer's commitment to safety extends beyond traditional measures with our collection of safety outlets, designed to create safer spaces that are designed to empower modern lifestyles. This advanced, patented safety technology ensures a seamless and secure disconnection of power without the need for manual intervention.

*The Authorities Having Jurisdiction (AHJ) has the final say on whether an installation meets the requirements of the Canadian Electrical Code.

15 amp Outlet Specs

  • Input: 100 - 125 VAC, 50/60 Hz
  • AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
  • DC Output: 24VDC @ 100mA MAX
  • DC Power Supply: IEC Class II
  • Number of Receptacles: (1) NEMA 5-15R
  • Tamper Resistant: Yes
  • LED Indicator: Yes
  • Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
  • Environmental: -10C to +50C, non condensing
  • Warranty: 2 Years

20 amp Outlet Specs

  • Input: 100 - 125 VAC, 50/60 Hz
  • AC Output: 20A@125VAC, 2500 VA MAX, 1/2 HP
  • DC Output: 24VDC @ 100mA MAX
  • DC Power Supply: IEC Class II
  • Number of Receptacles: (1) NEMA 5-20R
  • Tamper Resistant: Yes
  • LED Indicator: Yes
  • Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
  • Environmental: -10C to +50C, non condensing
  • Warranty: 2 Years

Limit Switch Specs

  • Type of Limit Switch: Blade Series Limit Switch
  • Limit Switch Cable: 6 ft low voltage cable
  • Mounting Details: Fastens to the rear mounting bracket of any 15 amp Blade Series outlet
  • Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
  • Warranty: 2 Years
