Legrand Countertop Outlet with Lid
Select Lid Finish
Select Outlet Finish
Choose Configuration
Code-Compliant & Ultra-Safe Kitchen Power

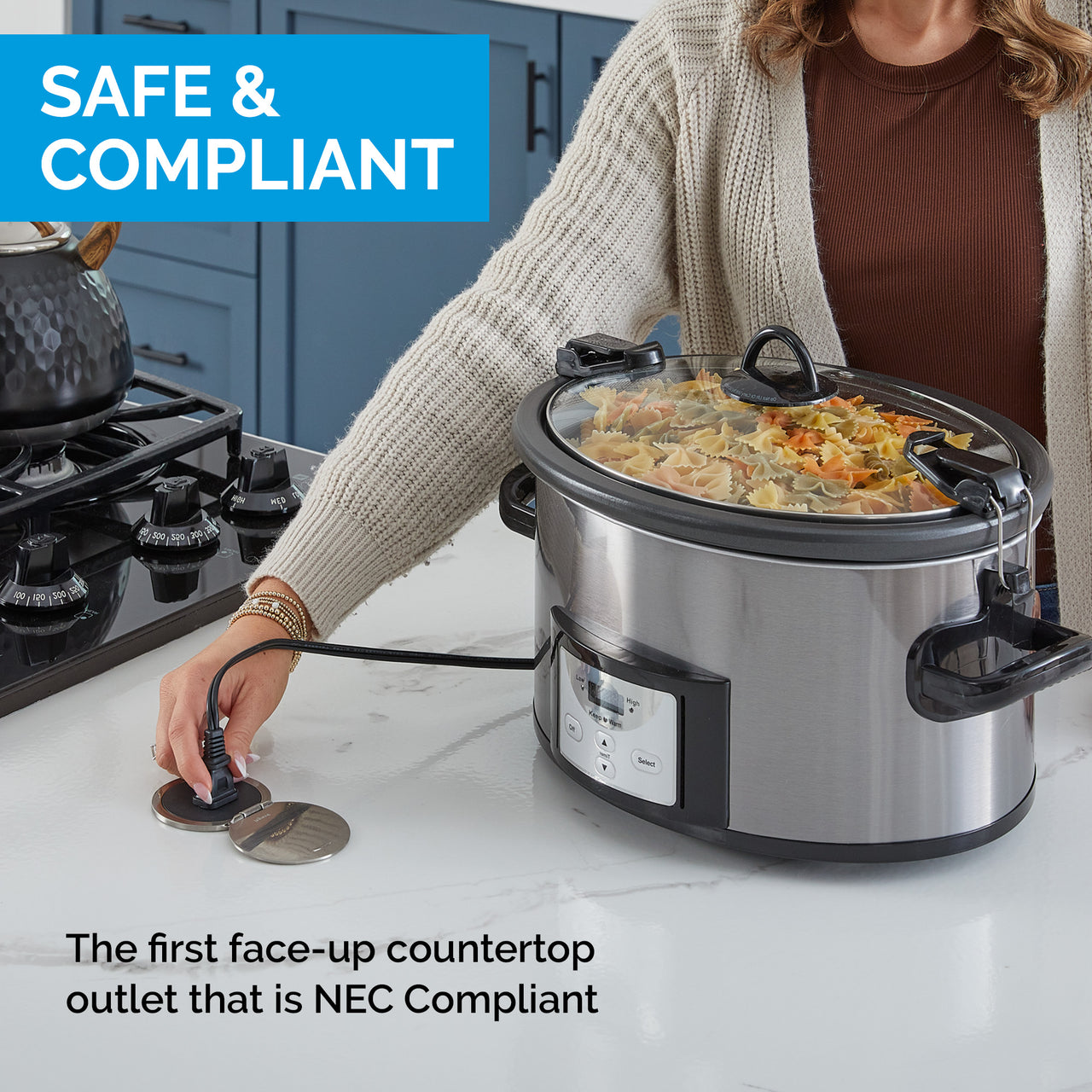

When it comes to powering a kitchen island outlet, safety isn’t just a preference—it’s a requirement. The Legrand Countertop Outlet with Lid is the first upward-facing countertop outlet to pass the rigorous UL 498 half-gallon spill test, making it fully compliant with the 2023 NEC 406.5(E) code. For maximum protection, this waterproof countertop outlet is tamper-resistant and must be installed on a GFCI circuit, offering true peace of mind for modern families.
Sleek, Low-Profile Aesthetic

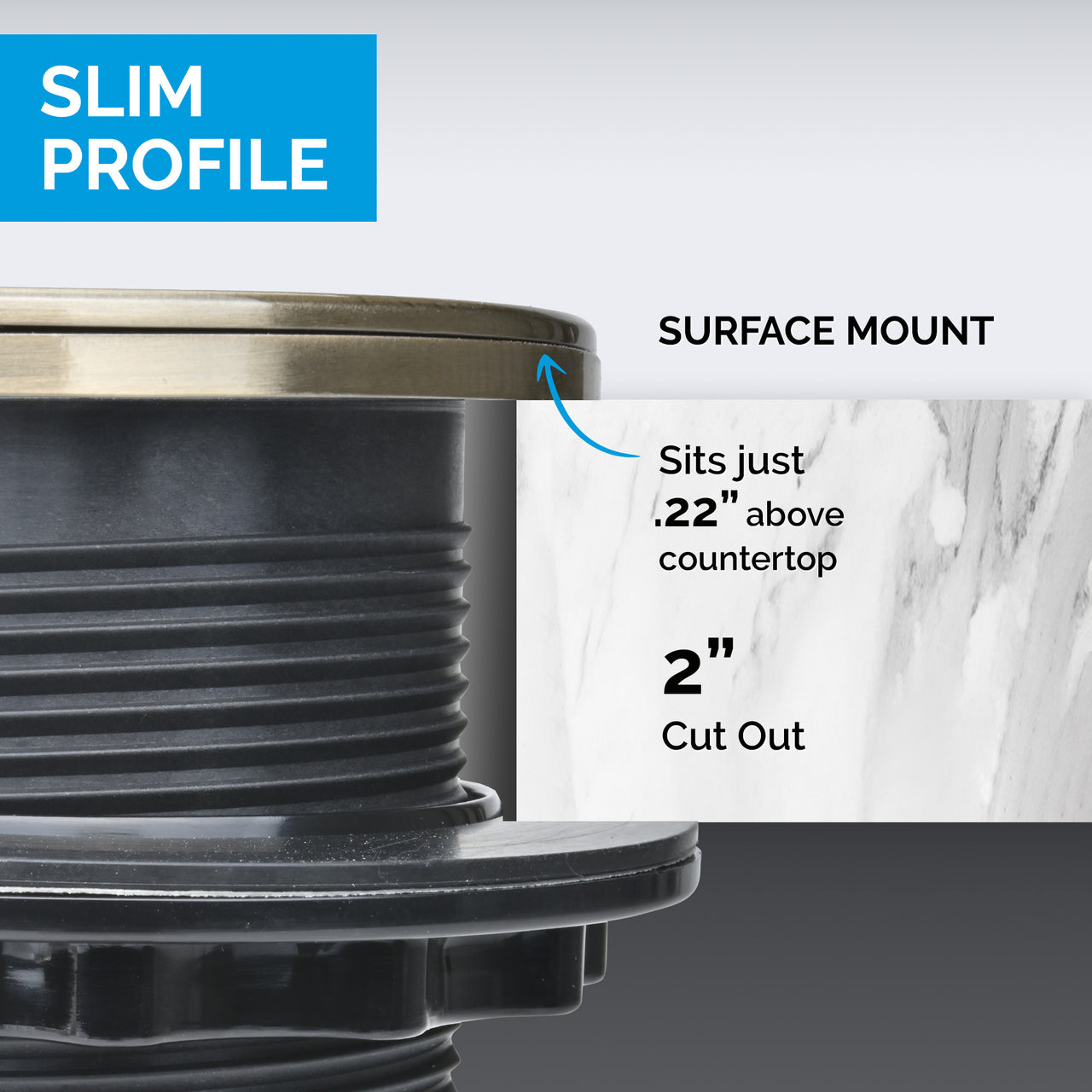

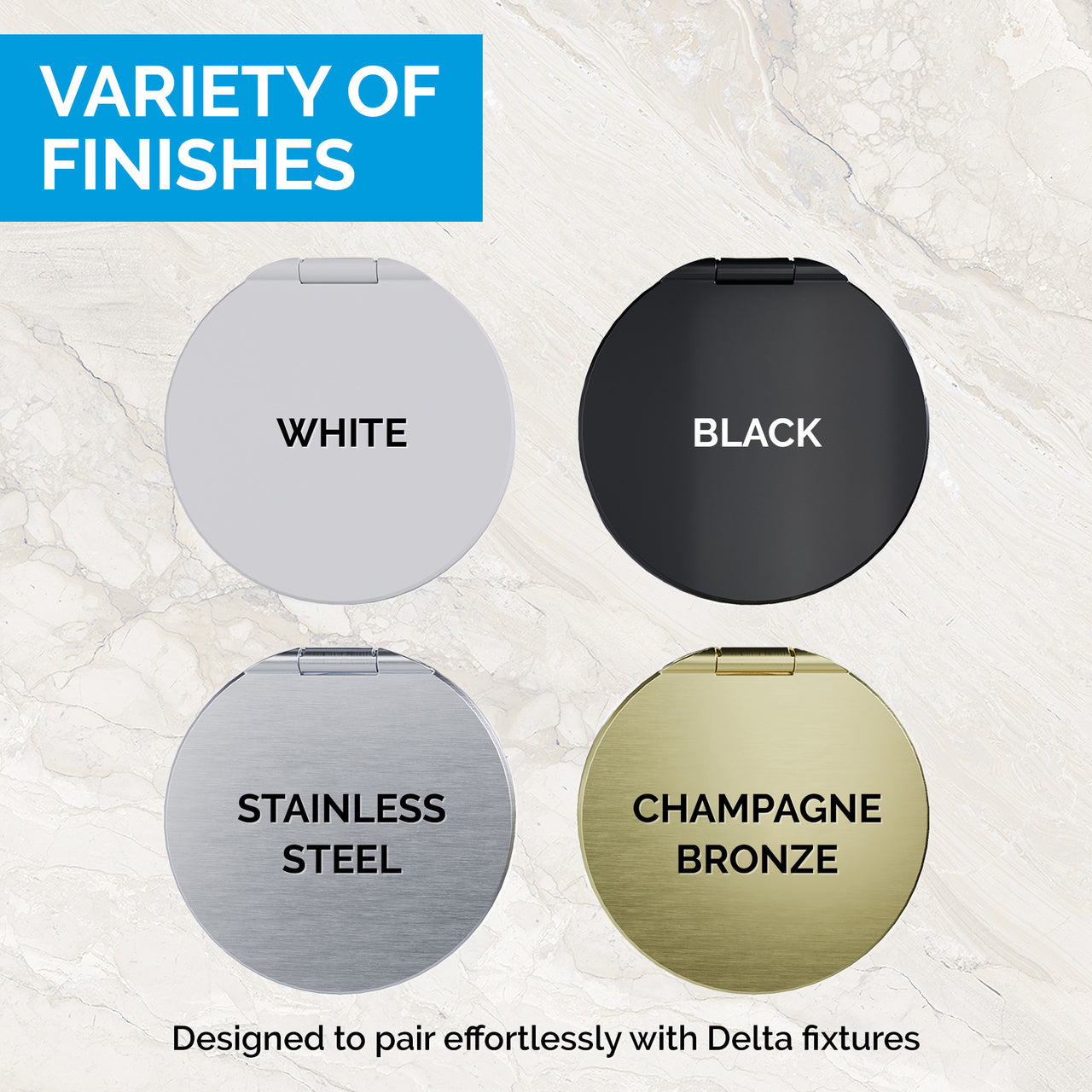

We believe power should be accessible and intentional, not an eyesore. The Countertop Outlet features the industry’s smallest low-profile design and can be surface-mounted for a clutter-free workspace. Available in white and black outlets to blend with any surface, it comes in both 15 amp and 20 amp models to meet any powering need. To truly elevate your design, finish the look with an included lid in white, black, stainless steel, or champagne bronze, which perfectly coordinates with your kitchen hardware and fixtures.
Streamlined & Versatile Installation

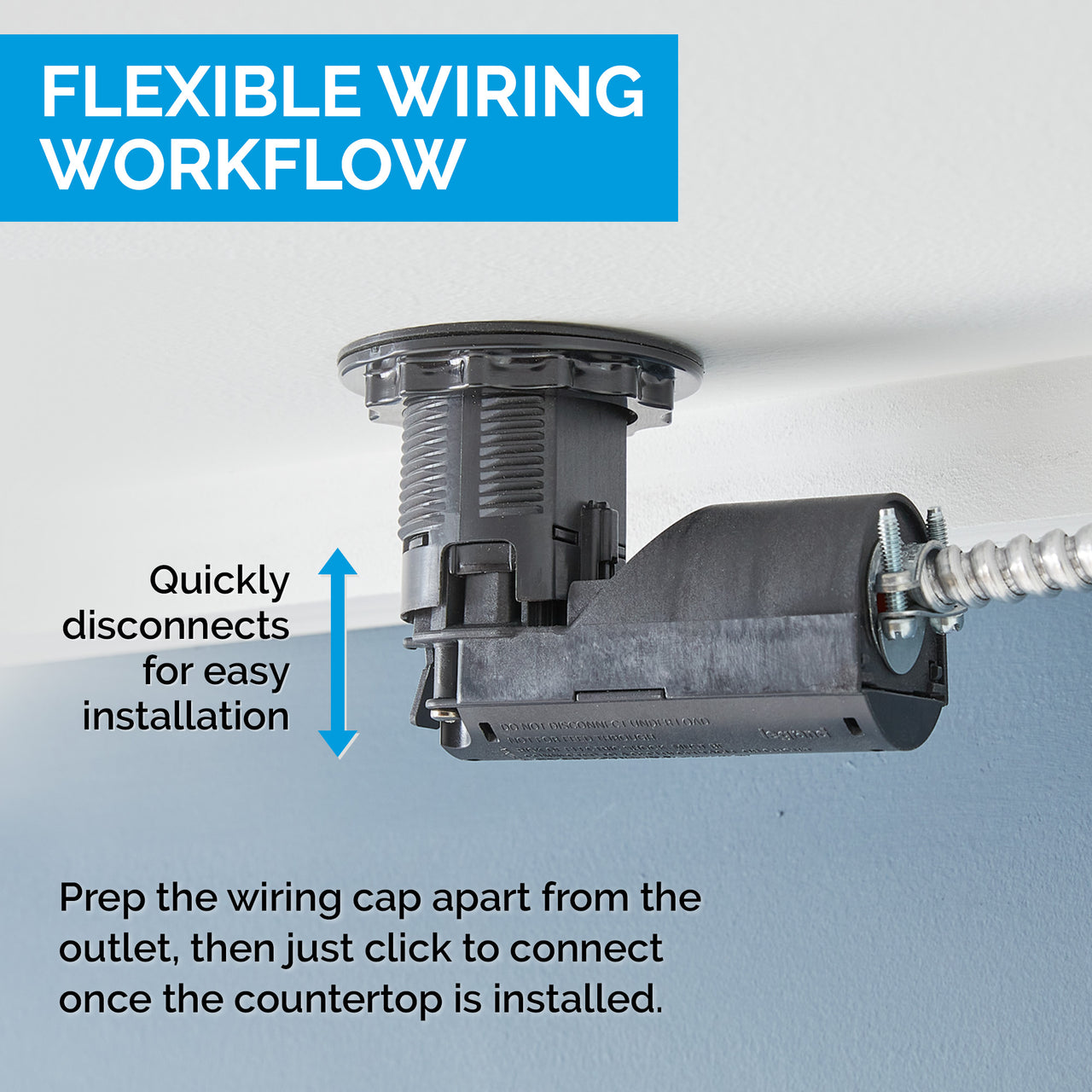

Efficiency is at our core, which is why we’ve simplified the installation process for pros and DIYers alike. The Legrand Countertop Outlet with Lid features a quick-connect, self-contained junction box that lets you complete your hardwiring comfortably above the counter before snapping the pieces into place. This kitchen island outlet fits a standard 2.25-inch cutout and secures simply with a hand-turn locking nut—no specialized tools required—making it a flexible solution for both high-end retrofits and new builds.
Durable Engineering for High-Traffic Zones
The kitchen is a high-performance environment, and your power solutions should be too. Because you can install it anywhere in a kitchen, this outlet is constructed with heavy-duty, chemical-resistant materials that stand up to daily wear and tear. Unlike motorized towers, this fixed design provides reliable power without the mechanical failure points. The superior water resistance and smooth, seamless surface make it effortless to wipe away spills and splashes, keeping your countertops looking pristine and professional.

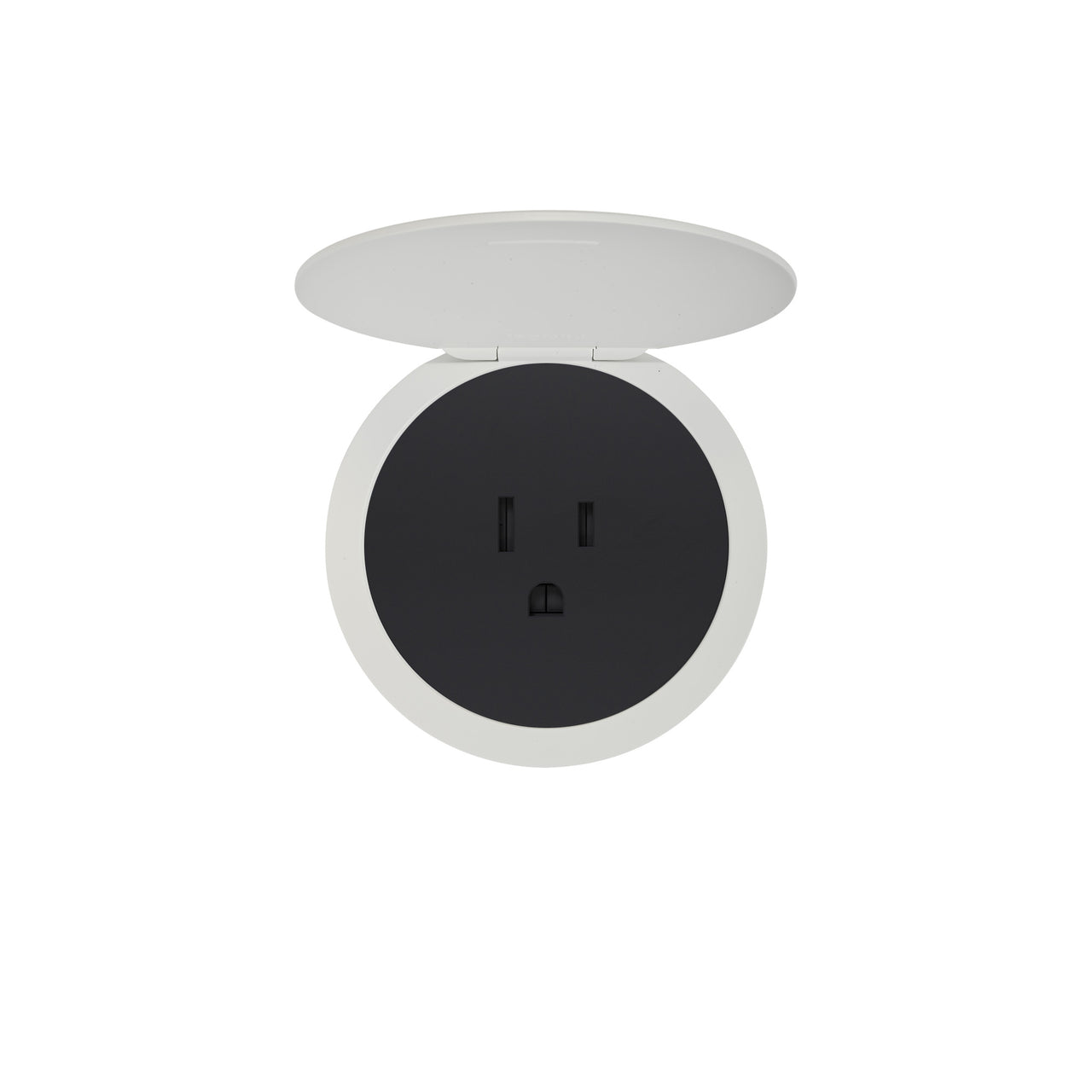

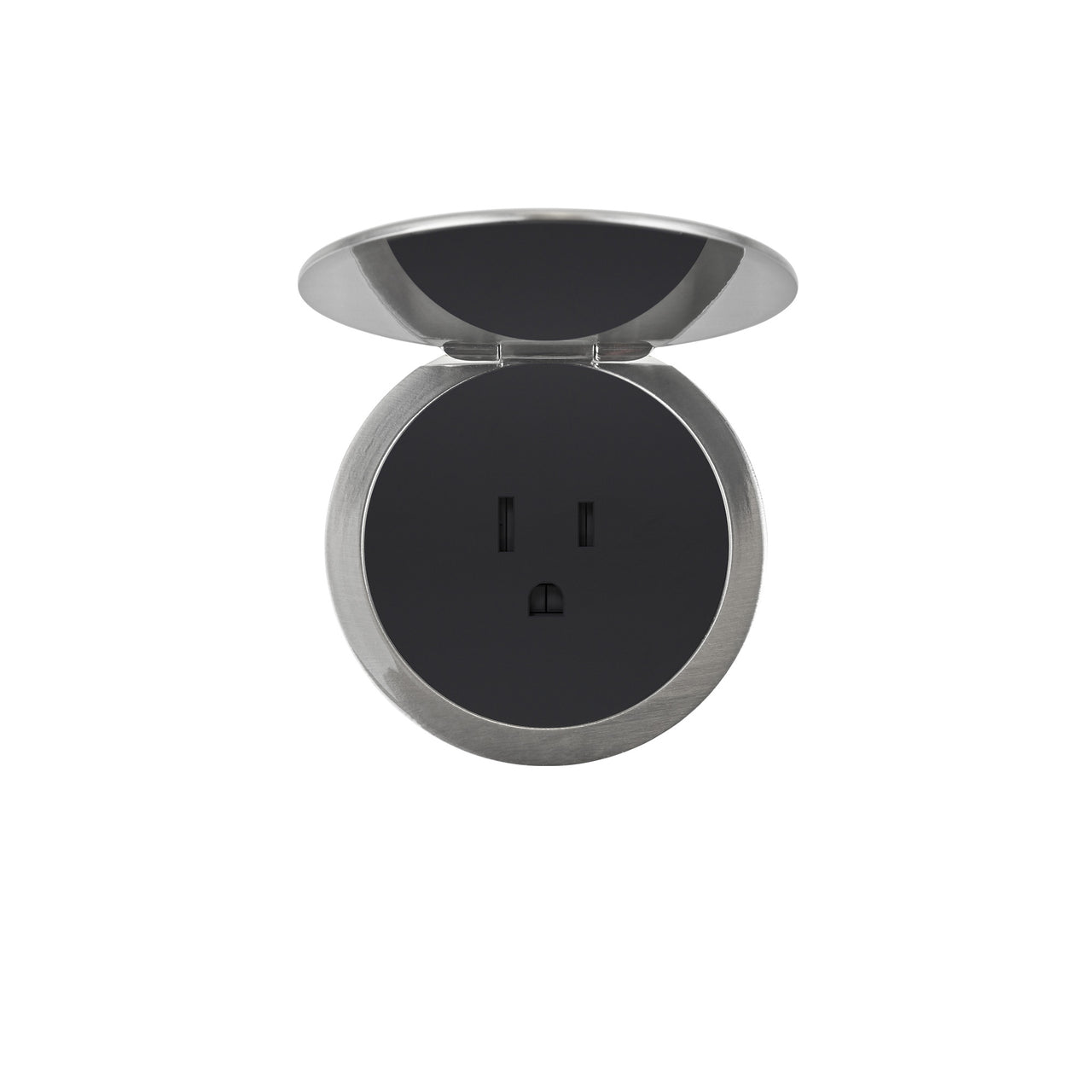

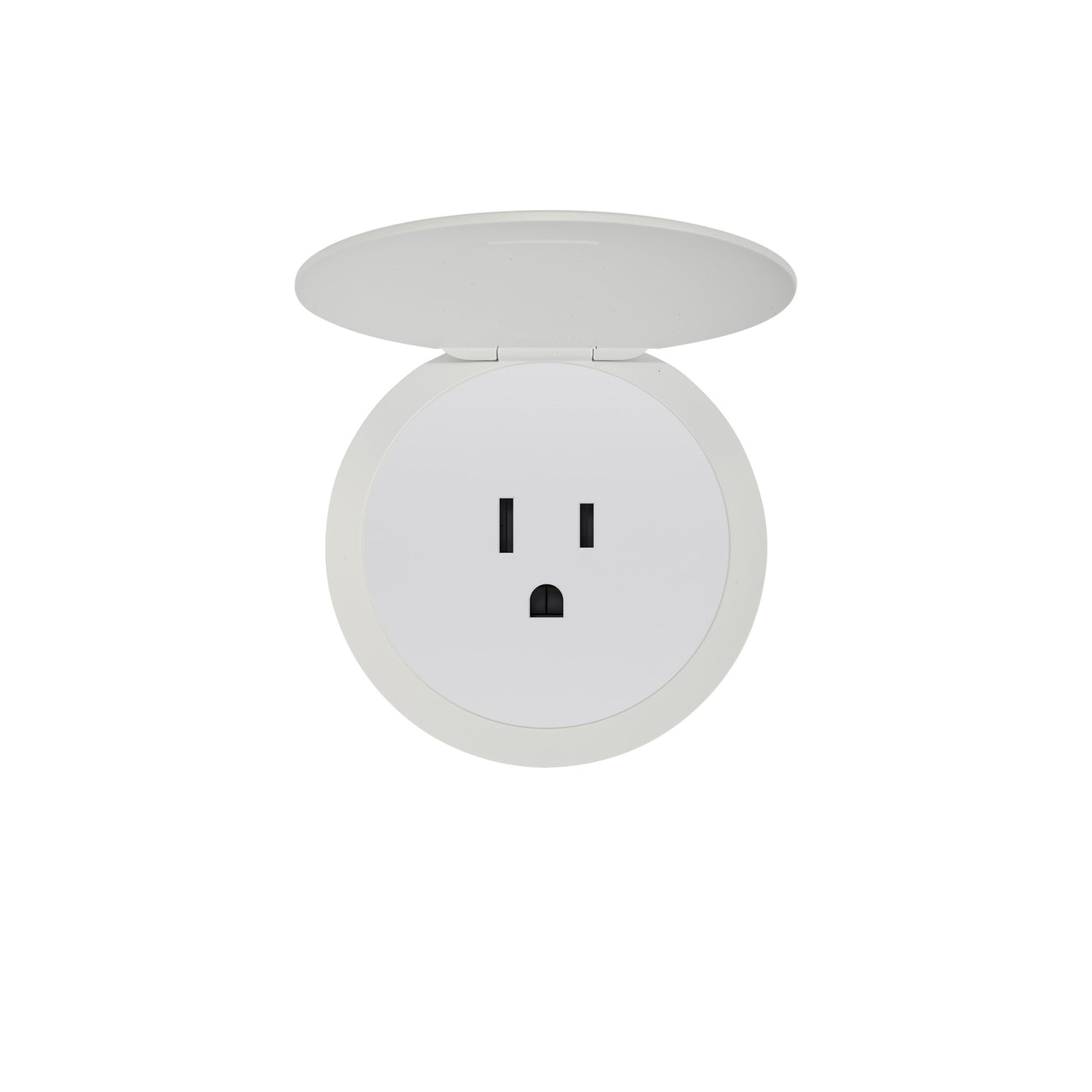

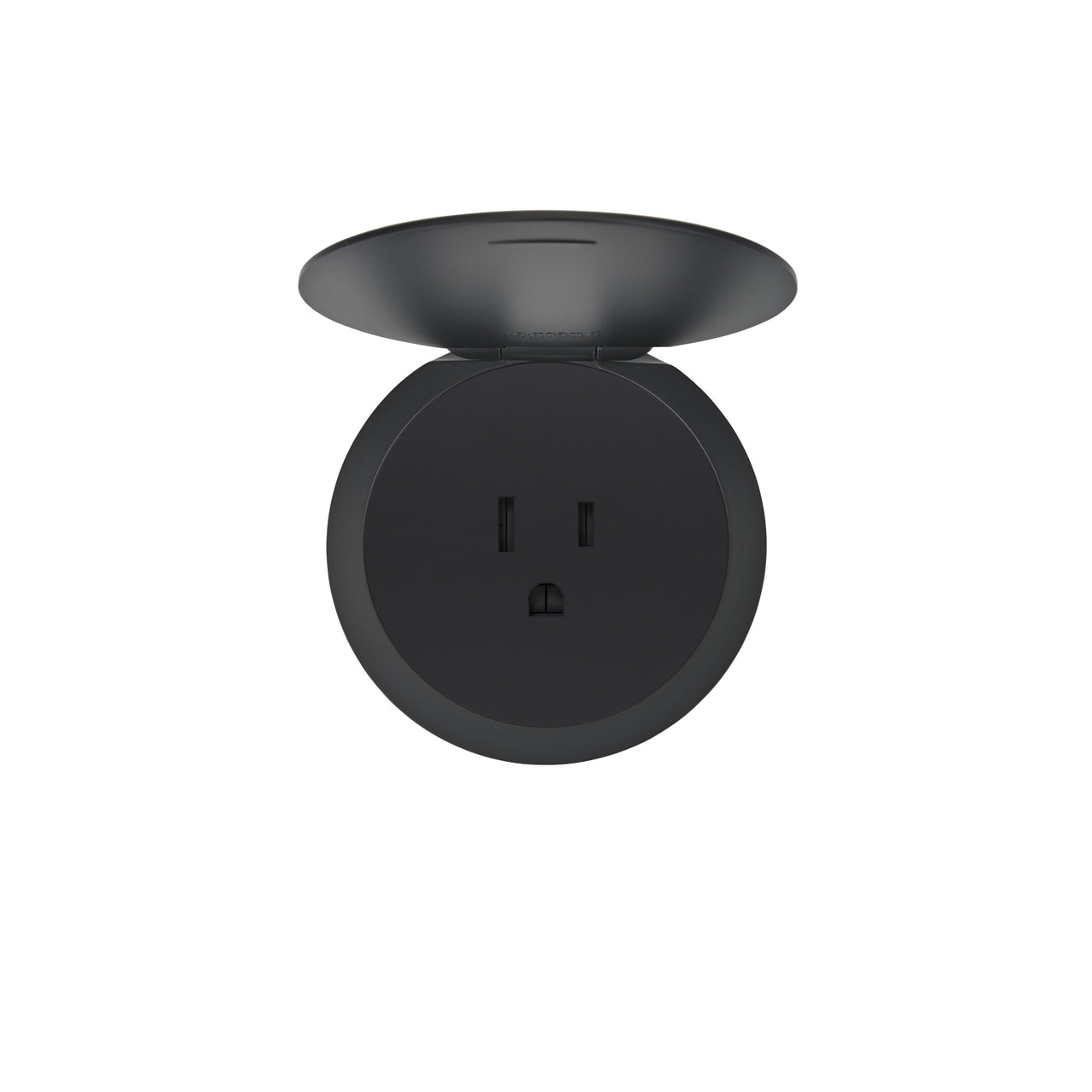

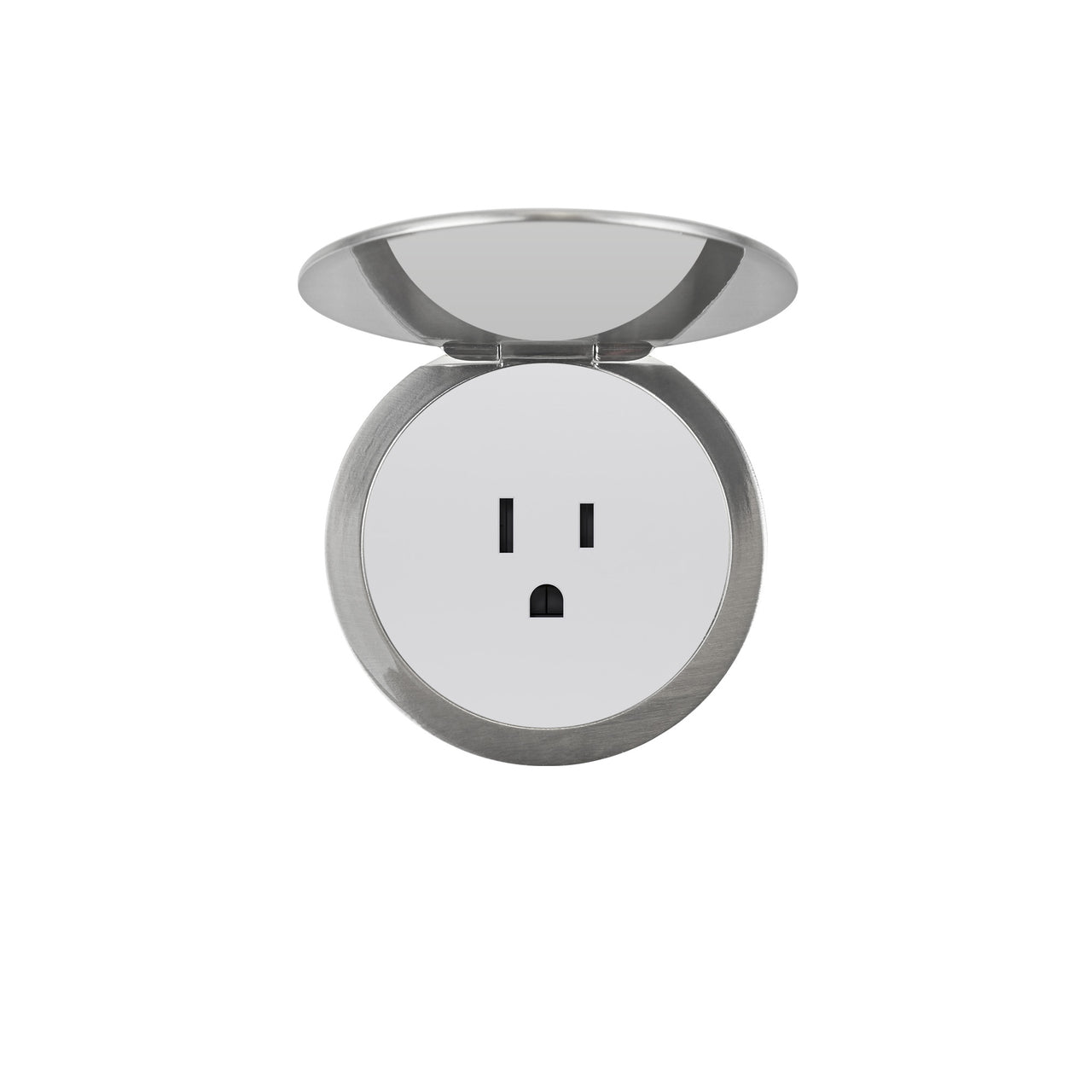

15 amp Legrand Countertop Outlet Specs
Outlet Dimensions
- Top Diameter: 2.29” [58.2mm]
- Top Thickness: .07” [1.65mm]
- Available Space for Countertop: 0.5 - 1.6"
- Locking Nut Diameter: 2.91" [73.8mm]
- Total Height: 3.65” [92.6mm]
- Total Length: 4.74” [120.5mm]
Electrical Specs
- Outlet Configuration: 1 AC
- AC Current / Amperage Rating: 15 amp
- AC Voltage Rating: 125V
- NEMA Configuration: 5-15R
- Tamper Resistant: Yes
- Wire Size: #14 – #10 AWG
- Connection Type: Back Wired (Screw Terminals on Tail)
- 1-Year Limited Warranty

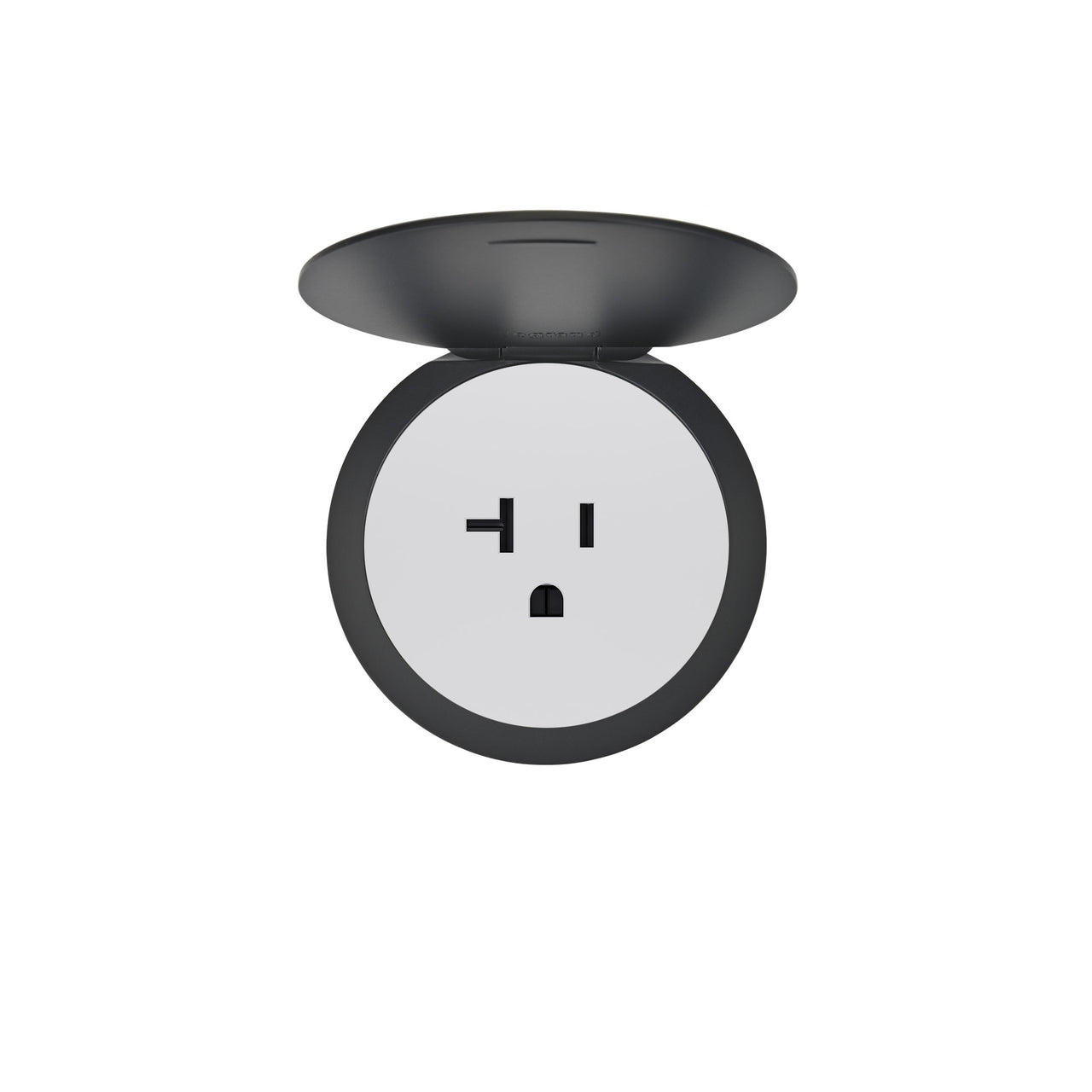

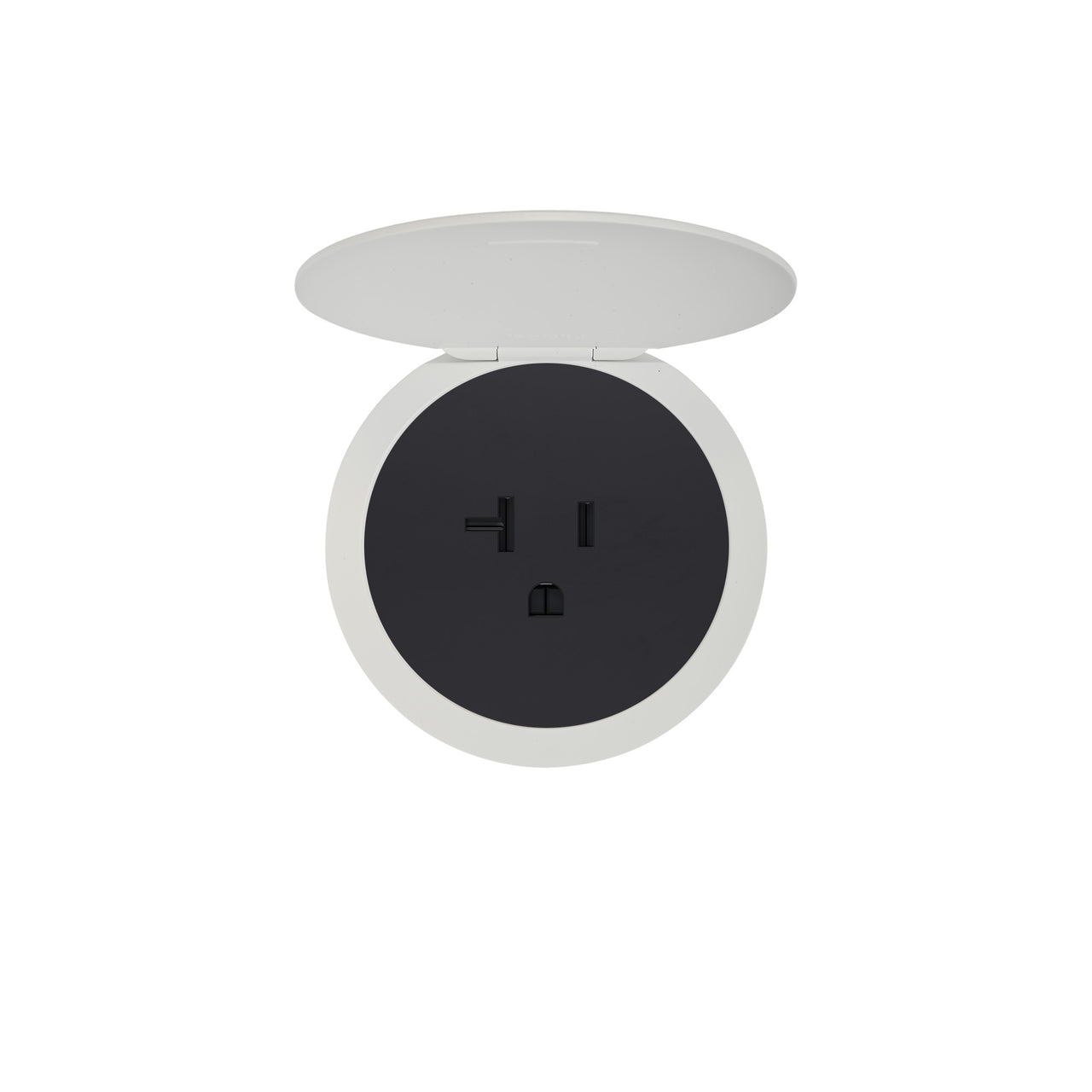

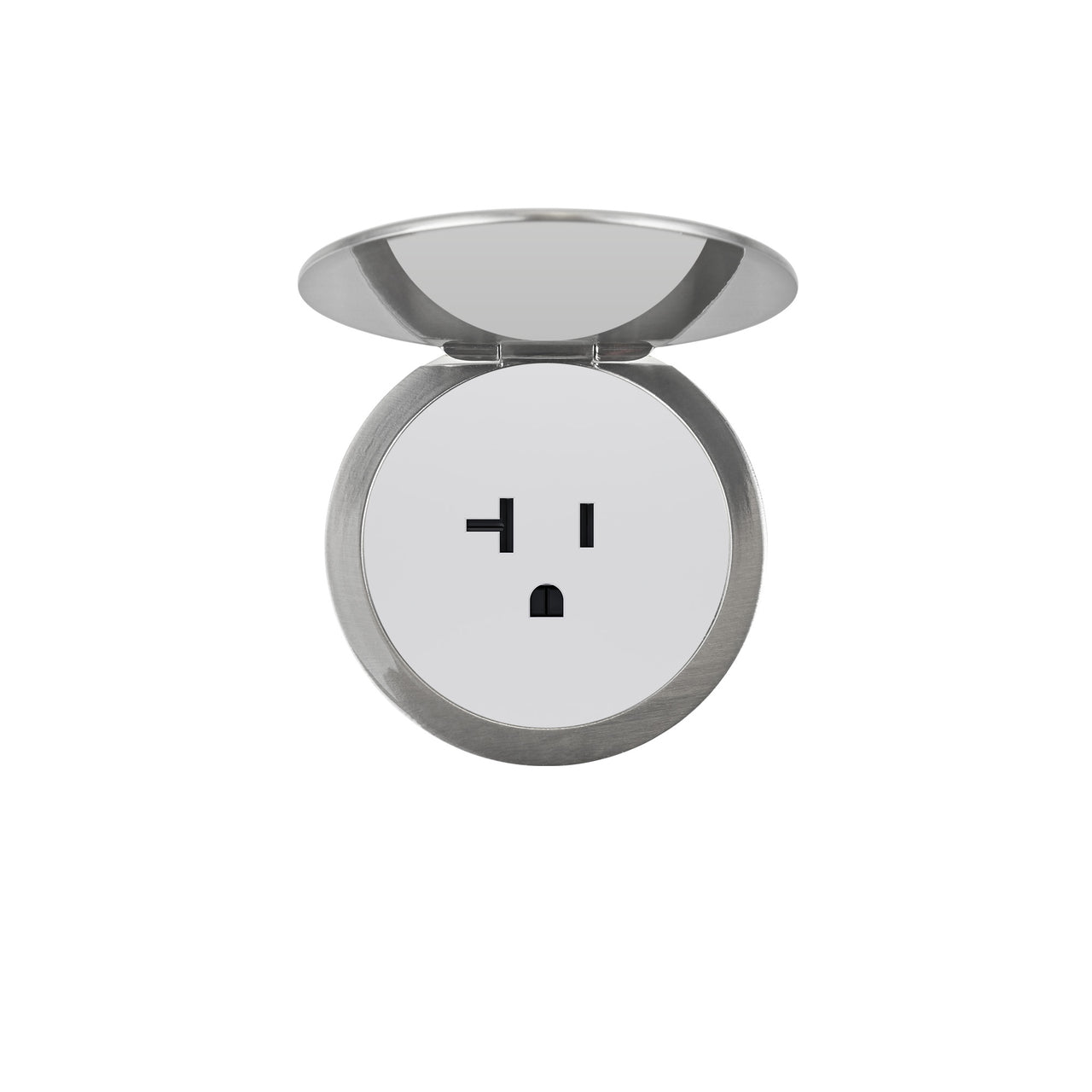

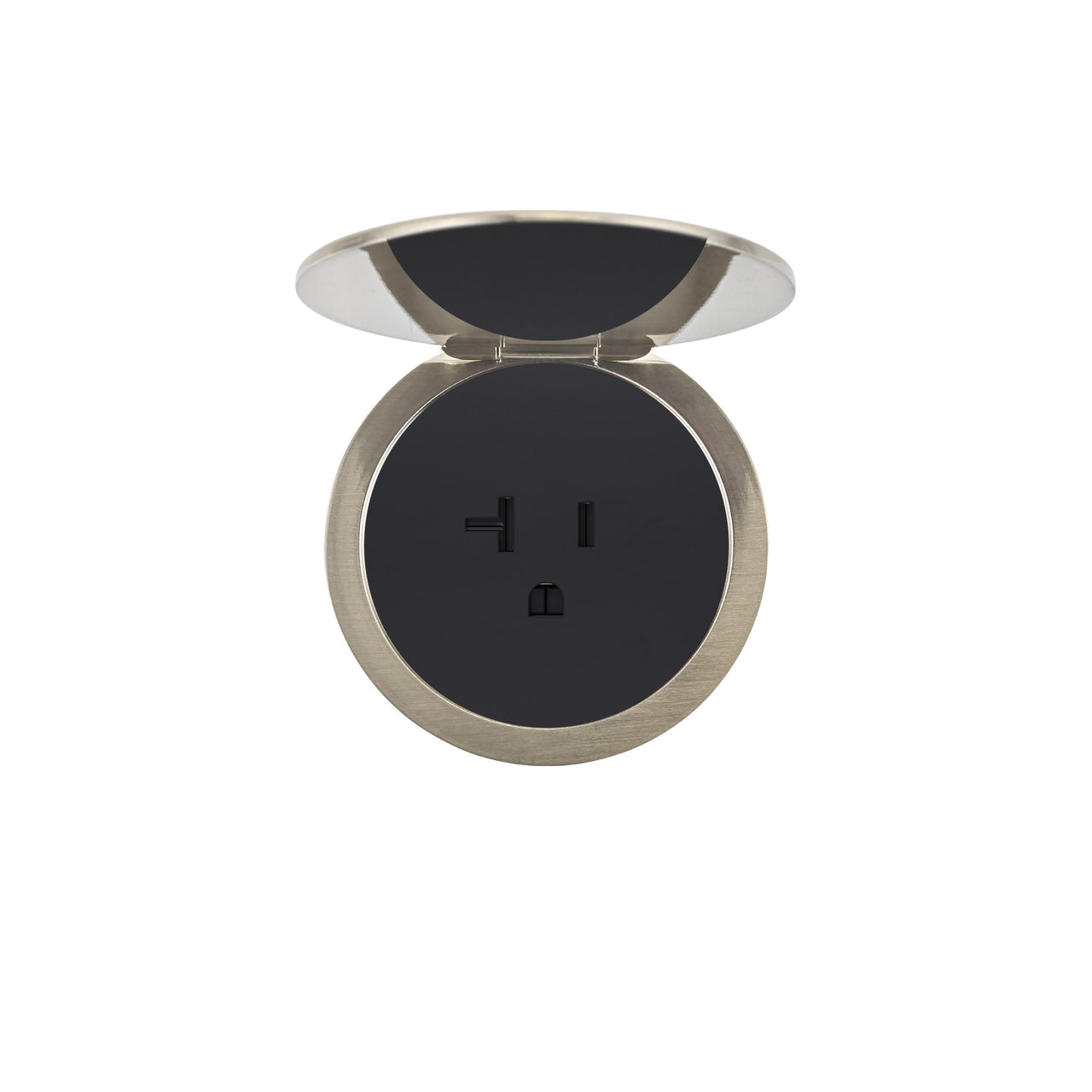

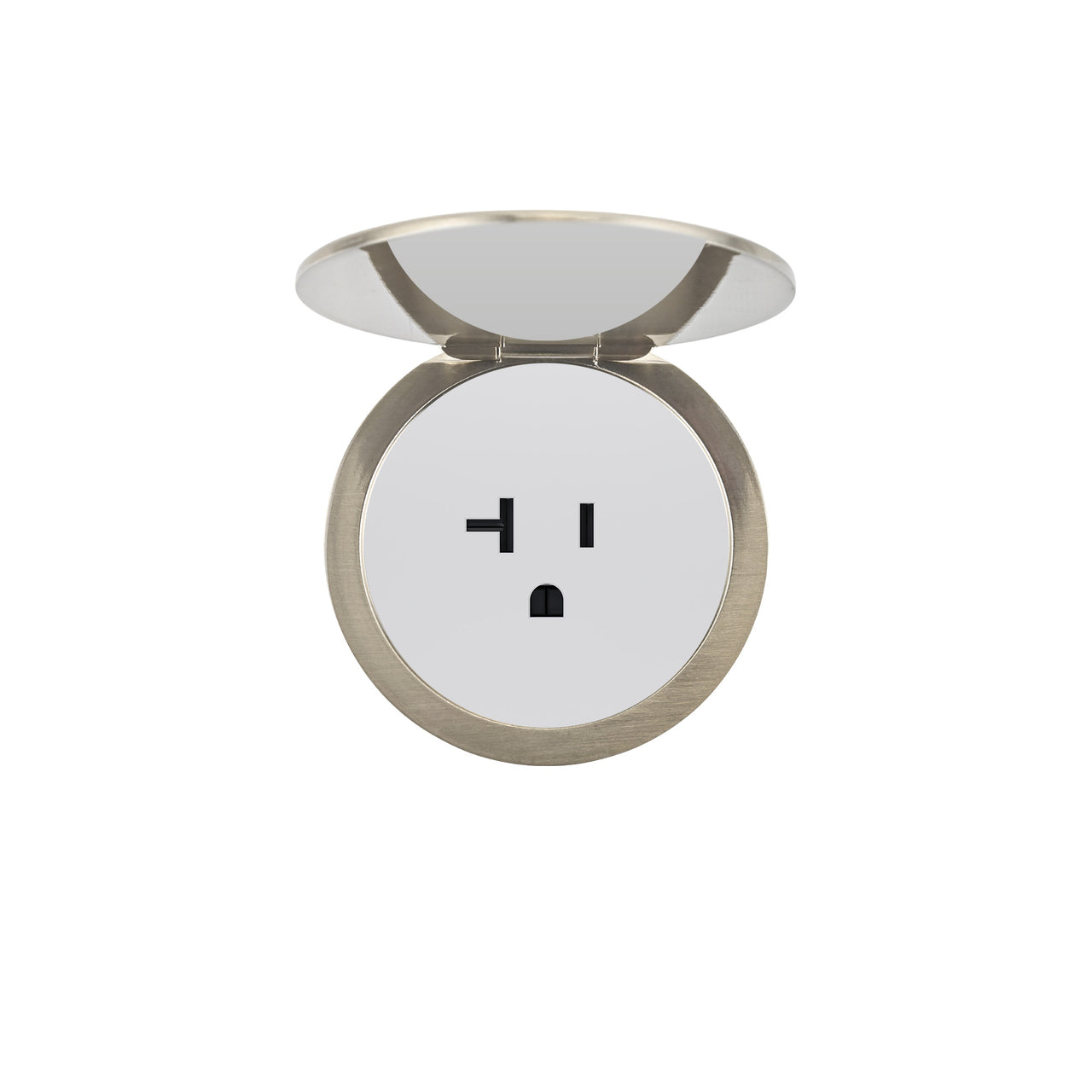

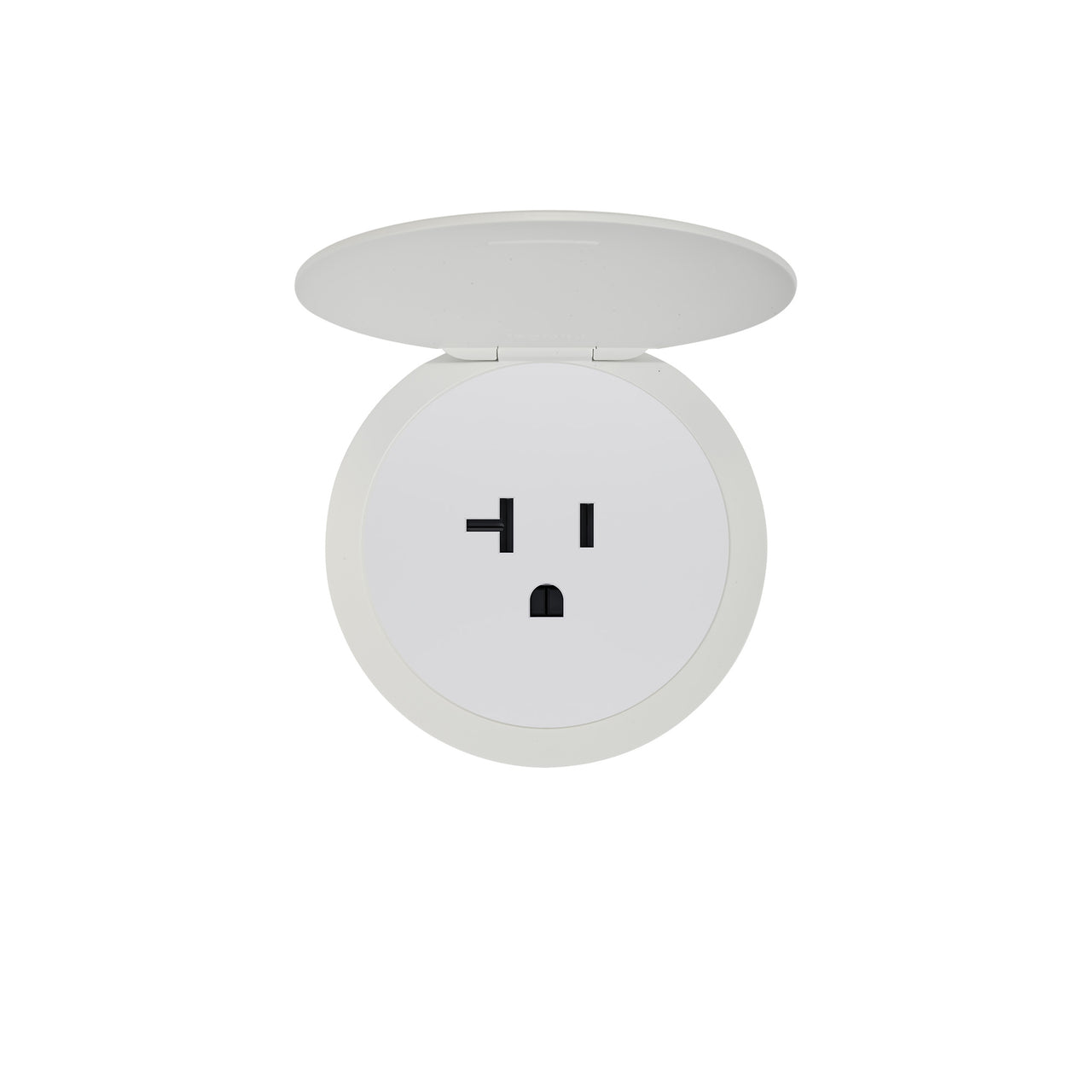

20 amp Legrand Countertop Outlet Specs
Outlet Dimensions
- Top Diameter: 2.29” [58.2mm]
- Top Thickness: .07” [1.65mm]
- Available Space for Countertop: 0.5 - 1.6"
- Locking Nut Diameter: 2.91" [73.8mm]
- Total Height: 3.65” [92.6mm]
- Total Length: 4.74” [120.5mm]
Electrical Specs
- Outlet Configuration: 1 AC
- AC Current / Amperage Rating: 20 amp
- AC Voltage Rating: 125V
- NEMA Configuration: 5-20R
- Tamper Resistant: Yes
- Wire Size: #14 – #10 AWG
- Connection Type: Back Wired (Screw Terminals on Tail)
- 1-Year Limited Warranty
Outlet Cut Out Size
- Surface Mount with Lid: 2.25” [57.1mm] round cutout
Electrical Certification
- Conforms to UL STD. 498; Certified to CSA C22.2 No. 42
- Countertop Rated: UL 498 Section 146 compliant for Countertop or Work Surface Assembly
- Spill-Proof: Passed the UL half-gallon spill test (maintains dielectric integrity after liquid exposure)
- Fully compliant with NEC 2023 406.5(E) for kitchen islands and peninsulas
- Must be installed on a GFCI-protected circuit.
