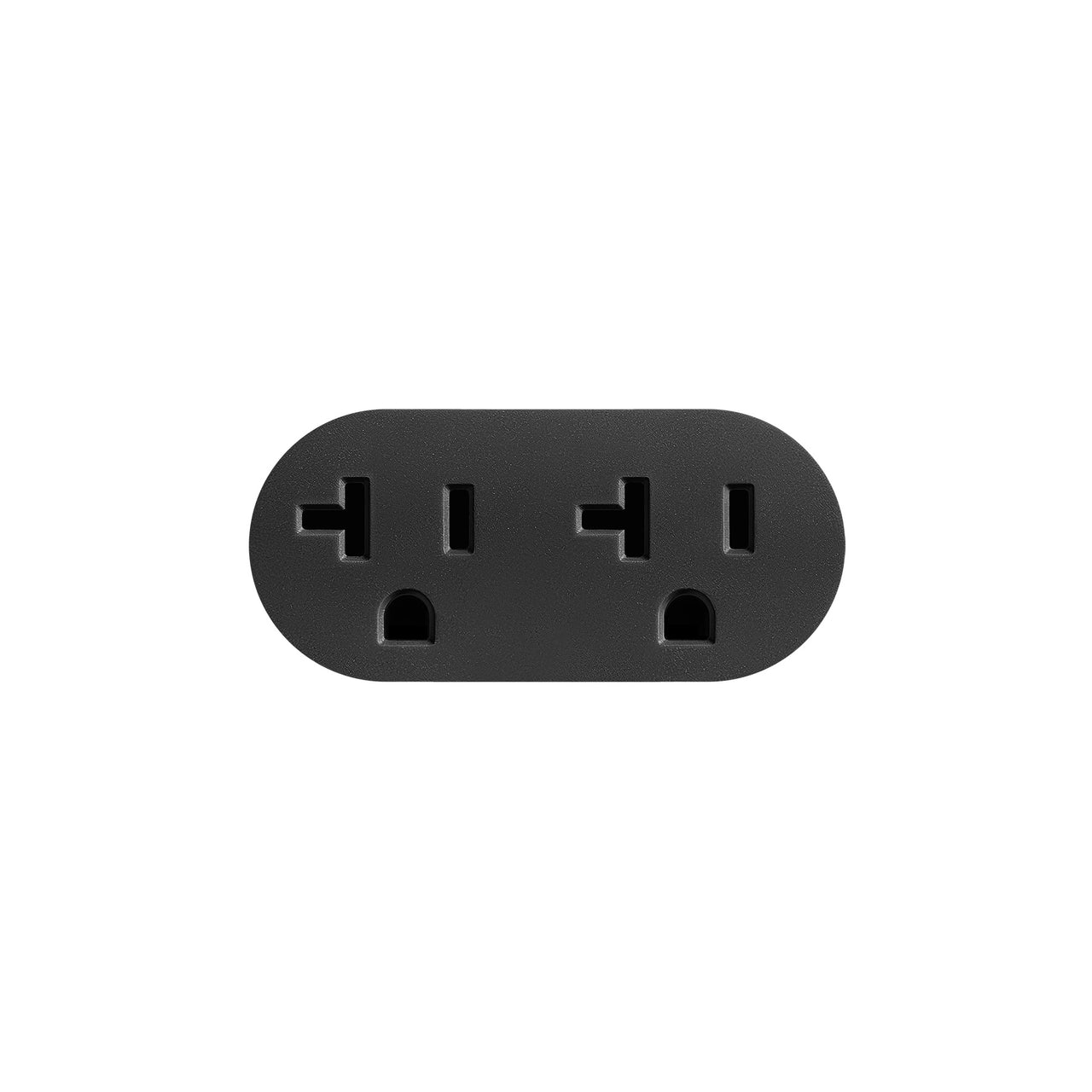

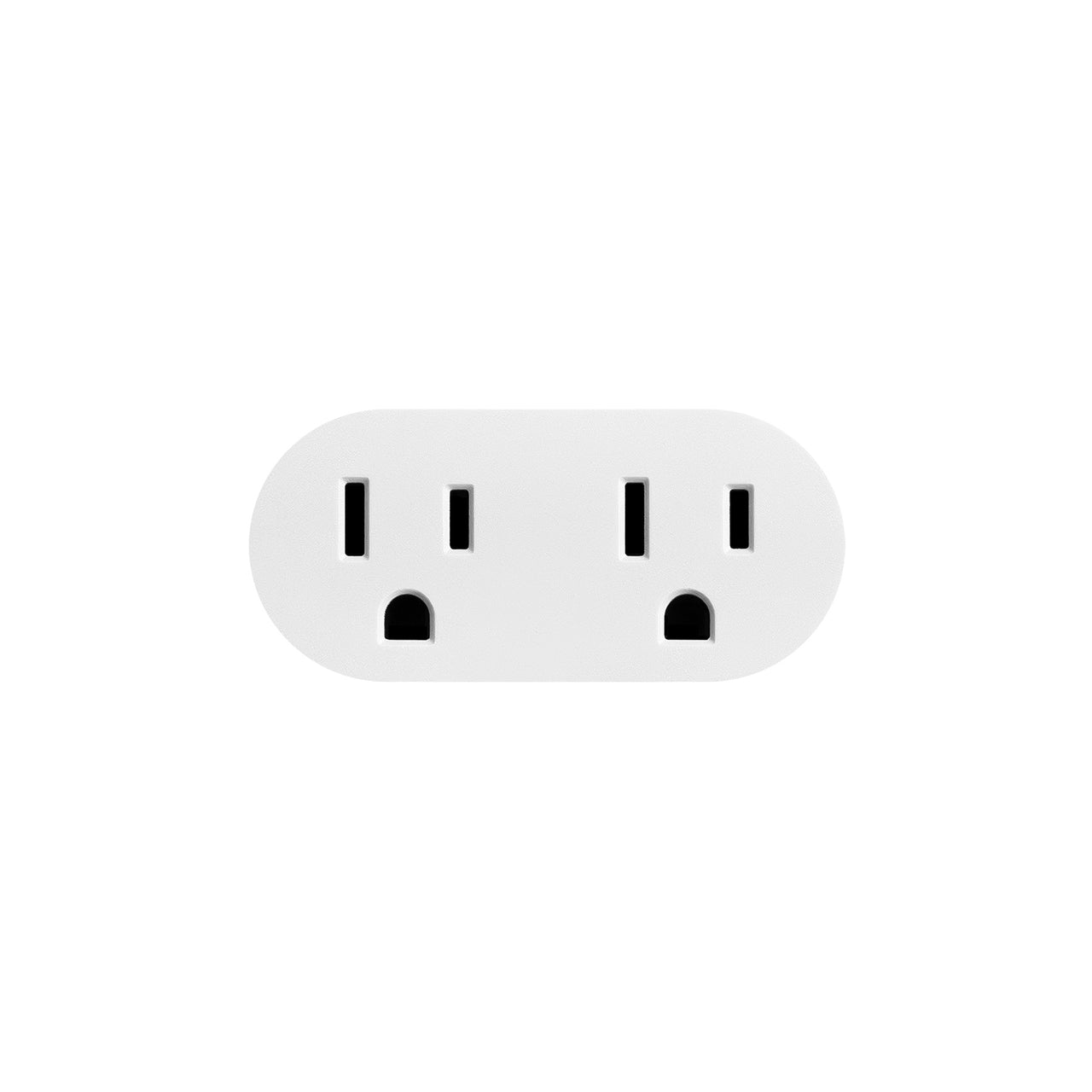

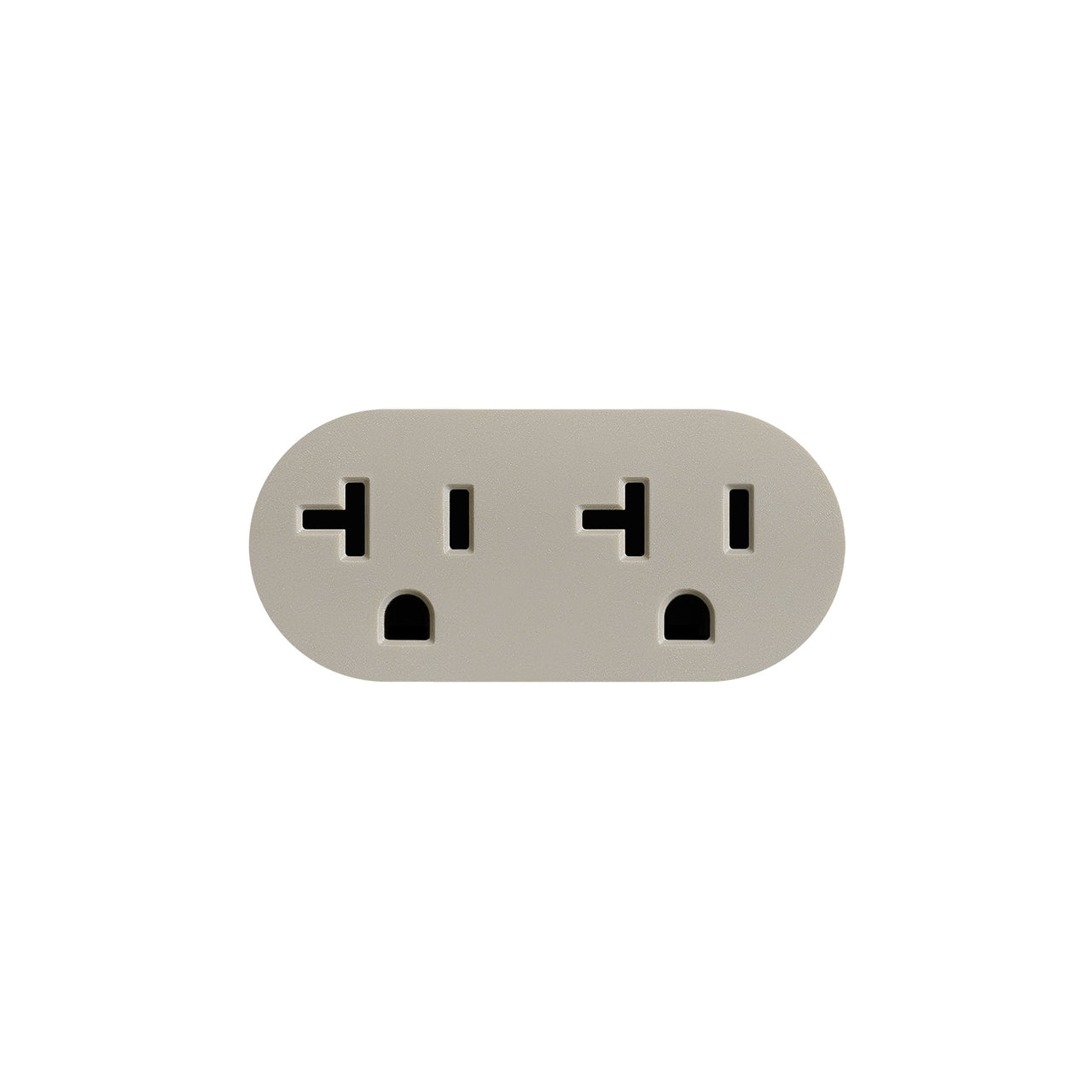

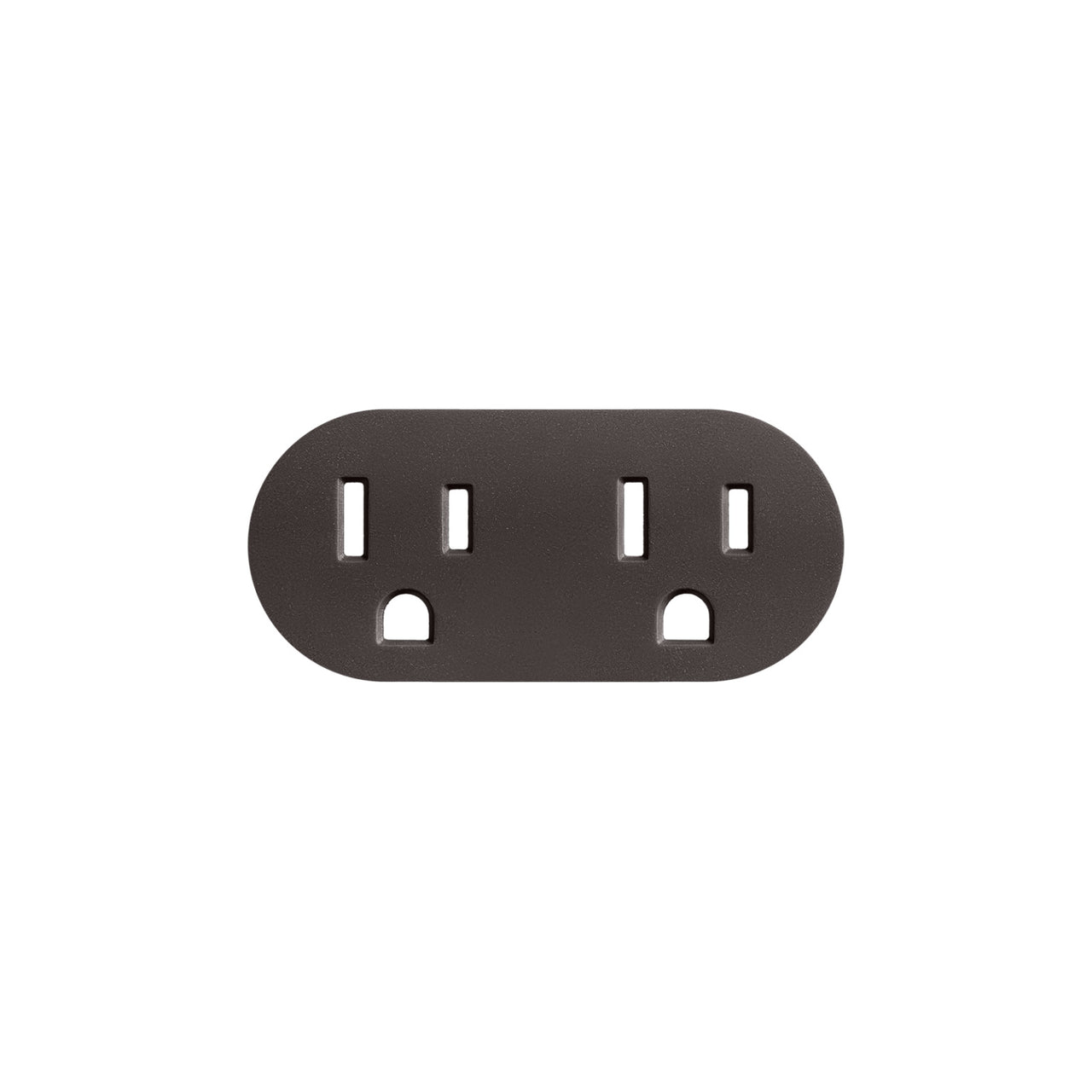

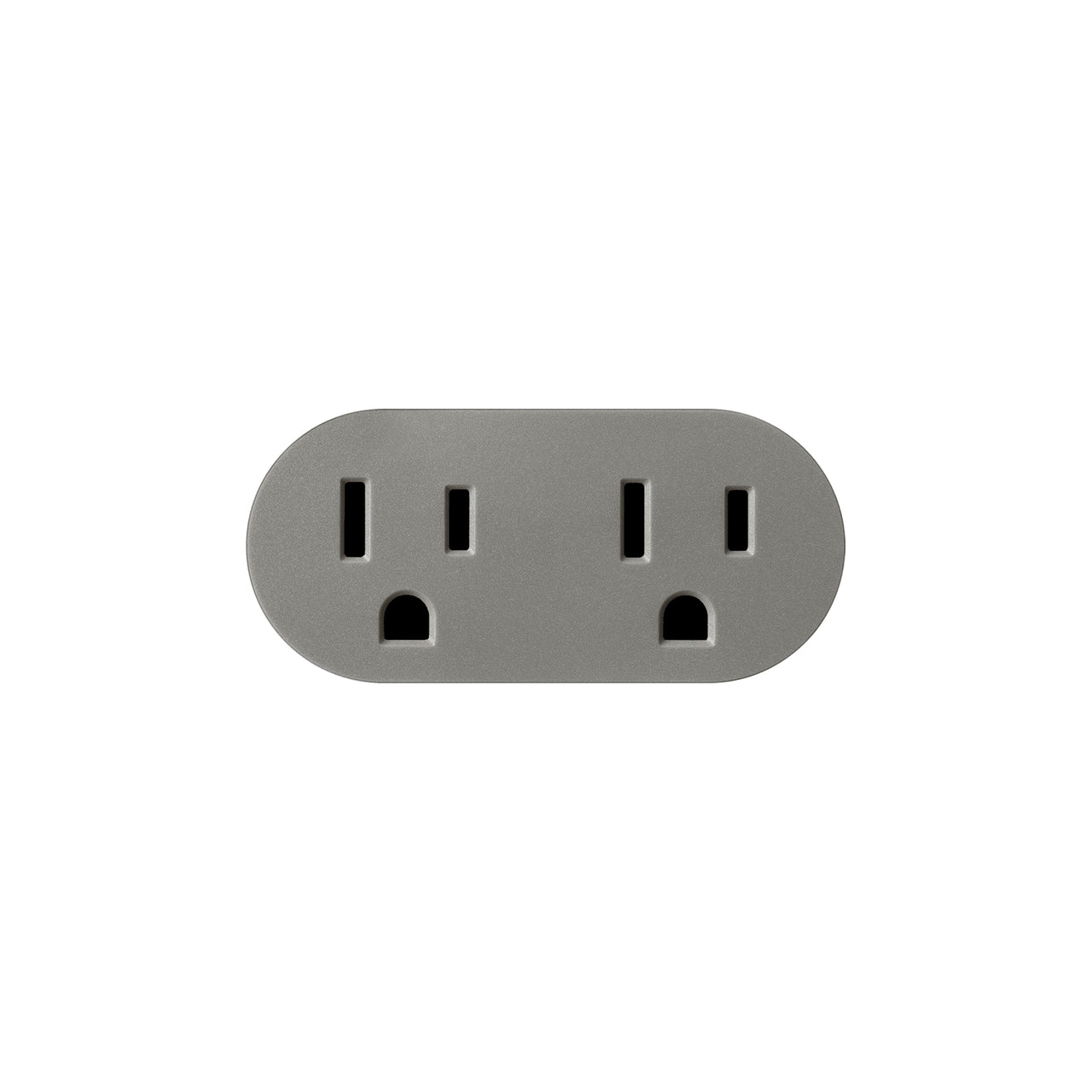

Prado Unifit Duplex Hardwired Outlet
Choose a Cover Plate
Select a Finish
Effortless Power, Refined Design

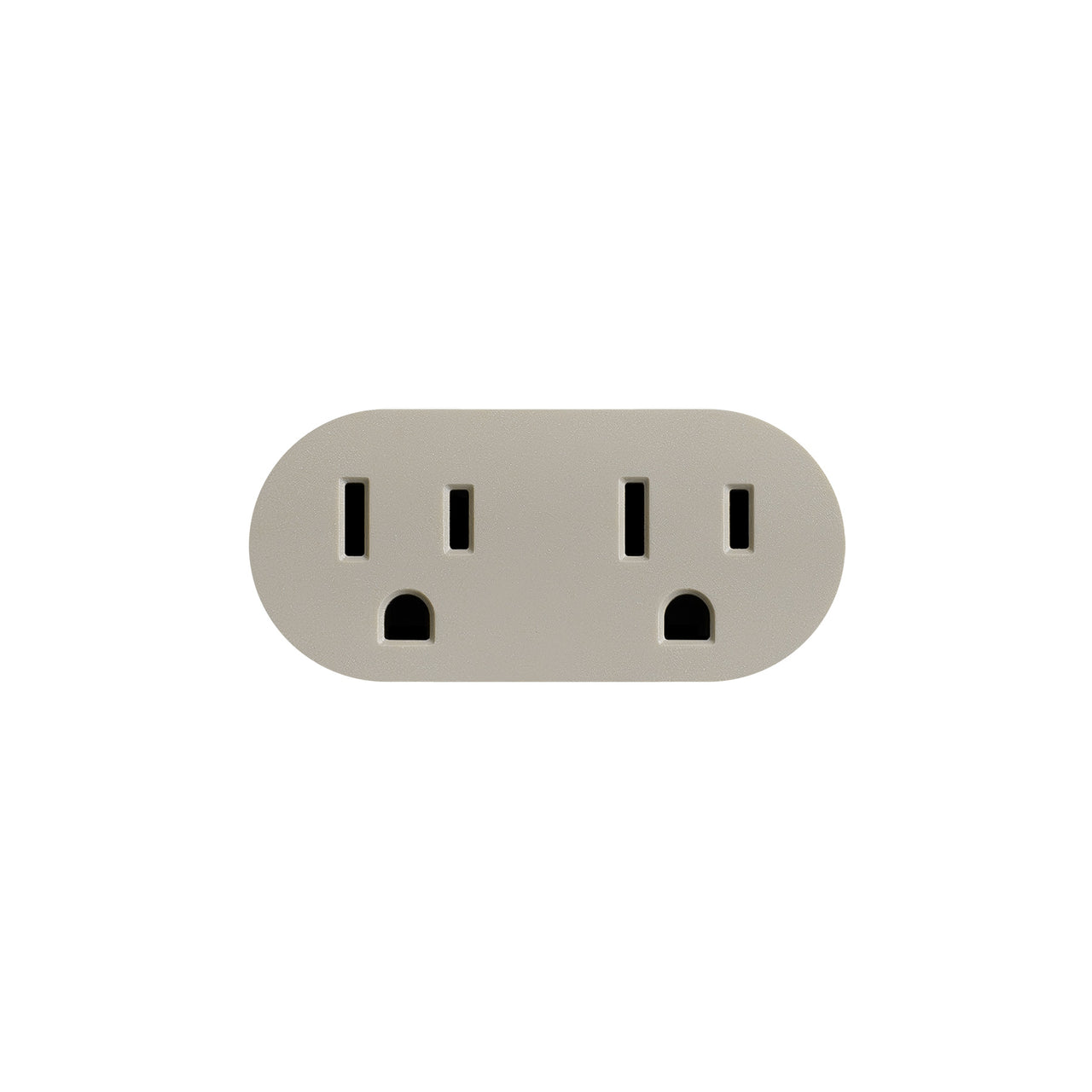

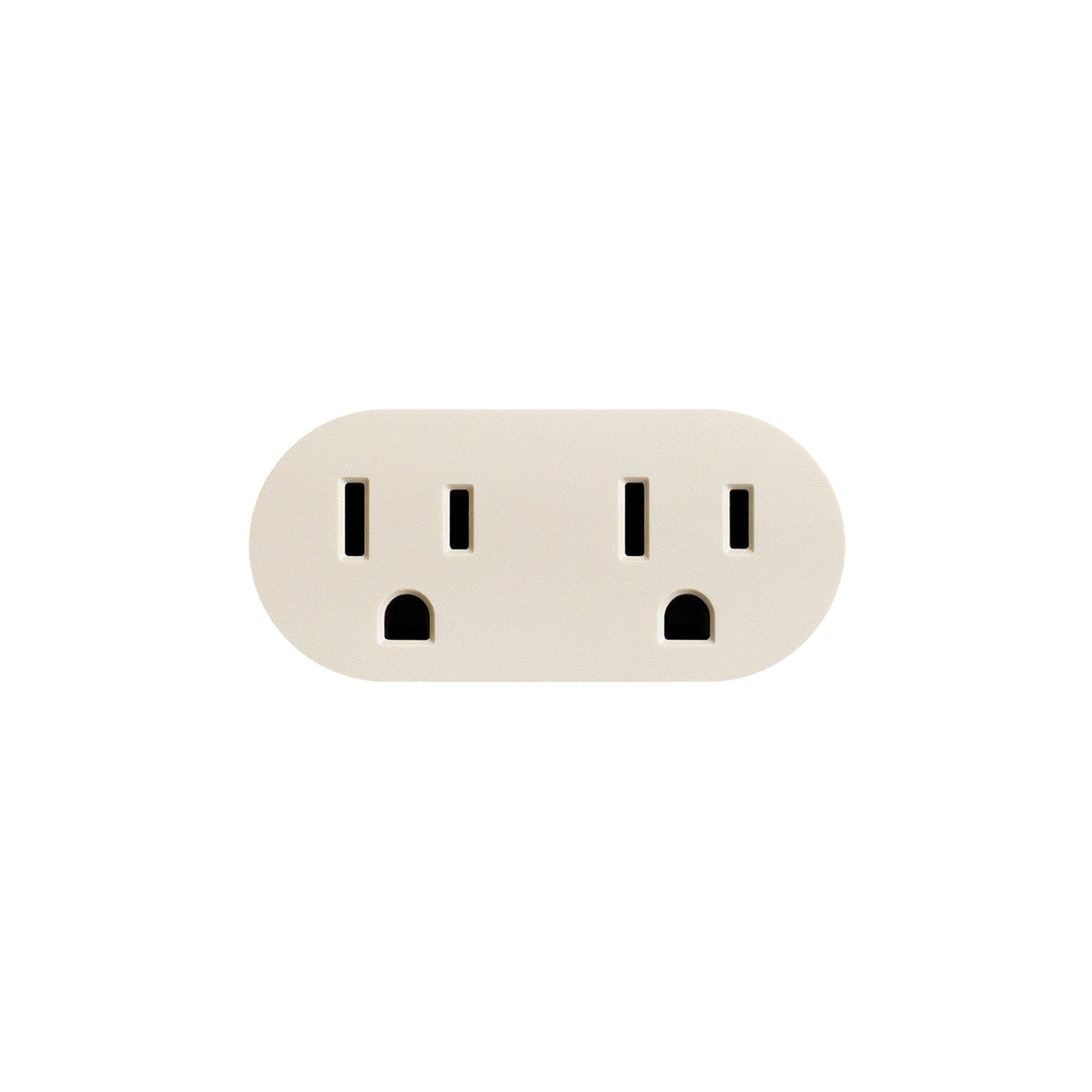

Introducing the Prado Unifit Duplex Hardwired Outlet—your sleek, double-outlet solution for modern interiors. Engineered to integrate seamlessly into rigid surfaces like drywall, stone, or tile, this outlet delivers hidden power with a modern, minimalist touch. Available in white, black, sand, and clay—with more finishes on the way—it’s designed to complement any space without compromising style.

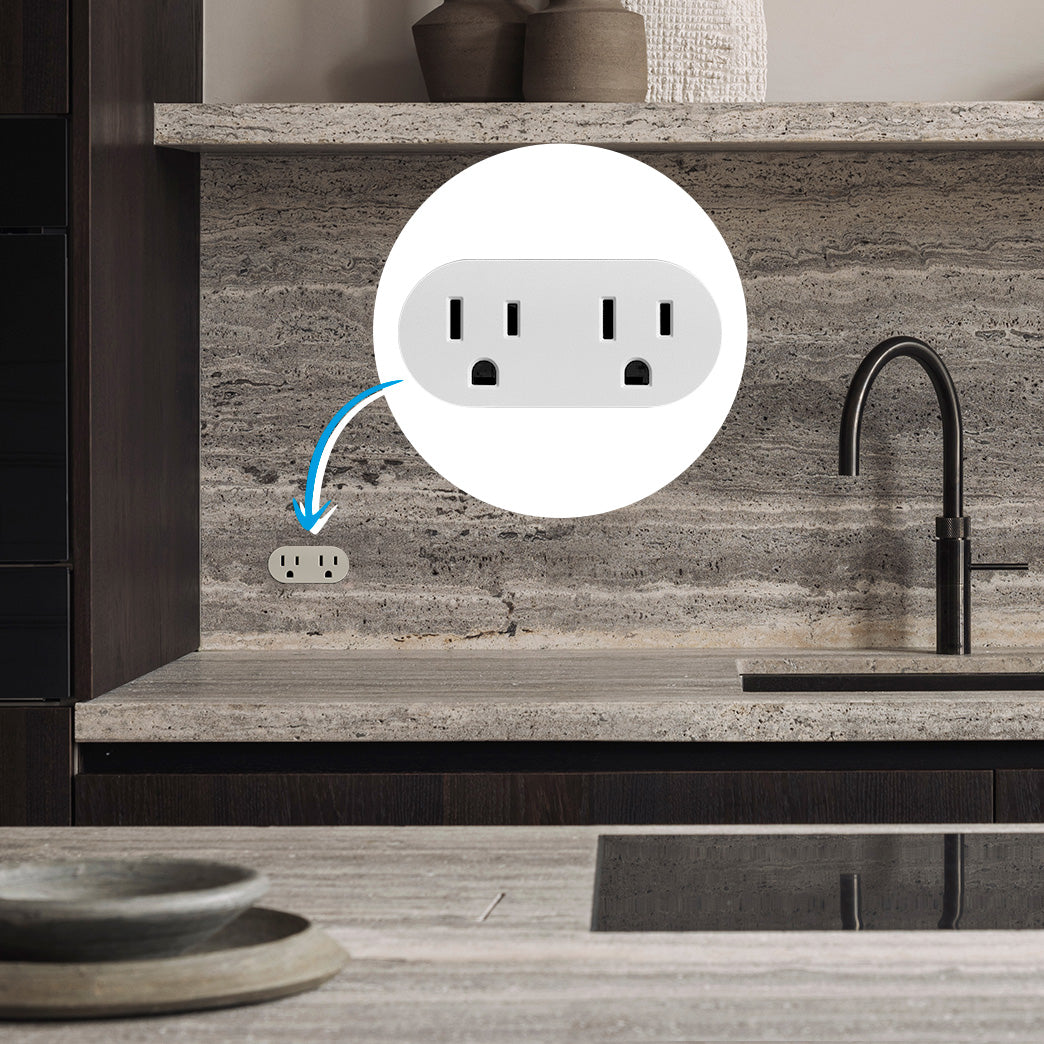

Versatile Placement for Any Space
The Prado Unifit Duplex stands out with its unique horizontal layout, offering a discreet double outlet that’s as stylish as it is functional. Prefer a vertical installation? No problem—this outlet adapts to your design needs. Both single and double models are crafted to blend into your walls, making them a favorite among architects, homeowners, and builders who value convenience and compliance.
Streamlined Installation, No Hassle

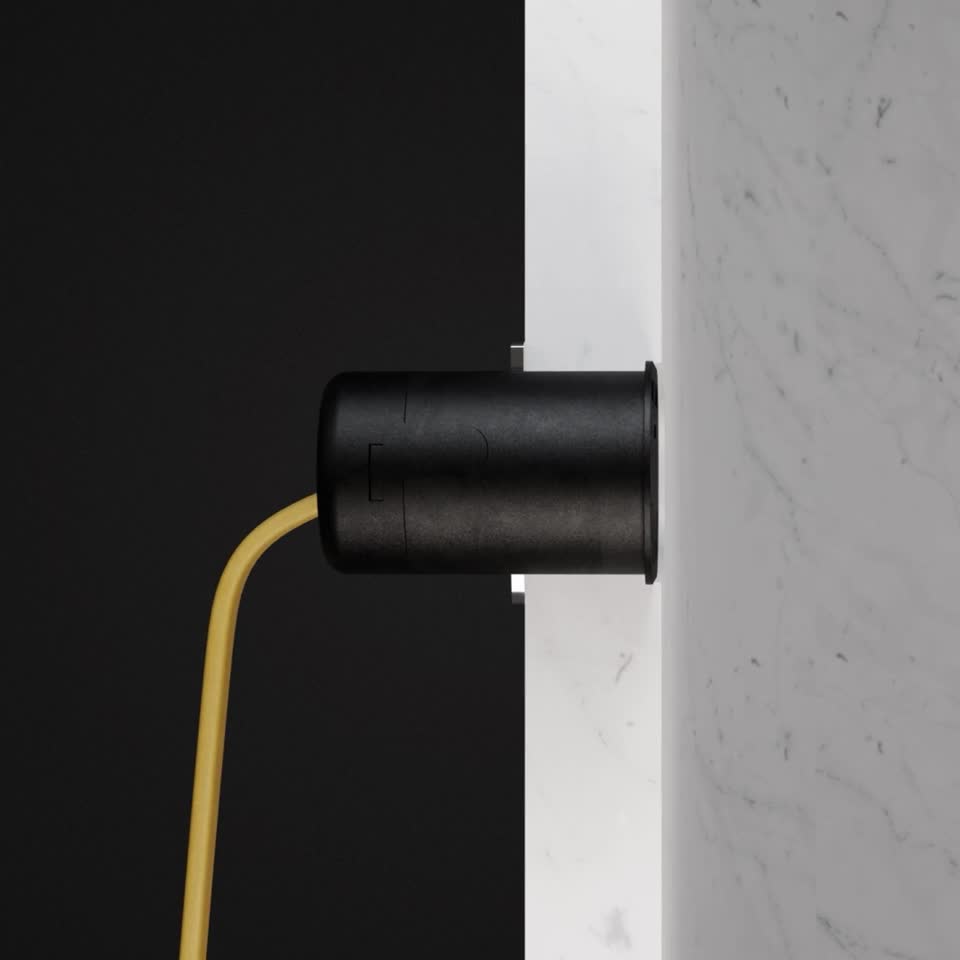

Installation couldn’t be simpler. The self-contained junction box cap means you can mount the outlet directly into your surface—no in wall junction box required. This clever cap also allows you to daisy chain multiple outlets in series, letting one wire power two outlets for a clean, efficient setup. Whether you choose surface mount or flush mounting (with an inset cut), you’ll need only standard tools—no proprietary tools needed.
Safety and Compliance at the Core
Every Prado Unifit Duplex Hardwired Outlet is ETL Listed for the US & Canada, meeting strict safety and code standards. Tamper-resistant mechanisms and compatibility with GFI/GFCI circuits provide additional protection, ensuring peace of mind for families and professionals alike.
Durable, Reliable Performance
Built to last, Prado Unifit outlets are rigorously tested for durability and daily use. Enjoy the confidence of a one-year warranty and a straightforward return policy—so you can invest in your space with total assurance.
Application

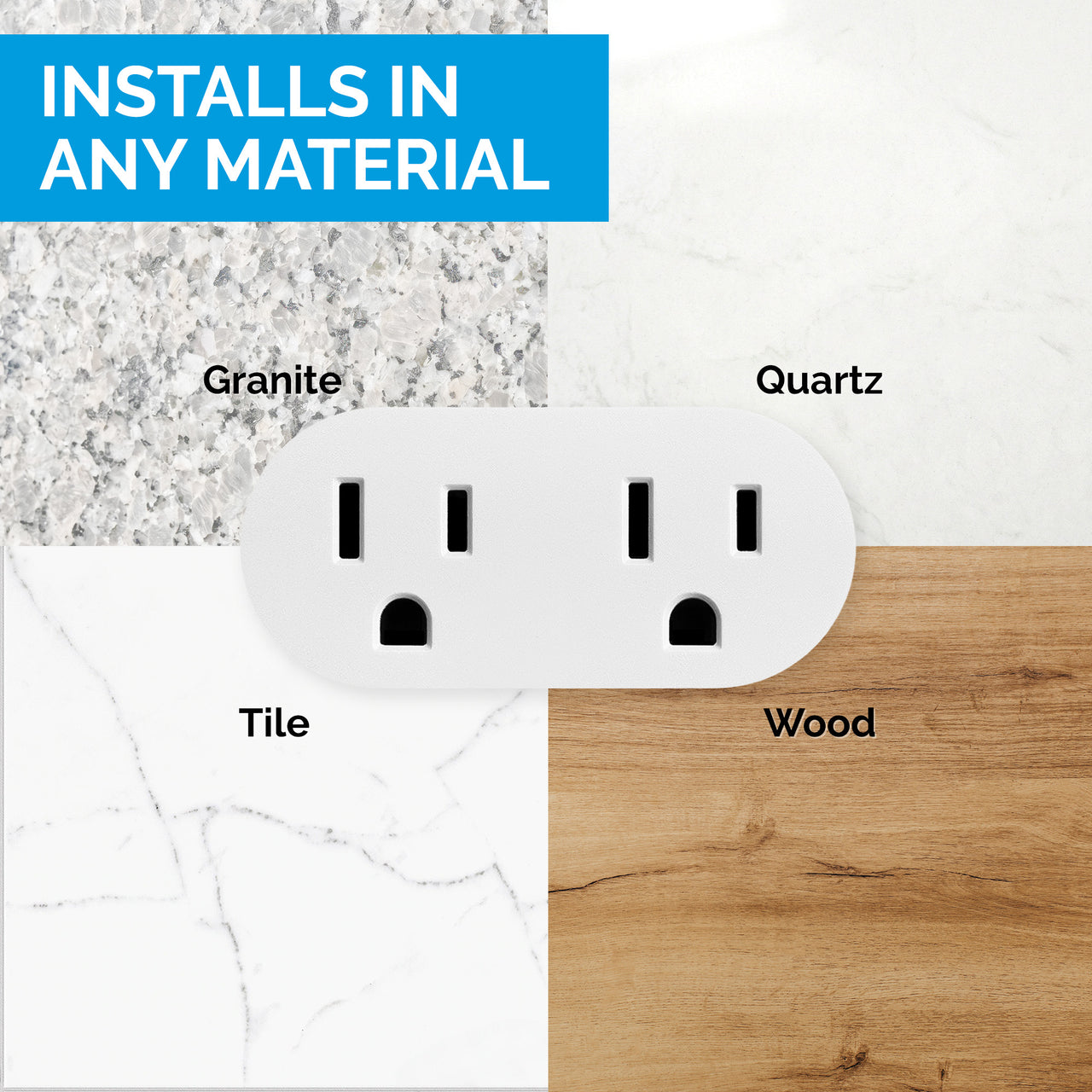

- Granite, Quartz, Stone, Tile, Drywall, and Wood
Outlet Dimensions
- Cover Plate Width: 2-7/8” (73mm)
- Cover Plate Height: 1-5/16” (33.3mm)
- Outlet Width: 2-7/8” (73mm)
- Outlet Height: 1-7/32” (30.9mm)

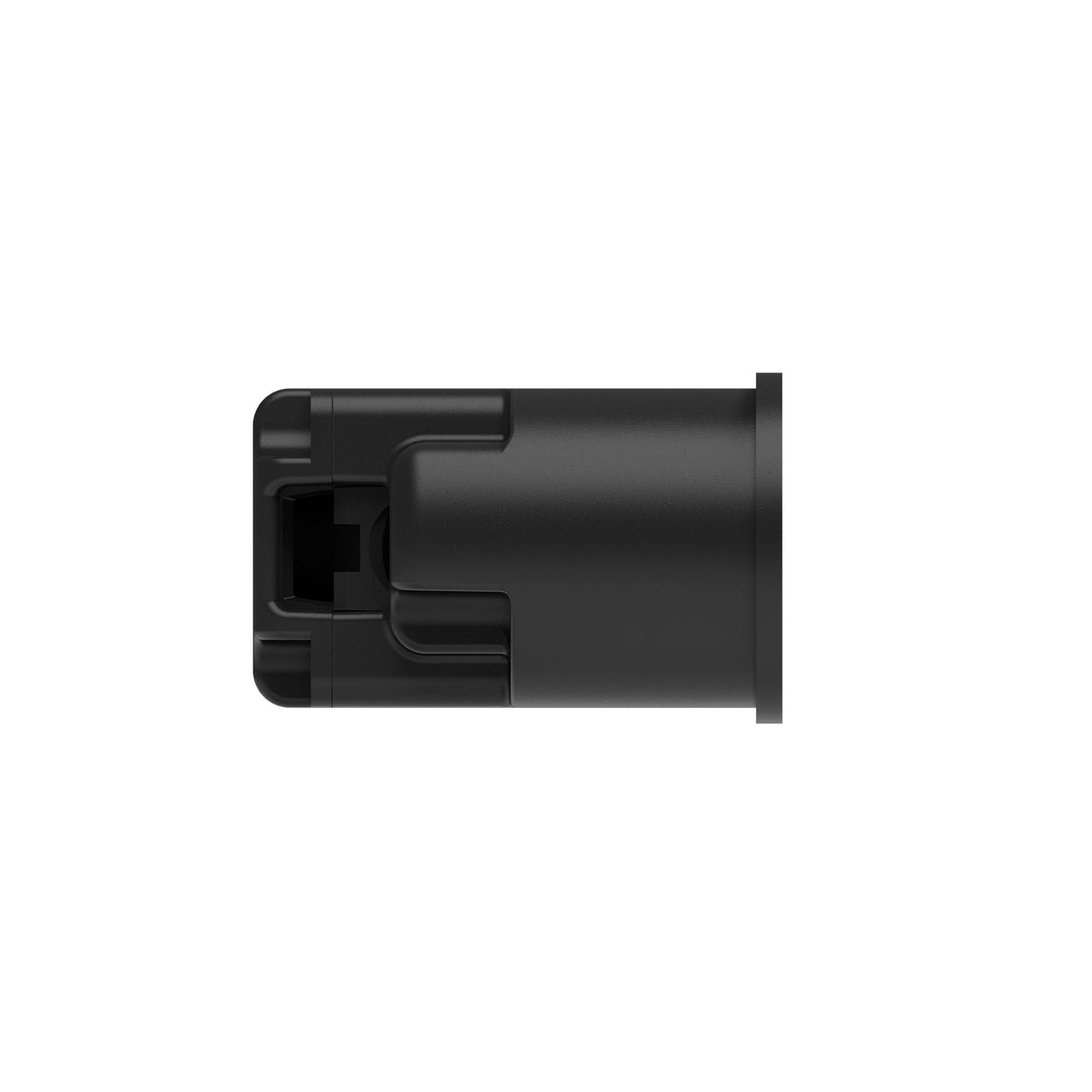

- Outlet Depth: 2” (50.8mm)

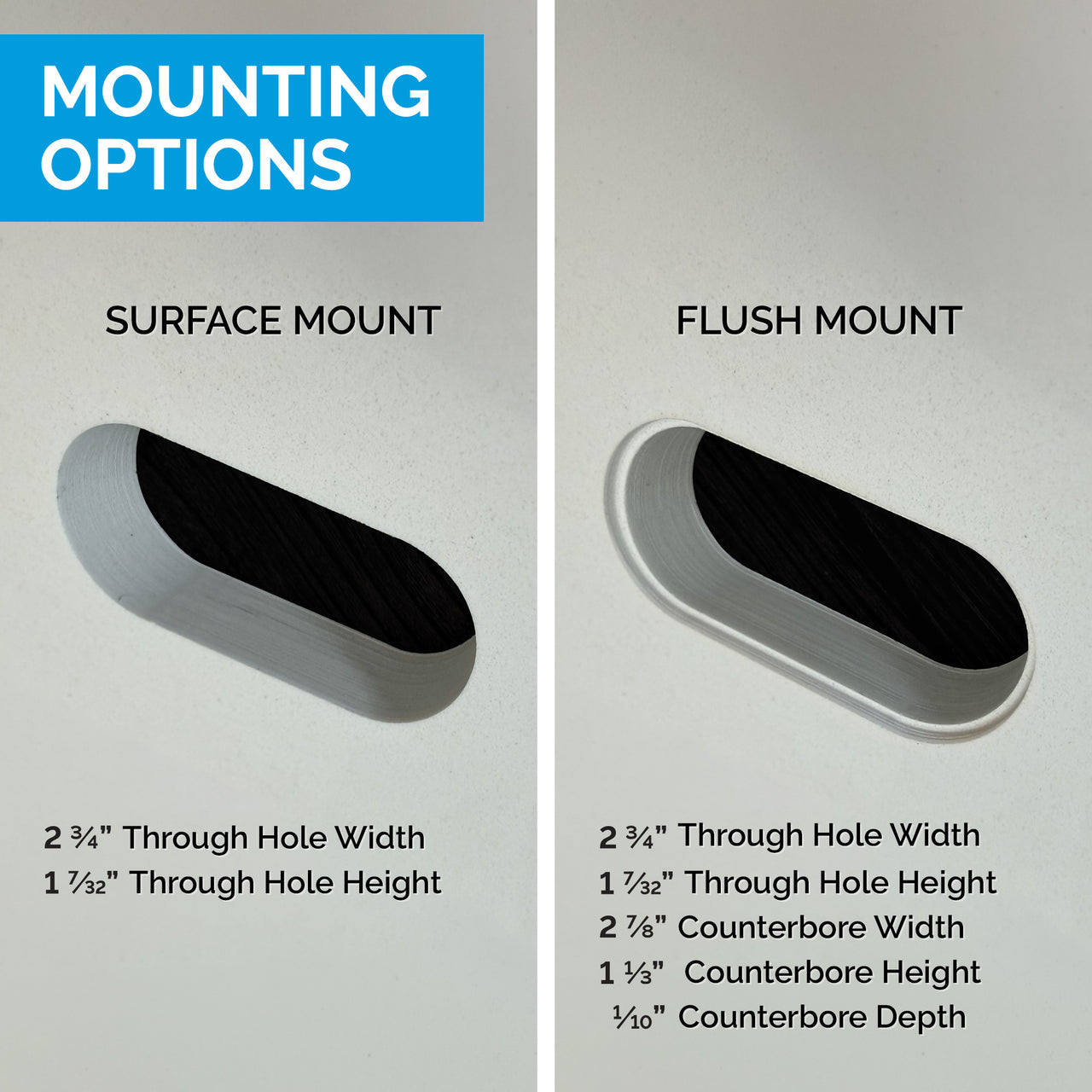

Panel Cutout
- Surface mount: 1-7/32” milled cut out

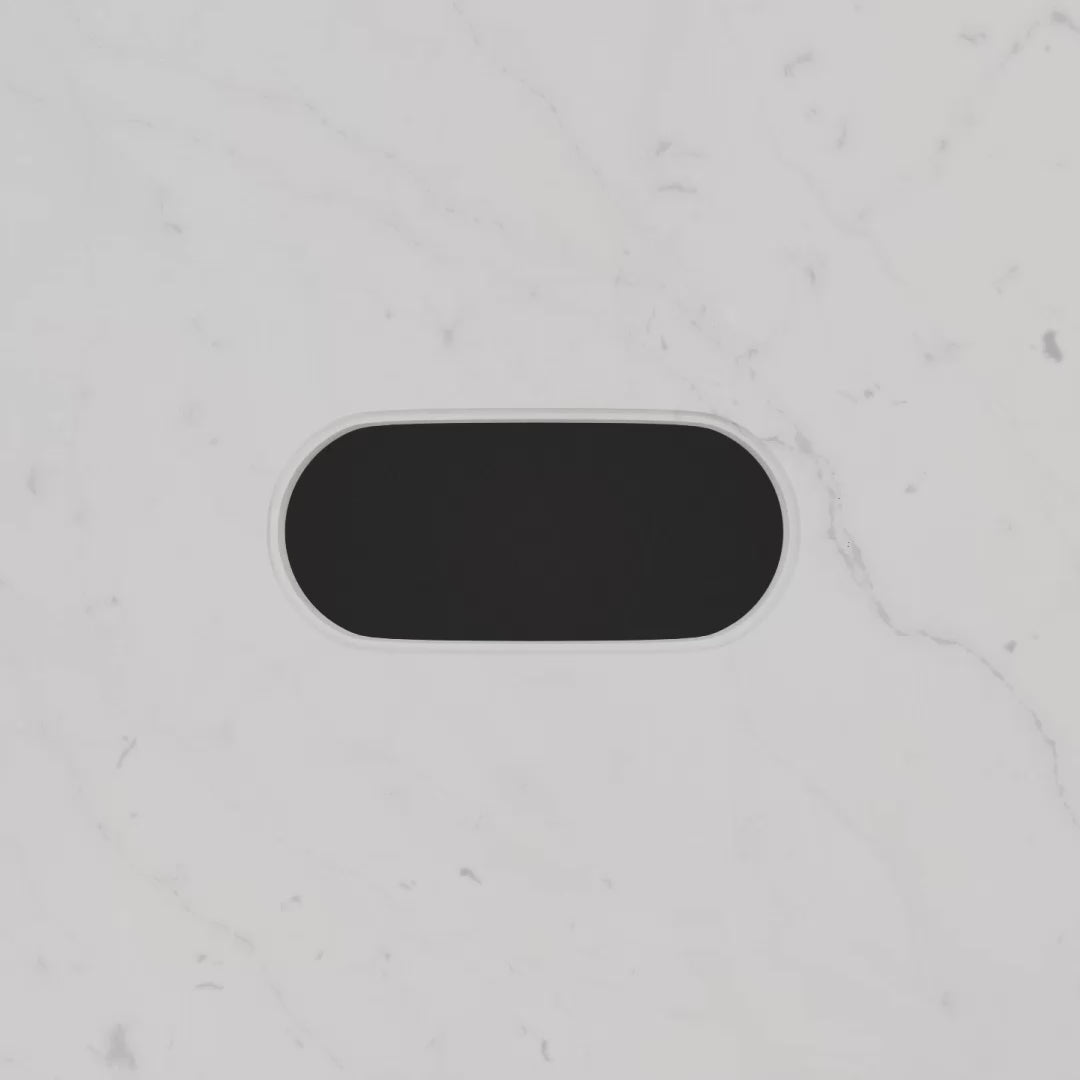

- Flush mount: Use a CNC machine to make the counterbore. Alternatively, for wood you can use a 1/16” rabbeting router bit.
- Cutout template provided
Panel thickness
- 1/4 to 1-3/8” (adjustable lugs)
Electrical

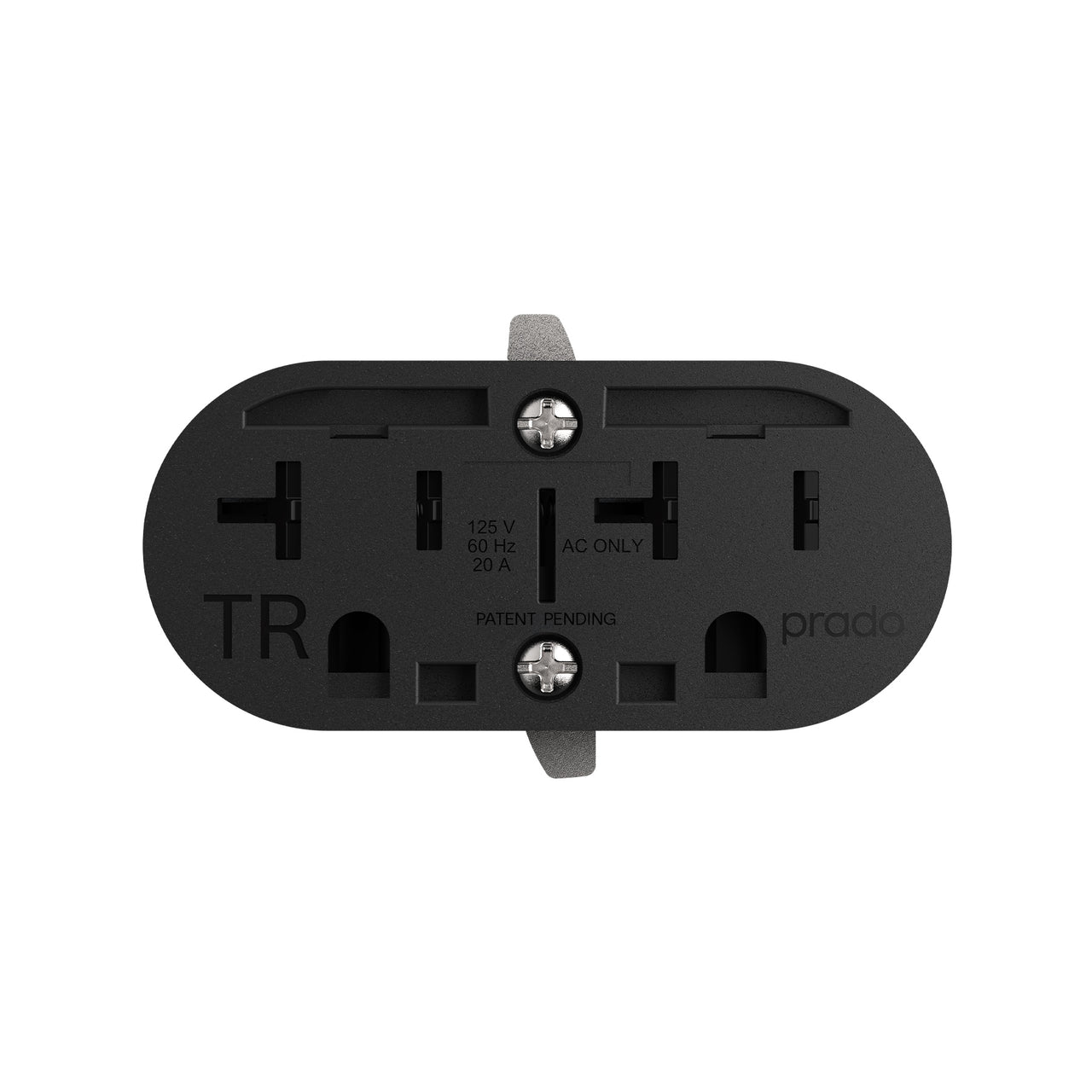

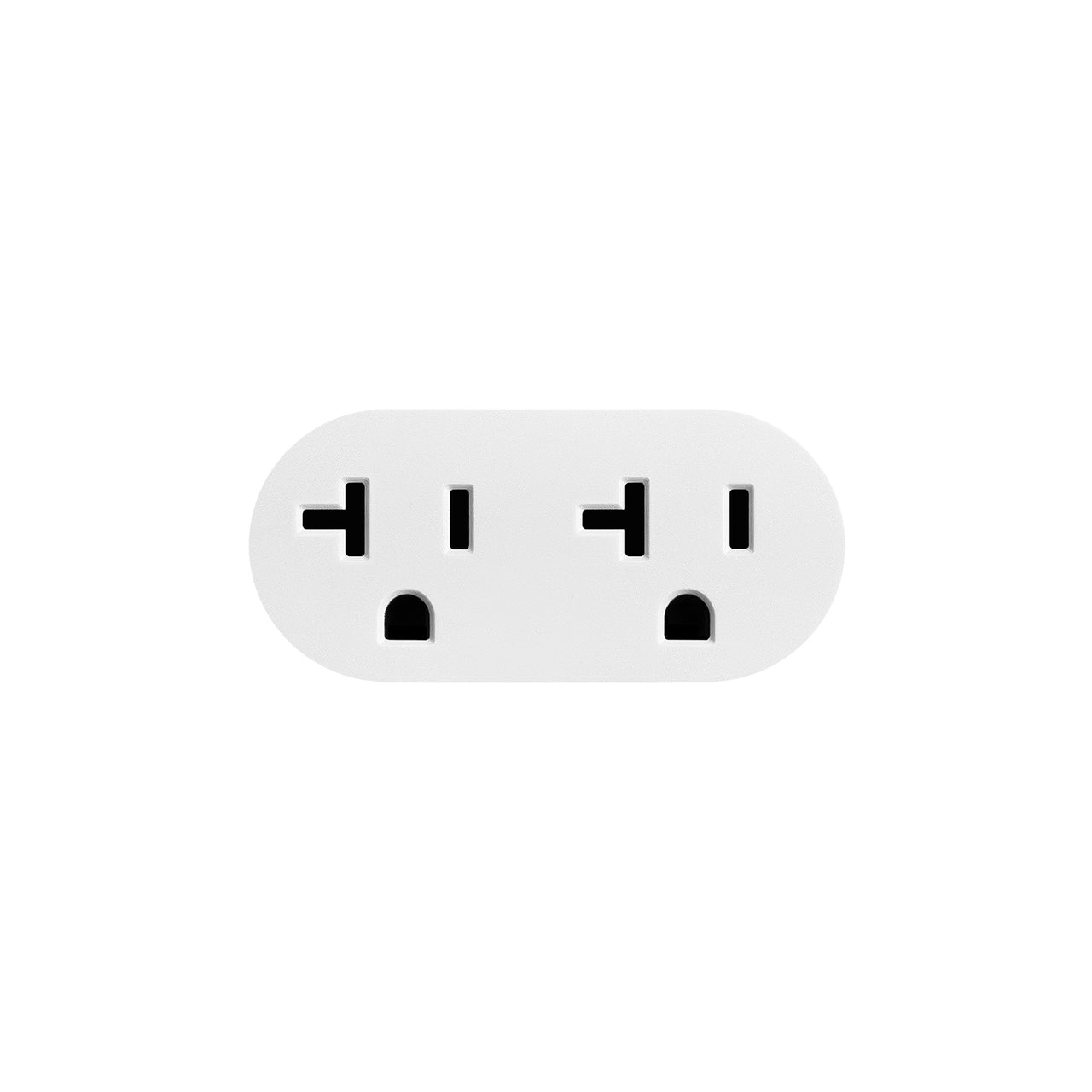

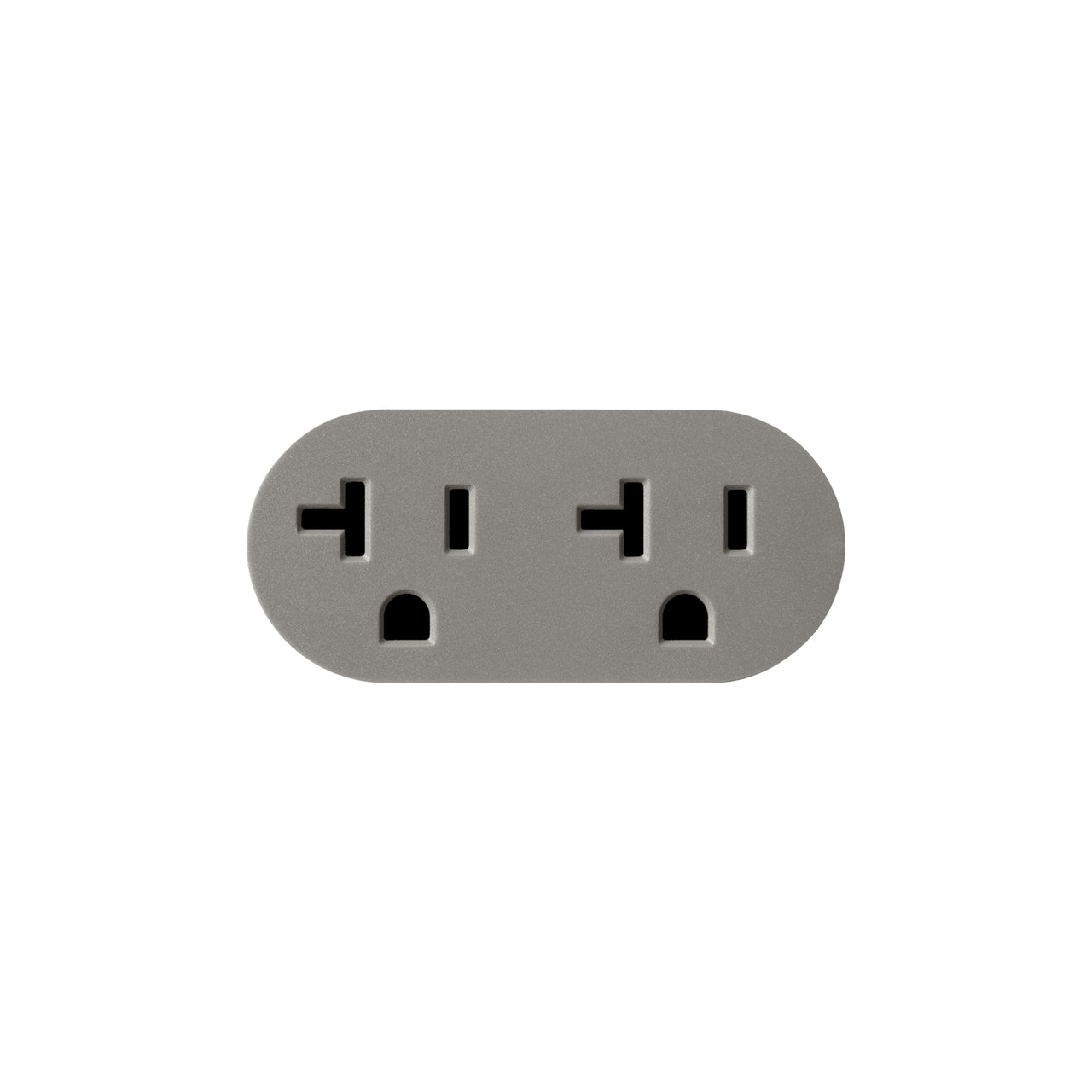

- 15/20 amp @ 125V
Wiring
- 14 AWG for 15 amp
- 12 AWG for 20 amp
- Strip wire to 3/8"
Cabling (Hardwired)

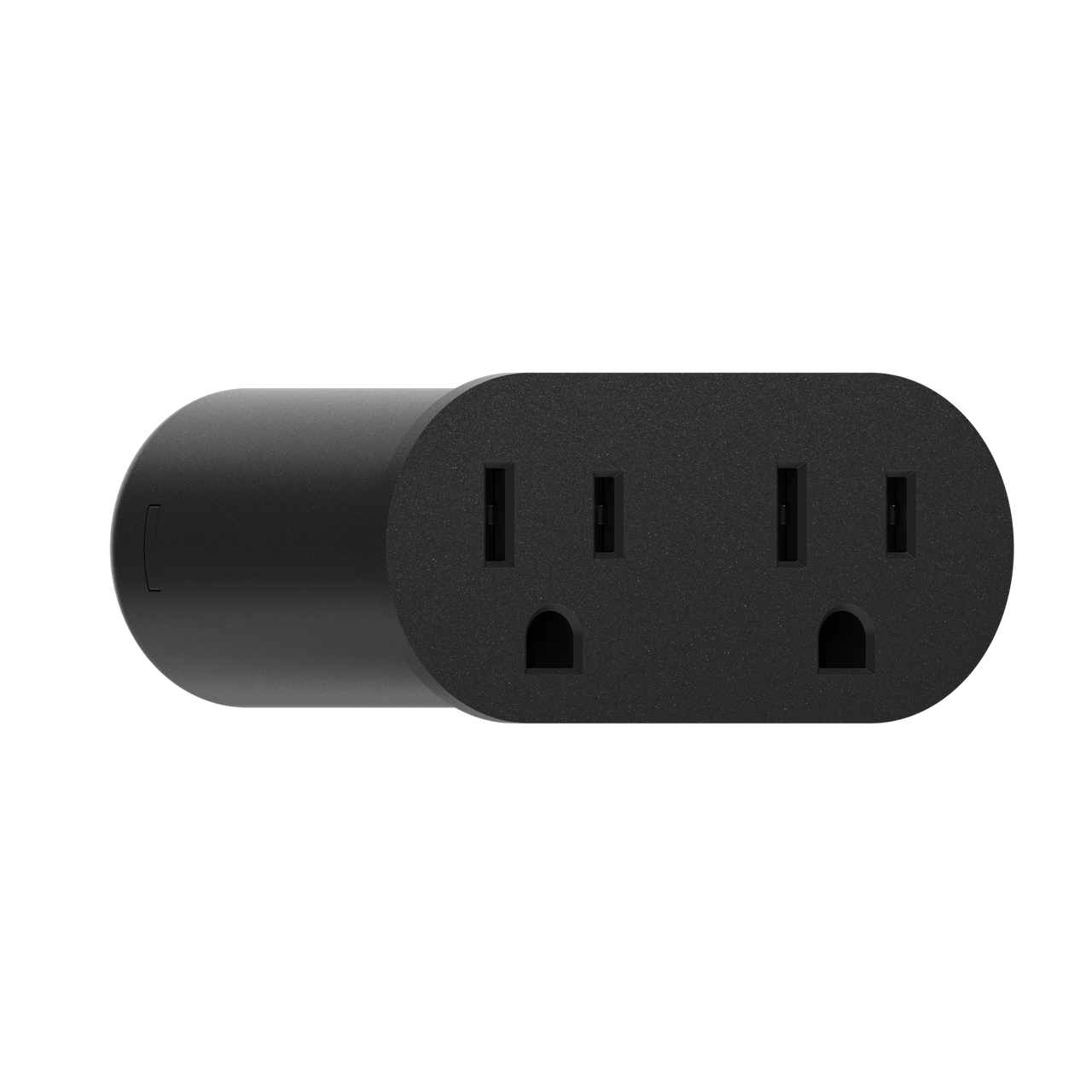

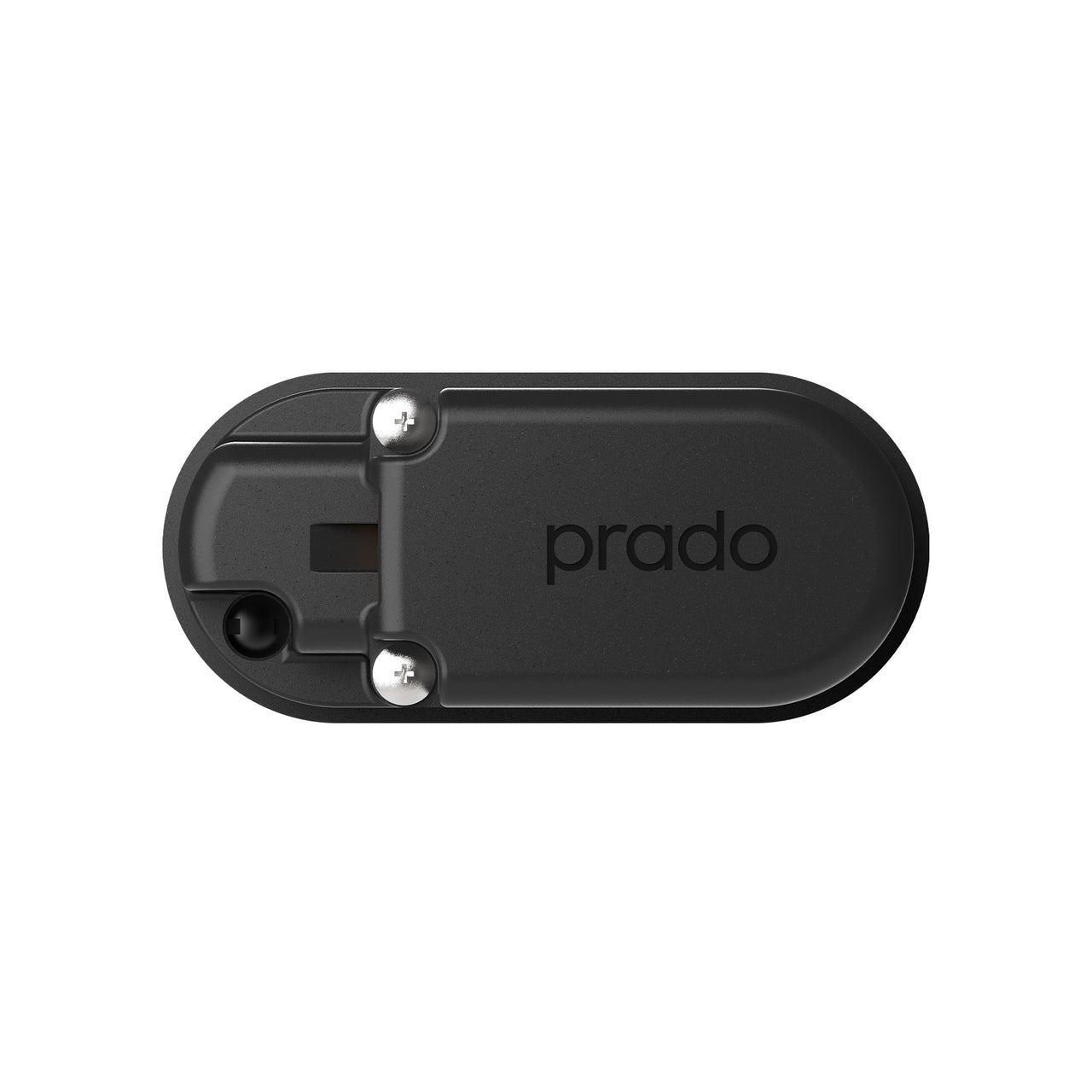

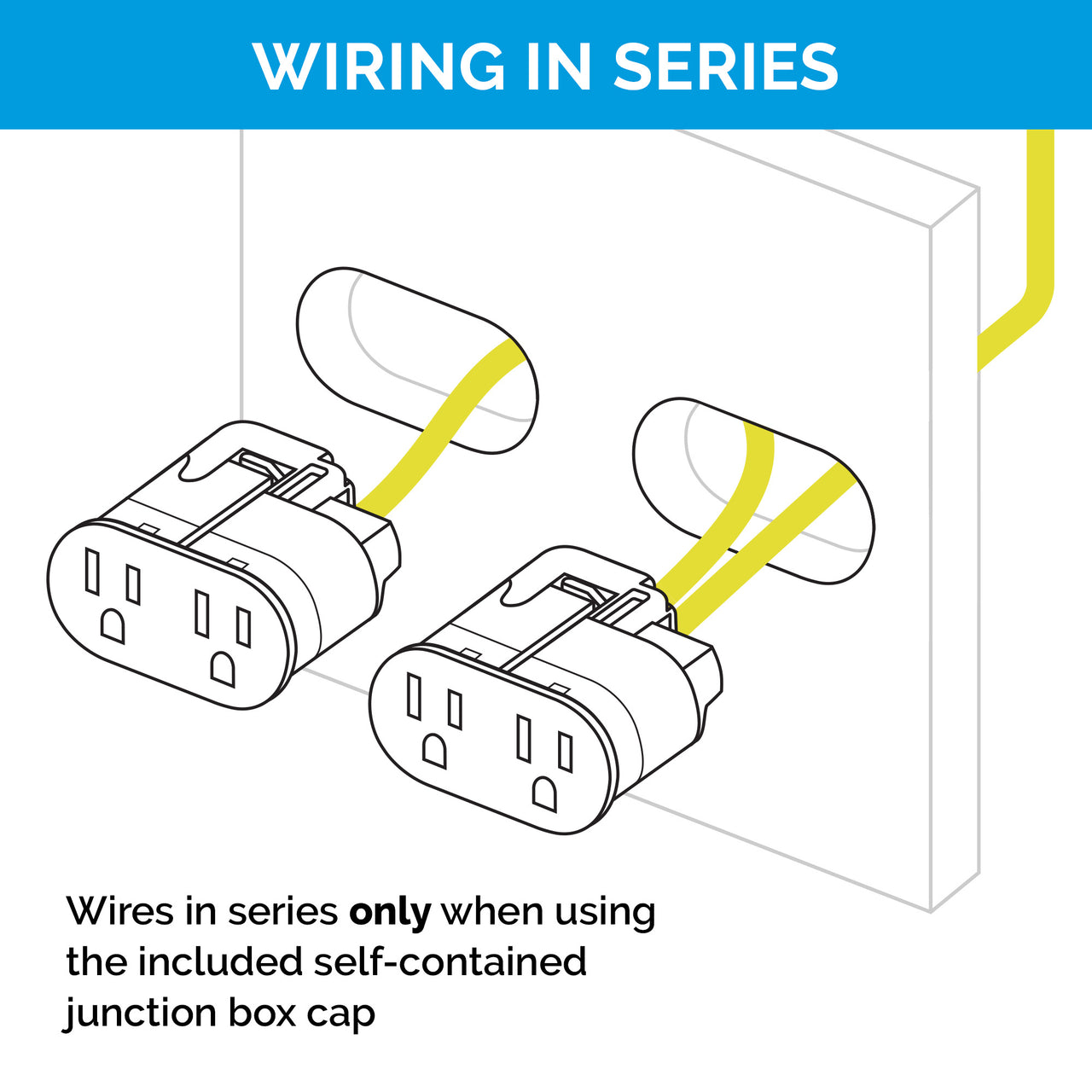

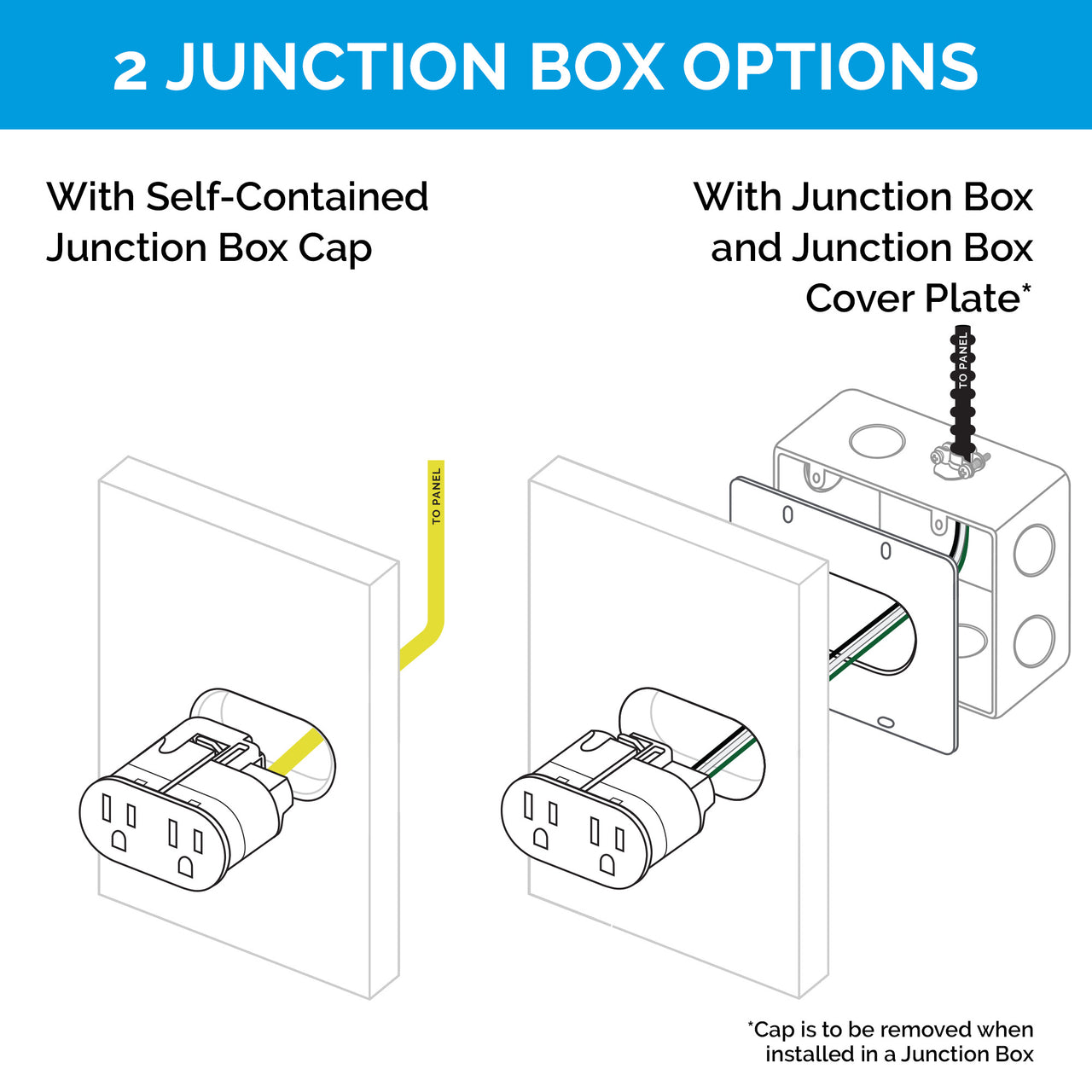

- Included self-contained cap, optimized for Romex cable, eliminates the need for a junction box. The cap also allows daisy chaining, connecting multiple outlets in sequence for greater flexibility and efficiency.
- If using a junction box, a junction box cover plate must be used.

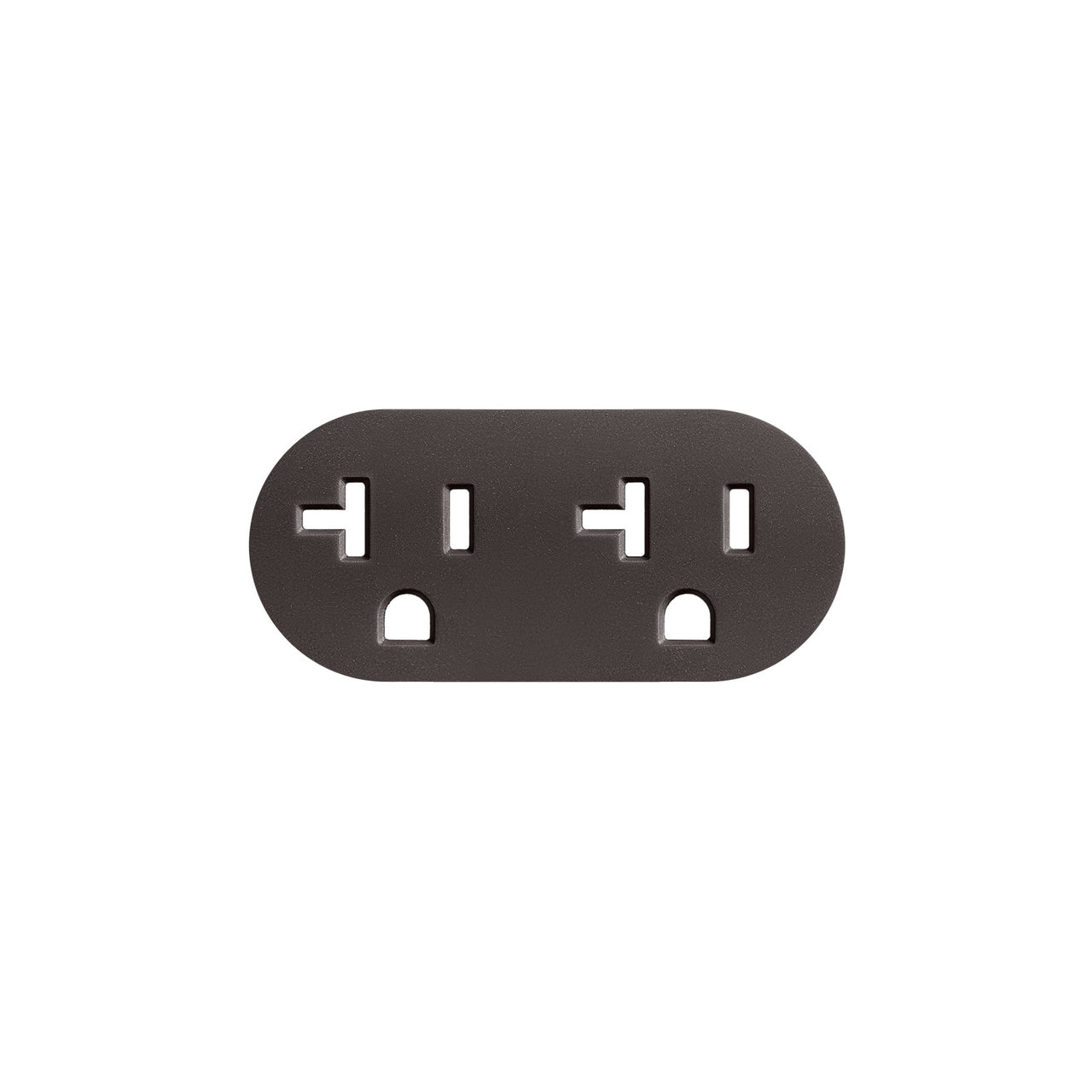

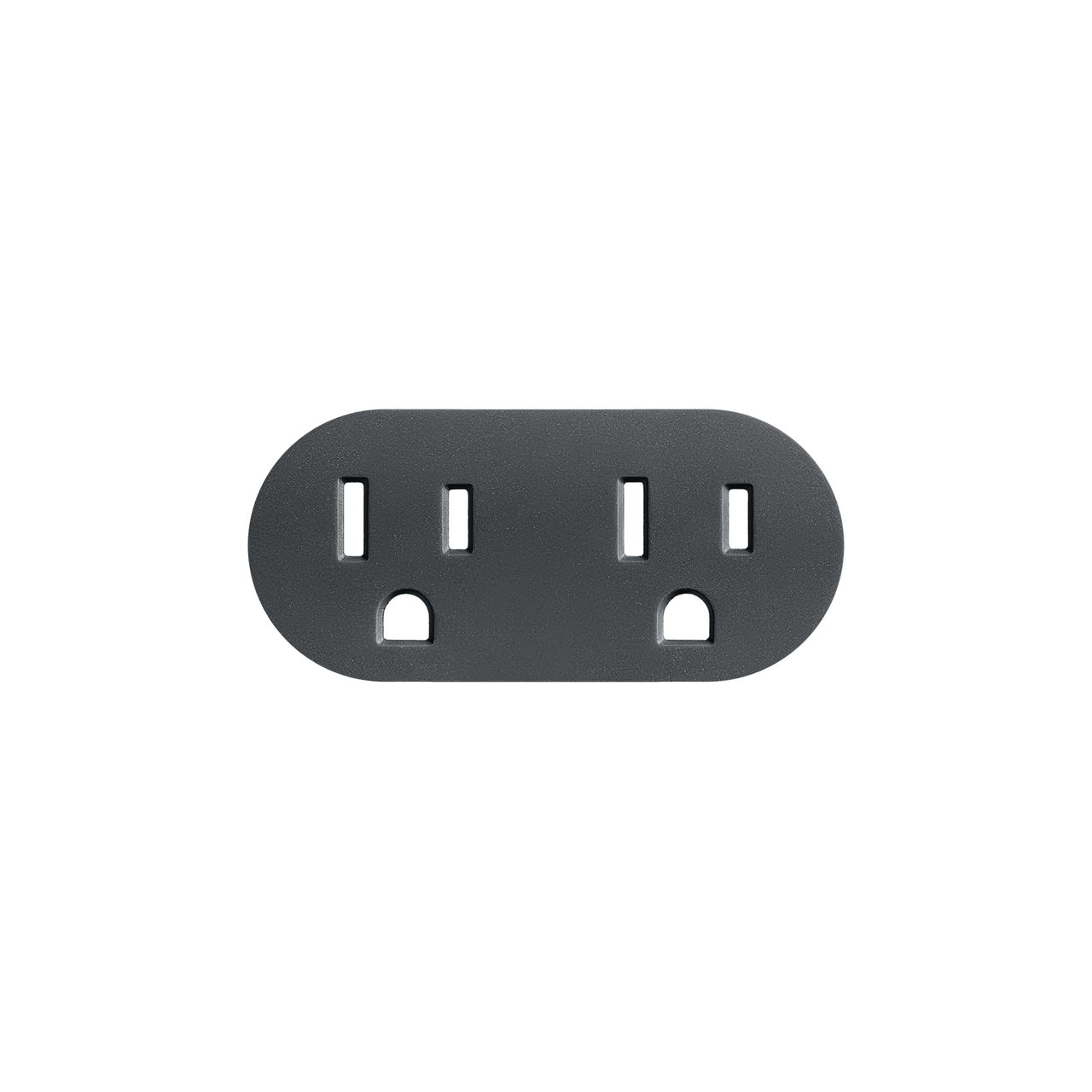

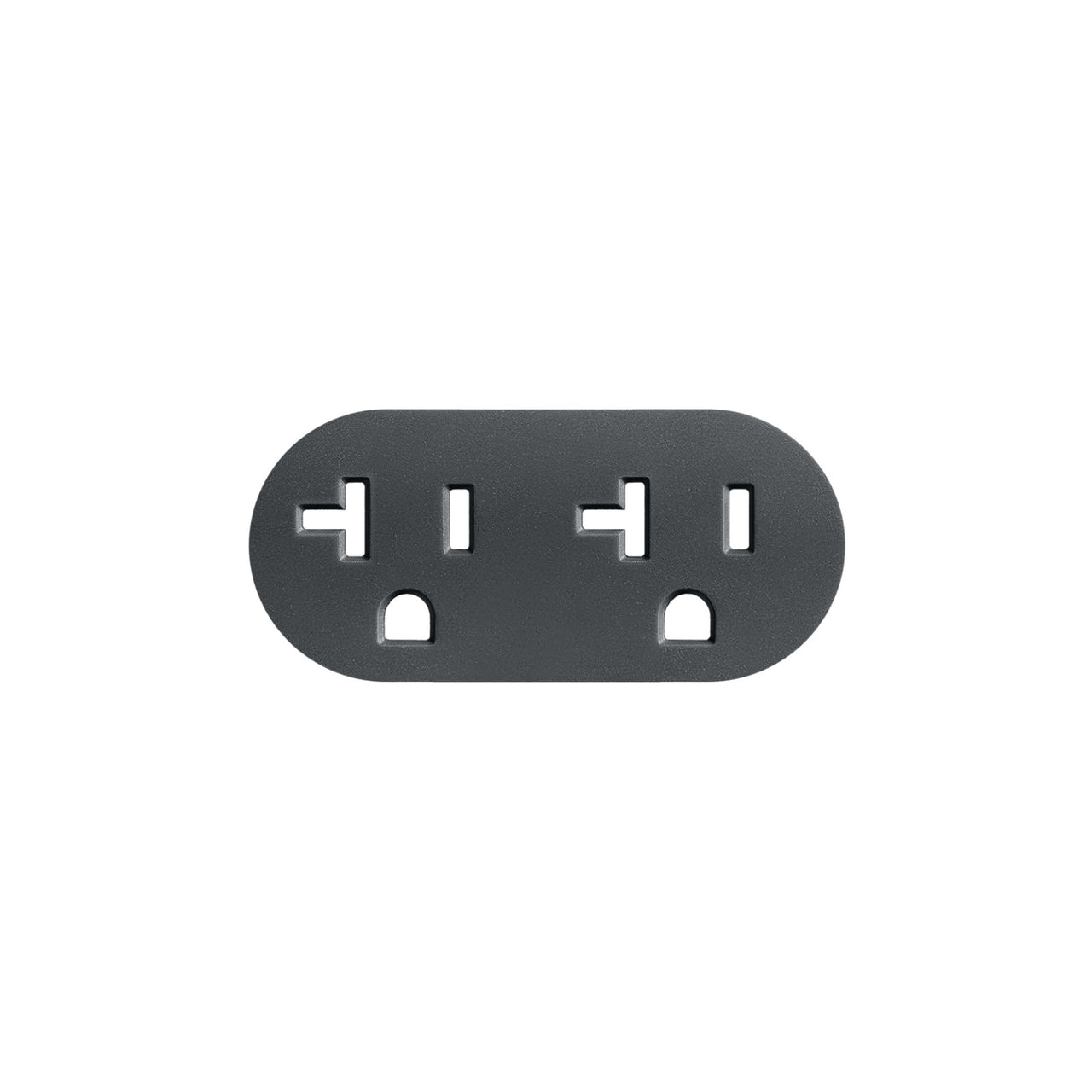

Cover Plate
- Cover plate is required for all installations.
- Available finishes: White, Black, Sand, Clay, Espresso, and Graphite
- All cover plates are paintable. Email sales@dockingdrawer.com to get the step by step guide on how to paint your Prado Unifit outlets.
- Custom RAL colors are also available for orders of 100+ outlets.

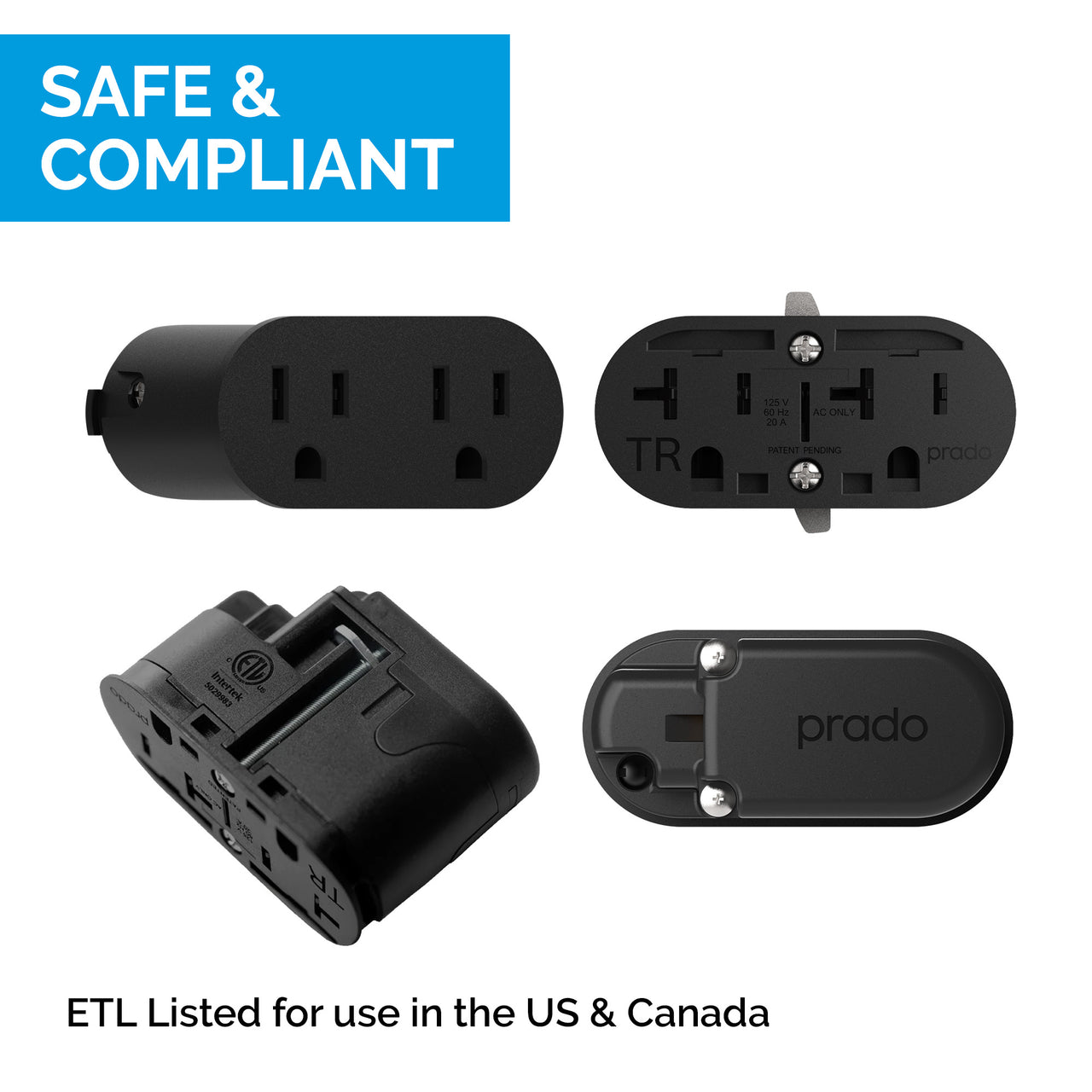

Electrical Certification
- ETL Listed for use in the US & Canada
- Certified to UL 498 and CSA C22.2 No. 42
- Horizontal Installations are not IP44 (Water) or IP54 (Dust) Rated
Tamper Resistant
- Yes
