NEC-Compliant Safety for Modern Kitchens
Electrical standards for flush-mount outlets are strict for a reason. This unit is the first of its kind to meet the UL 498 half-gallon spill test and fully satisfy 2023 NEC 406.5(E) requirements. Designed for high-moisture environments, this waterproof countertop outlet is tamper-resistant and installs onto GFCI-protected circuits, providing a tough layer of defense against accidental spills and kitchen messes.
Minimalist Design & High-Performance Power
Eliminate visual clutter with the industry’s most compact countertop outlet. Designed to sit nearly flush with your stone or butcher block, this outlet is available in 15 amp and 20 amp configurations to handle everything from tech devices to stand mixers and kitchen appliances. While the outlet comes in white or black finishes, you can further customize the aesthetic with optional metallic lids in white, black, stainless steel, or champagne bronze to match your kitchen aesthetic.
Fast Installation with Standard Tools

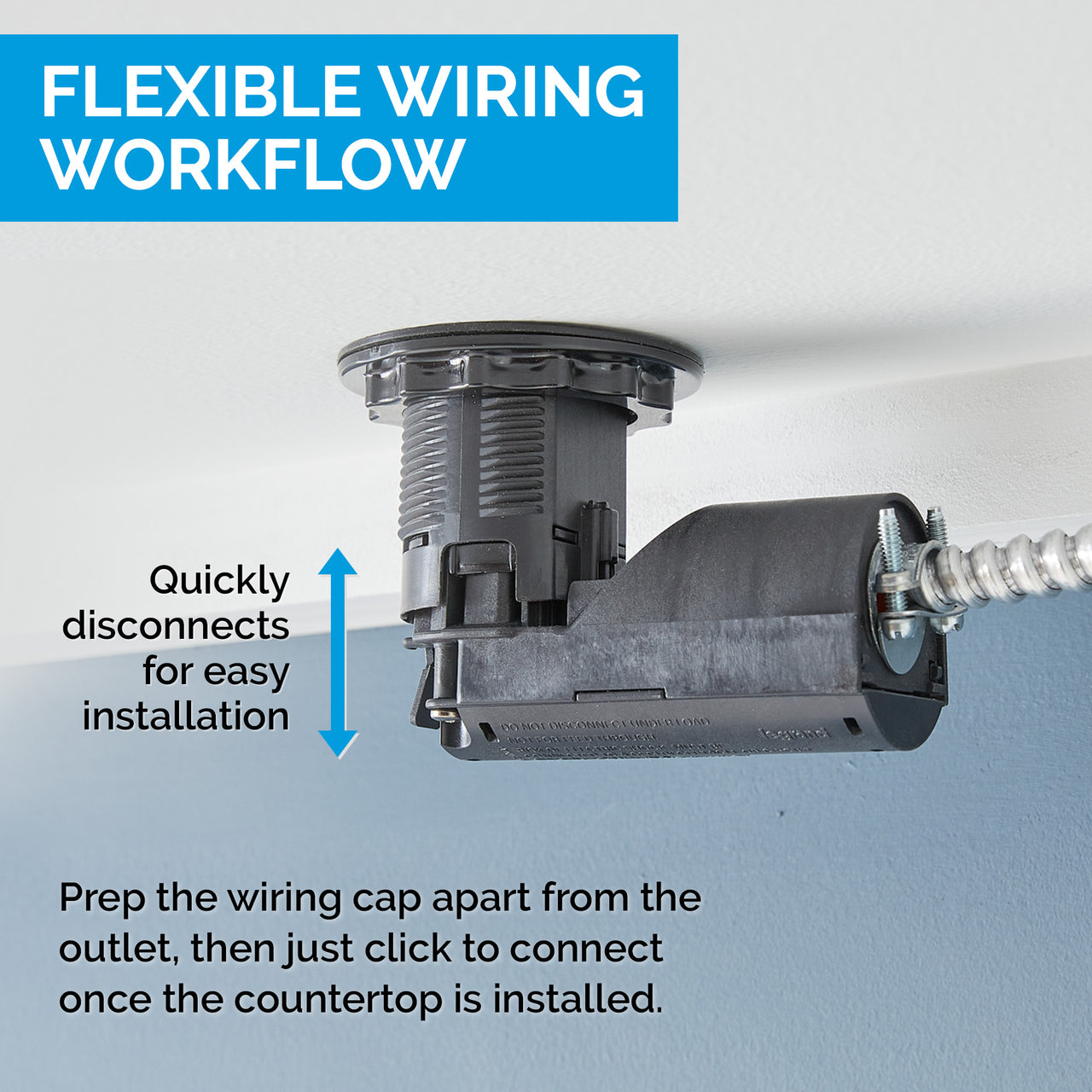

The installation process saves time for both contractors and homeowners. The unit features an innovative self-contained junction box with quick-connect terminals, allowing for all hardwiring to be performed above the countertop. Once wired, the assembly drops into a standard 2" cutout (flush-mount) or 2.25" cutout (surface-mount)and is secured by a manual locking nut. No complex tools or specialized hardware are required for a rock-solid fit.
Industrial-Grade Durability
Unlike pop-up towers that rely on motorized parts prone to mechanical failure, this fixed-position outlet is built for longevity. Constructed from chemical-resistant, heavy-duty polymers, the surface is designed to withstand daily scrubbing and exposure to kitchen cleaners. The smooth, seamless face ensures that flour, liquids, and debris can be wiped away instantly, maintaining the professional look of your high-traffic prep zones.
15 amp Legrand Countertop Outlet Specs
Outlet Dimensions
- Top Diameter: 2.29” [58.2mm]
- Top Thickness: .07” [1.65mm]
- Available Space for Countertop: 0.5 - 1.6"
- Locking Nut Diameter: 2.91" [73.8mm]
- Total Height: 3.65” [92.6mm]
- Total Length: 4.74” [120.5mm]
Electrical Specs
- Outlet Configuration: 1 AC
- AC Current / Amperage Rating: 15 amp
- AC Voltage Rating: 125V
- NEMA Configuration: 5-15R
- Tamper Resistant: Yes
- Wire Size: #14 – #10 AWG
- Connection Type: Back Wired (Screw Terminals on Tail)
- 1-Year Limited Warranty
20 amp Legrand Countertop Outlet Specs
Outlet Dimensions
- Top Diameter: 2.29” [58.2mm]
- Top Thickness: .07” [1.65mm]
- Available Space for Countertop: 0.5 - 1.6"
- Locking Nut Diameter: 2.91" [73.8mm]
- Total Height: 3.65” [92.6mm]
- Total Length: 4.74” [120.5mm]
Electrical Specs
- Outlet Configuration: 1 AC
- AC Current / Amperage Rating: 20 amp
- AC Voltage Rating: 125V
- NEMA Configuration: 5-20R
- Tamper Resistant: Yes
- Wire Size: #14 – #10 AWG
- Connection Type: Back Wired (Screw Terminals on Tail)
- 1-Year Limited Warranty
Outlet Cut Out Size
- Surface Mount: 2” [50.8mm] round cut out
- Flush Mount: 2” [50.8mm] round cut out with 2.3" diameter counterbore at .07" deep
Electrical Certification
- Conforms to UL STD. 498; Certified to CSA C22.2 No. 42
- Countertop Rated: UL 498 Section 146 compliant for Countertop or Work Surface Assembly
- Spill-Proof: Passed the UL half-gallon spill test (maintains dielectric integrity after liquid exposure)
- Fully compliant with NEC 2023 406.5(E) for kitchen islands and peninsulas

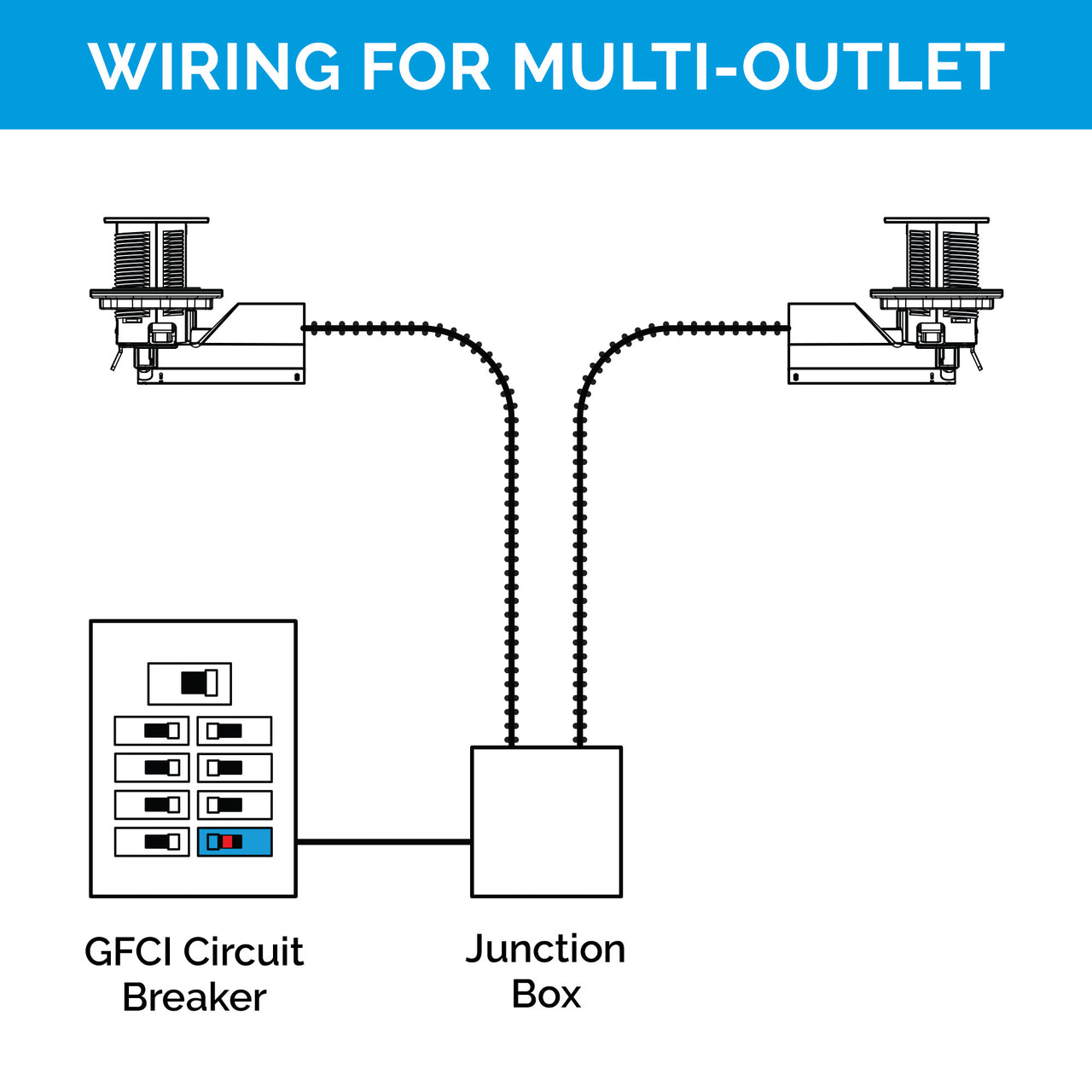

- Must be installed on a GFCI-protected circuit.
