Counterbore Duplex Jig Template for Prado Unifit Duplex Outlets | DXF Download

$10.00

Counterbore Duplex Jig Template for Prado Unifit Duplex Outlets | DXF Download

SKU: 2015-8000
$10.00

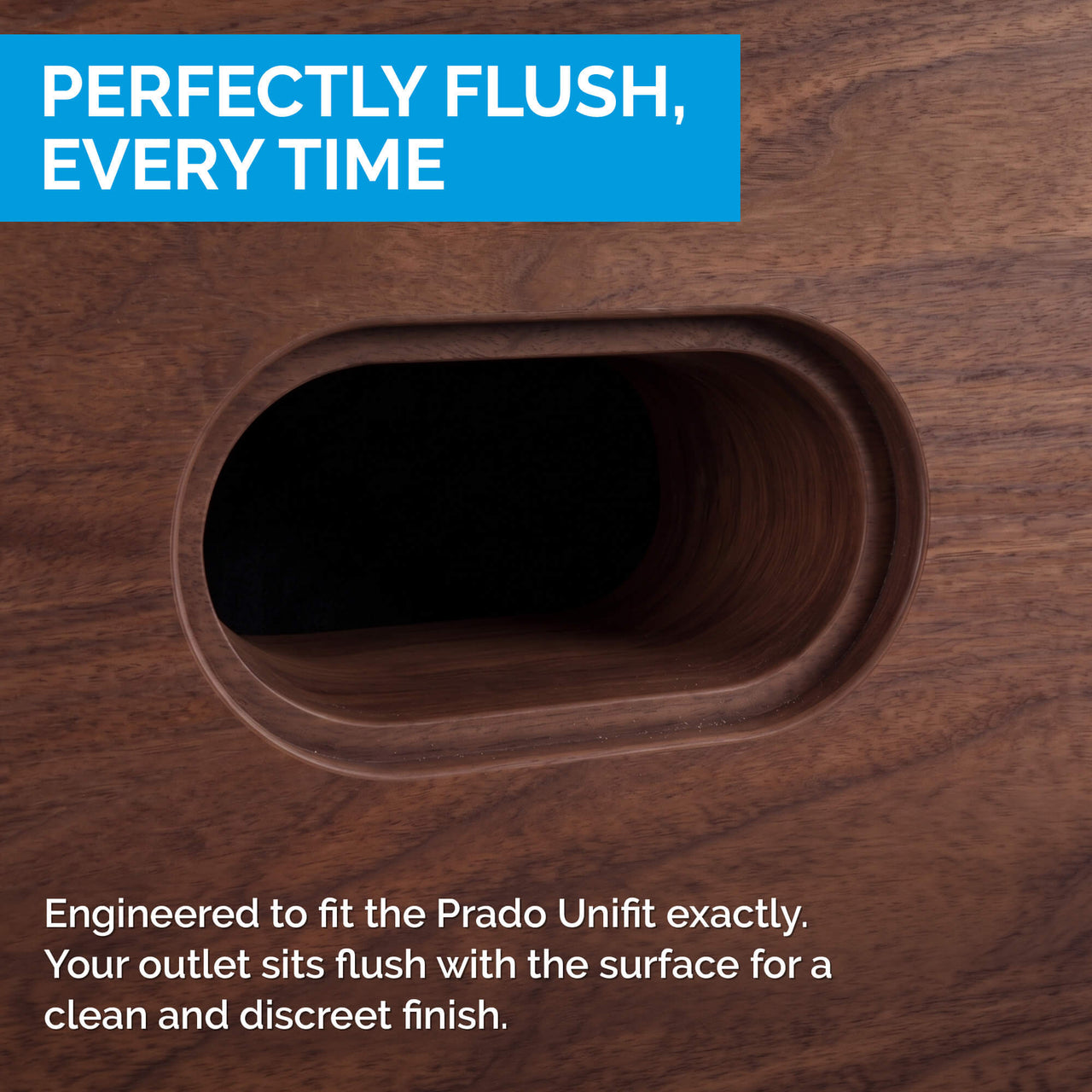

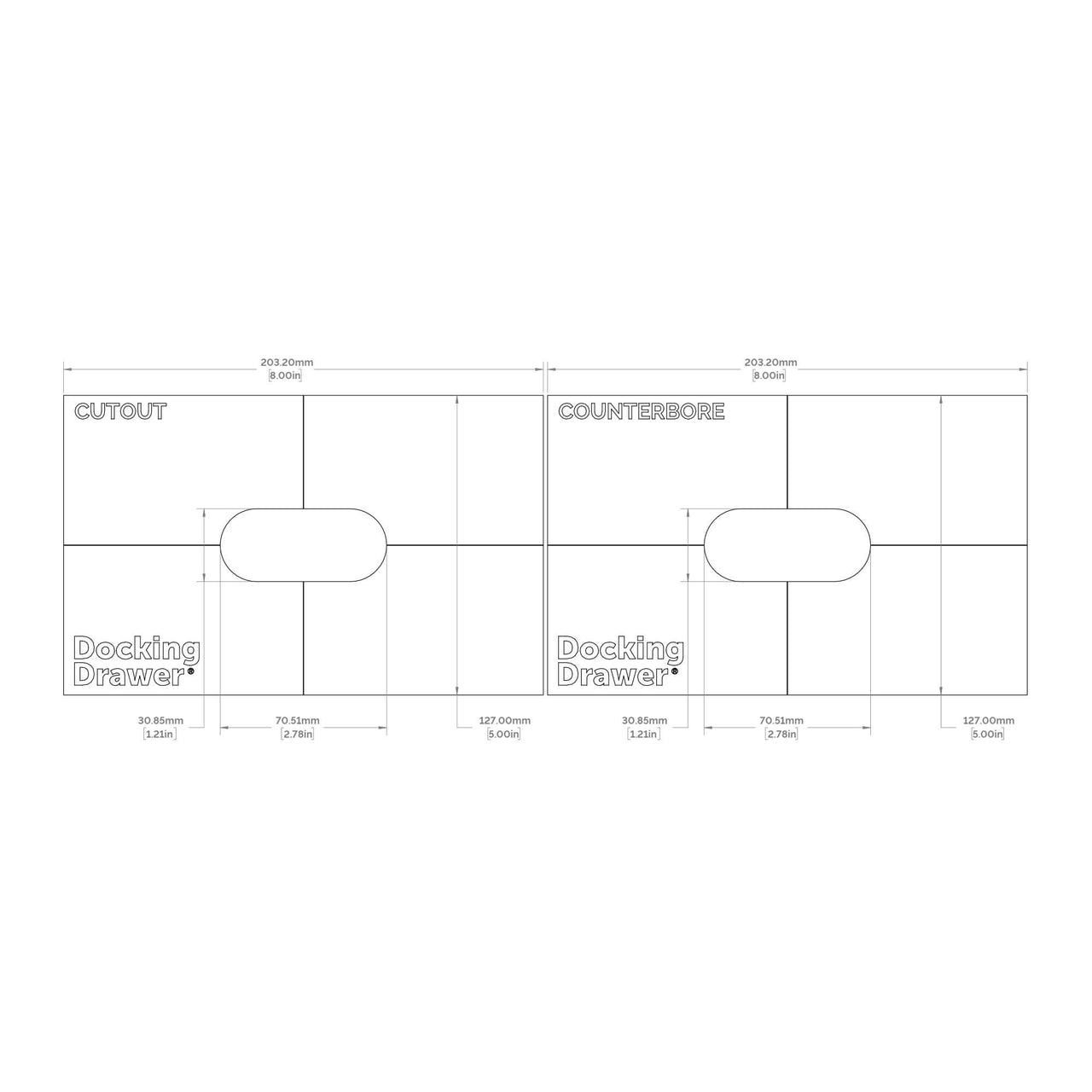

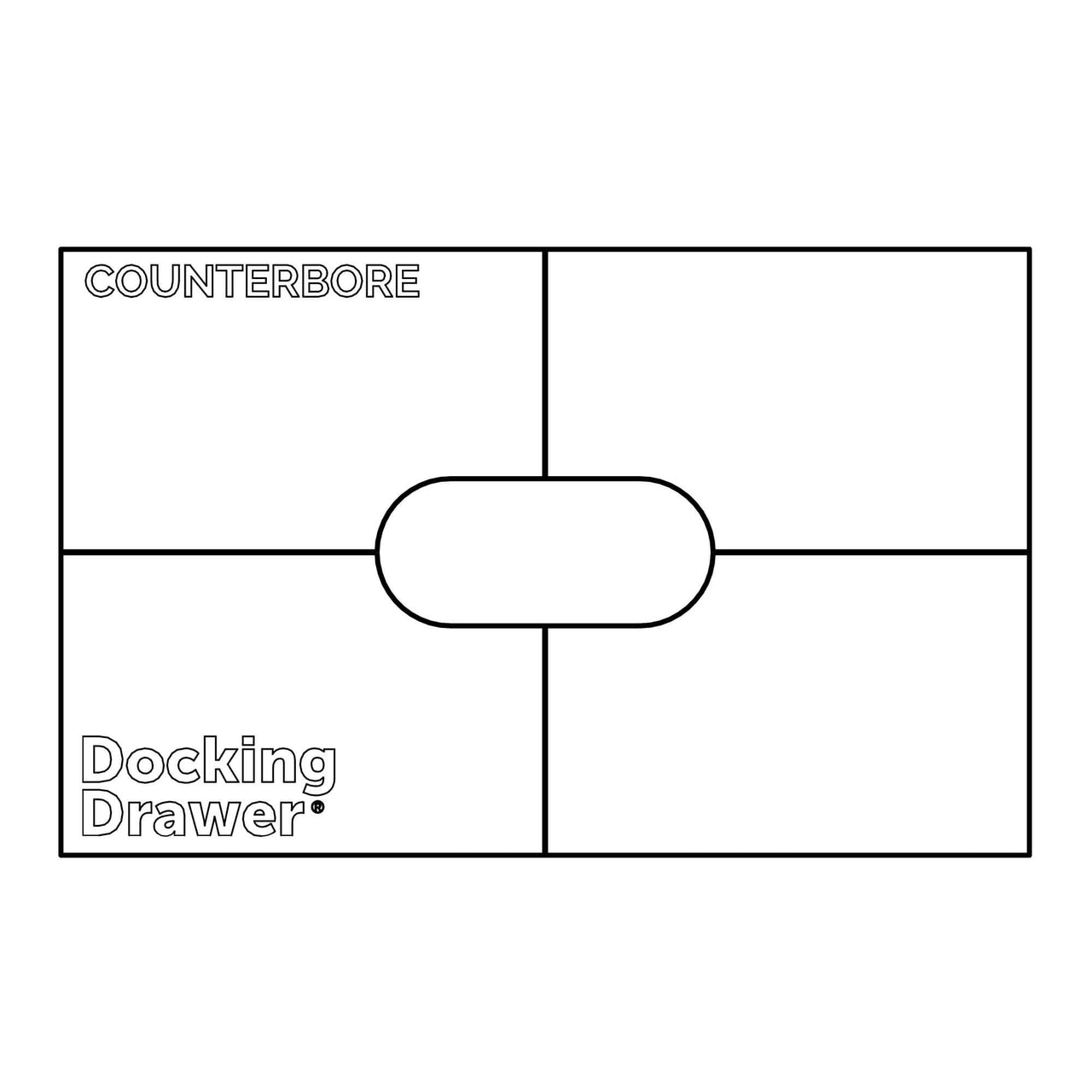

Flush mounting a Prado Unifit Duplex outlet requires a precise counterbore. This DXF template provides exact geometry in inches and millimeters so you can 3D print or cut your own routing jig.

Designed for use with a top-bearing flush-cut router bit:
  • 1" cut depth for the main cutout
  • 1/4" cut depth for the counterbore

Digital download only. No physical template will be shipped. Your download link will be available immediately after purchase. Digital downloads are non returnable.
