Safety Interlock Outlet with Magnetic Limit Switch
Outlet Configuration
Limit Switch State












Powers and Protects One Small Appliance
Specifically designed to energize and protect a single small appliance, this system makes it safer to power toasters, coffee makers, or similar devices in a kitchen appliance garage.
Works with All Door Types
Regardless of your cabinet door style—hinged, pocket, lift, or tambour—the magnetic limit switch integrates easily into any appliance garage setup. Engineered for broad compatibility, installation is simple and adaptable to any project.
Sleek, Hidden Integration
Achieve a refined, clutter-free appearance with the option to recess the limit switch directly into the appliance garage door. The minimalist design keeps the switch out of sight, preserving the clean lines of your cabinetry.
Automatic Power Shutoff
Safety is guaranteed: the magnetic limit switch instantly disconnects power to the outlet when the cabinet door is closed. This automated cutoff ensures your appliance is always powered down inside an enclosed space.
Certified for US Installations
ETL Listed for the US and Canada, this product is built to meet rigorous safety standards and make it safer to keep a single appliance connected inside the cabinet.
15 amp Outlet Specs
- Input: 100 - 125 VAC, 50/60 Hz
- AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
- DC Output: 24VDC @ 100mA MAX
- DC Power Supply: IEC Class II
- Number of Receptacles: (1) NEMA 5-15R
- Tamper Resistant: Yes
- LED Indicator: Yes
- Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
- Environmental: -10C to +50C, non condensing
- Warranty: 2 Years
20 amp Outlet Specs
- Input: 100 - 125 VAC, 50/60 Hz
- AC Output: 20A@125VAC, 2500 VA MAX, 1/2 HP
- DC Output: 24VDC @ 100mA MAX
- DC Power Supply: IEC Class II
- Number of Receptacles: (1) NEMA 5-20R
- Tamper Resistant: Yes
- LED Indicator: Yes
- Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
- Environmental: -10C to +50C, non condensing
- Warranty: 2 Years

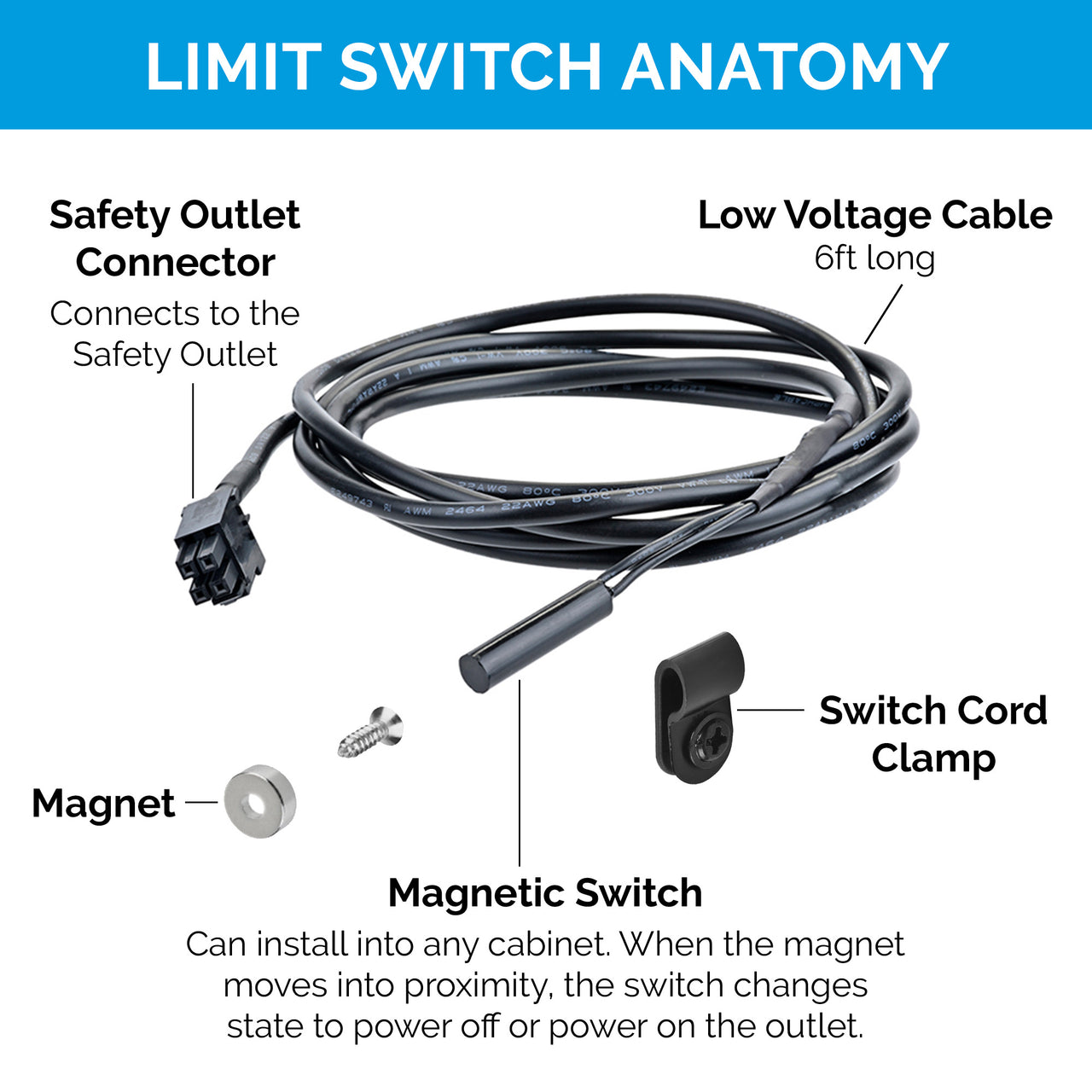

Limit Switch Specs
- Type of Limit Switch: Magnetic Limit Switch
- Limit Switch Cable: 6 ft 24 VDC low voltage cable
- Switch Length: 1.06" (27mm)
- Switch Diameter: 0.25" (6.5mm)
- Magnet Width: 0.12" (3.2mm)
- Magnet Diameter: 0.37" (9.5mm)
- Mounting Details: Can be installed in any cabinet or enclosed space using one of the following methods: surface mounted with the included clamp and screw, or inset mounted directly into the cabinet.
- Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
- Warranty: 2 Years
