Safety Interlock Outlet with Magnetic Switch

$88.00

Safety Outlet Configuration

Switch Activation

Safety Interlock Outlet with Magnetic Switch

$88.00
SKU: 6015-2002B
Help Me Choose

This innovative solution is crafted to power and safeguard a single small appliance, fitting smoothly into any electrical system and working with all appliance garage door types—hinged, pocket, lift, or tambour. Designed to add an extra layer of safety to powered appliance garages, this system automatically cuts power when the door is closed.

Have more than one door? Easily add more switches to support your layout.

Powers and Protects One Small Appliance

Specifically designed to energize and protect a single small appliance, this system makes it safer to power toasters, coffee makers, or similar devices in a kitchen appliance garage.

Works with All Door Types

Regardless of your cabinet door style—hinged, pocket, lift, or tambour—the magnetic switch integrates easily into any appliance garage setup. Engineered for broad compatibility, installation is simple and adaptable to any project.

Sleek, Hidden Integration

Achieve a refined, clutter-free appearance with the option to recess the switch directly into the appliance garage door. The minimalist design keeps the switch out of sight, preserving the clean lines of your cabinetry.

Automatic Power Shutoff

Safety is guaranteed: the magnetic switch instantly disconnects power to the outlet when the cabinet door is closed. This automated cutoff ensures your appliance is always powered down inside an enclosed space.

Multi-Door Ready. Multi-Switch Smart.

Designing a double-door appliance garage or a custom cabinet layout? Docking Drawer easily adapts. Add additional switches to manage multiple doors with ease, ensuring power flows only when every door is in the required position. From straightforward installs to complex custom configurations, this system supports your specific design requirements.

Certified for US Installations

ETL Listed for the US and Canada, this product is built to meet rigorous safety standards and make it safer to keep a single appliance connected inside the cabinet.

15 amp Outlet Specs

  • Input: 100 - 125 VAC, 50/60 Hz
  • AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
  • DC Output: 24VDC @ 100mA MAX
  • DC Power Supply: IEC Class II
  • Number of Receptacles: (1) NEMA 5-15R
  • Tamper Resistant: Yes
  • LED Indicator: Yes
  • Environmental: -10C to +50C, non condensing
  • Warranty: 2 Years

20 amp Outlet Specs

  • Input: 100 - 125 VAC, 50/60 Hz
  • AC Output: 20A@125VAC, 2500 VA MAX, 1/2 HP
  • DC Output: 24VDC @ 100mA MAX
  • DC Power Supply: IEC Class II
  • Number of Receptacles: (1) NEMA 5-20R
  • Tamper Resistant: Yes
  • LED Indicator: Yes
  • Environmental: -10C to +50C, non condensing
  • Warranty: 2 Years

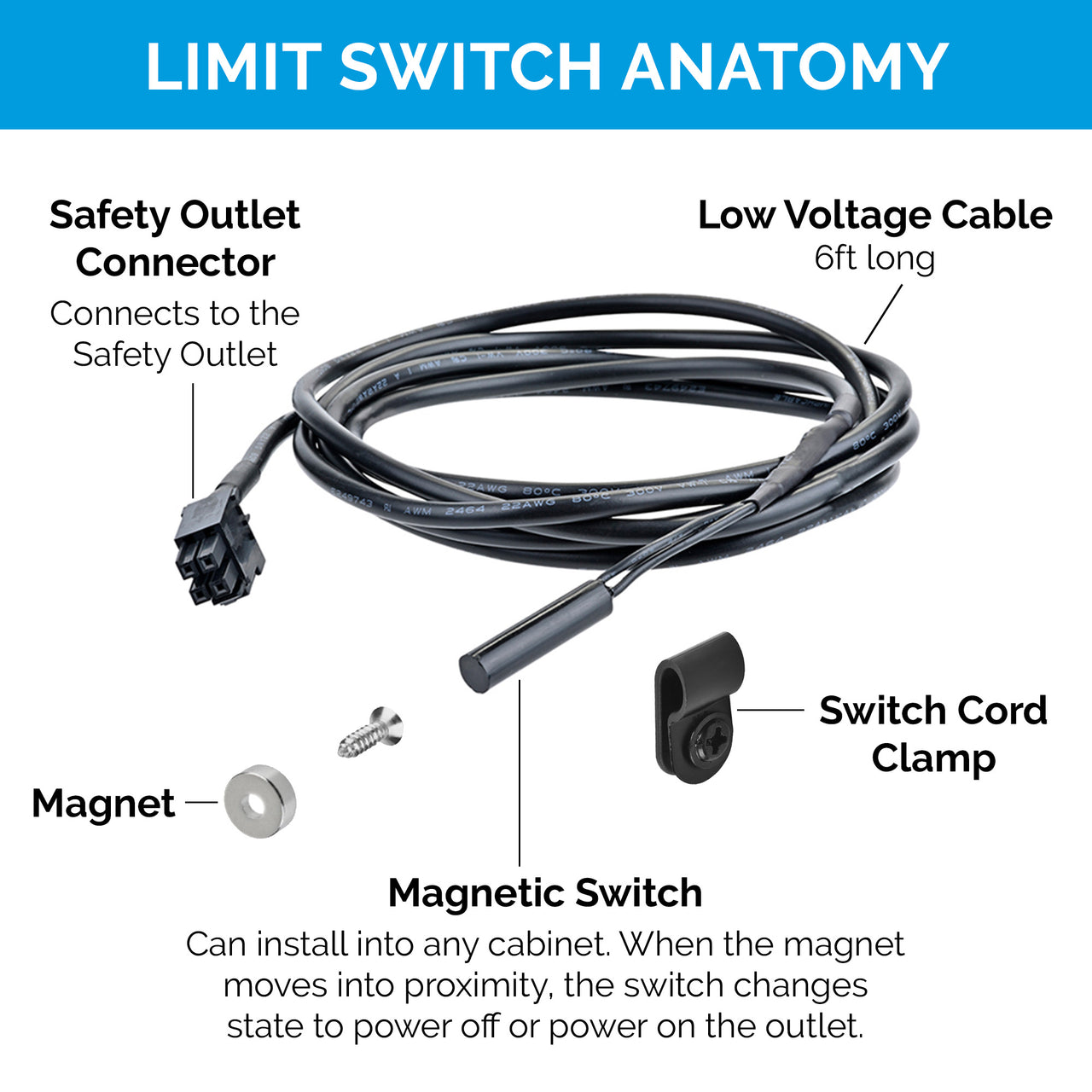

Switch Specs

  • Type of Switch: Magnetic Switch
  • Switch Cable: 6 ft 24 VDC low voltage cable
  • Switch Length: 1.06" (27mm)
  • Switch Diameter: 0.25" (6.5mm)
  • Magnet Width: 0.12" (3.2mm)
  • Magnet Diameter: 0.37" (9.5mm)
  • Mounting Details: Can be installed in any cabinet or enclosed space using one of the following methods: surface mounted with the included clamp and screw, or inset mounted directly into the cabinet.
  • Warranty: 2 Years

Electrical Certification

  • ETL Listed for use in the US & Canada
  • Certified to UL 498 and CSA C22.2 No. 42
